Overall Sequence

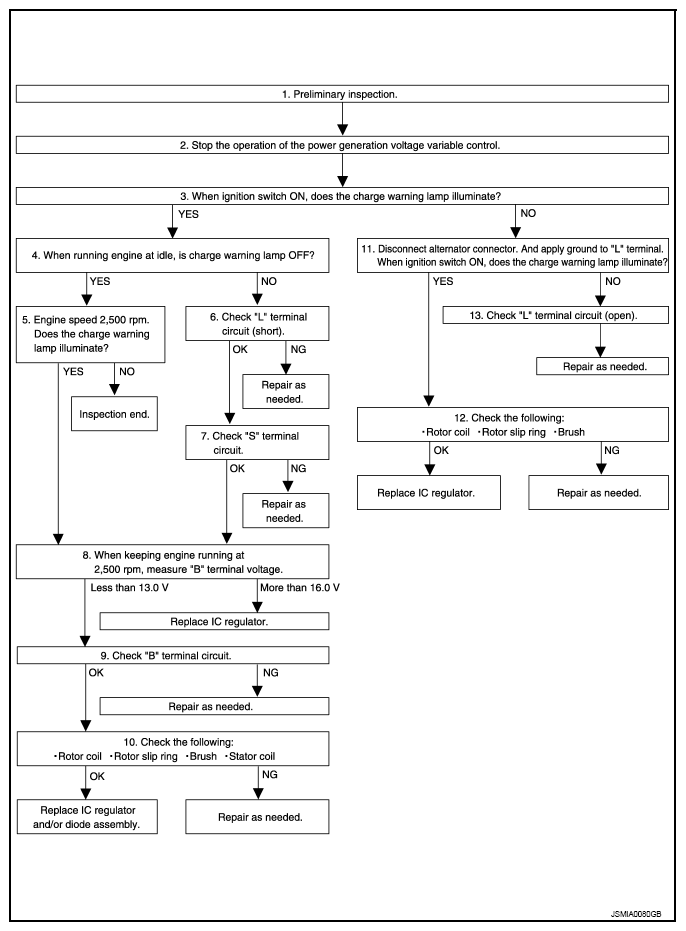

Fig 1: Diagnosis And Repair Work Flow Chart (Without EXP-800 NI Or GR8-1200 NI)

Courtesy of NISSAN NORTH AMERICA, INC.
