Exploded View

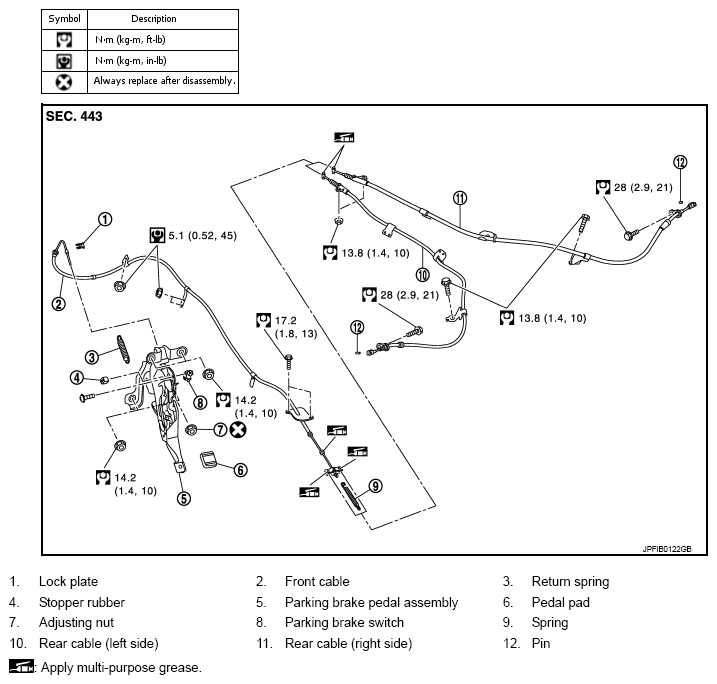

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications
G08897811Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
