Exploded View

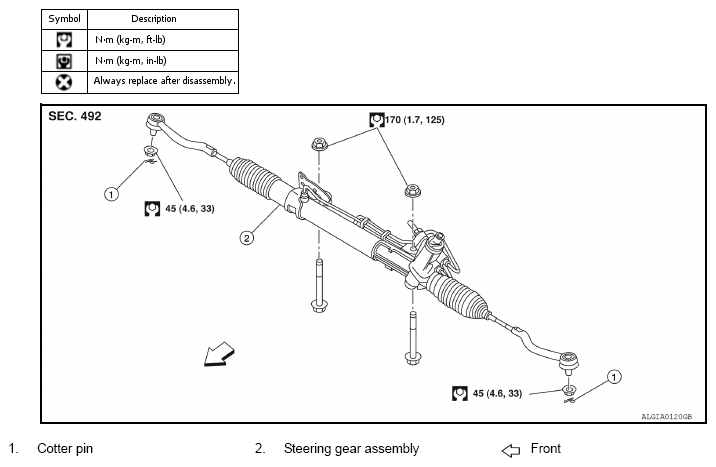

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
G08856638Courtesy of NISSAN NORTH AMERICA, INC.
