CONSULT Function and System Application

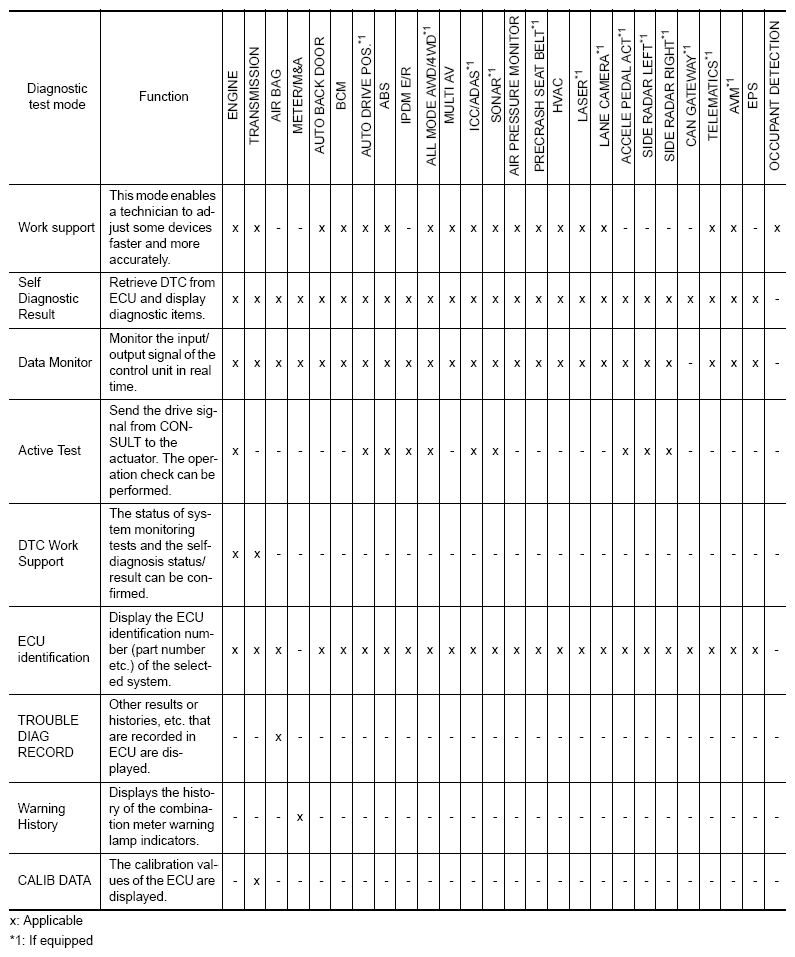

Fig 1: CONSULT Function And System Application Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
