Exploded View

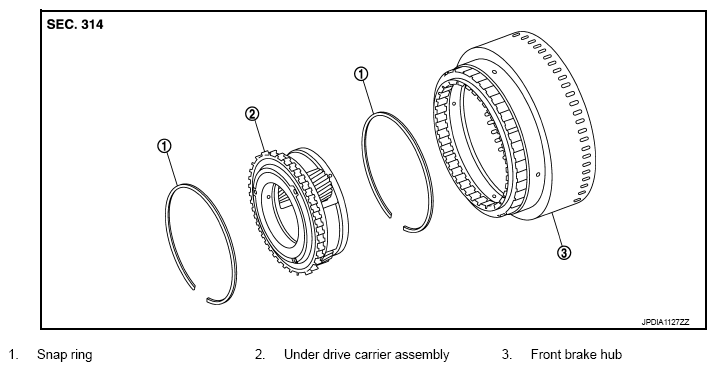

Fig 1: Exploded View Of Front Brake Hub Under Drive Carrier
G08740452Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
