Component Parts Location

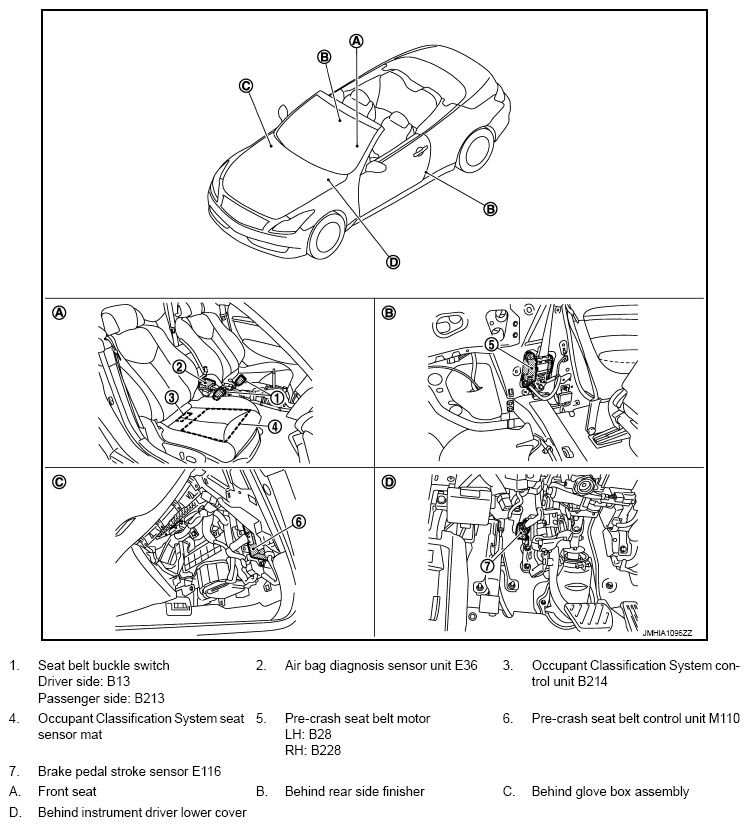

Fig 1: Identifying Pre-Crash Seat Belt System Components Location
G08740526Courtesy of NISSAN NORTH AMERICA, INC.
