Home >> Infiniti >> 2013 >> G37 Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> SRS Airbag Control System (Convertible) >> System Description >> SRS Air Bag System >> Component Parts Location
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Component Parts Location

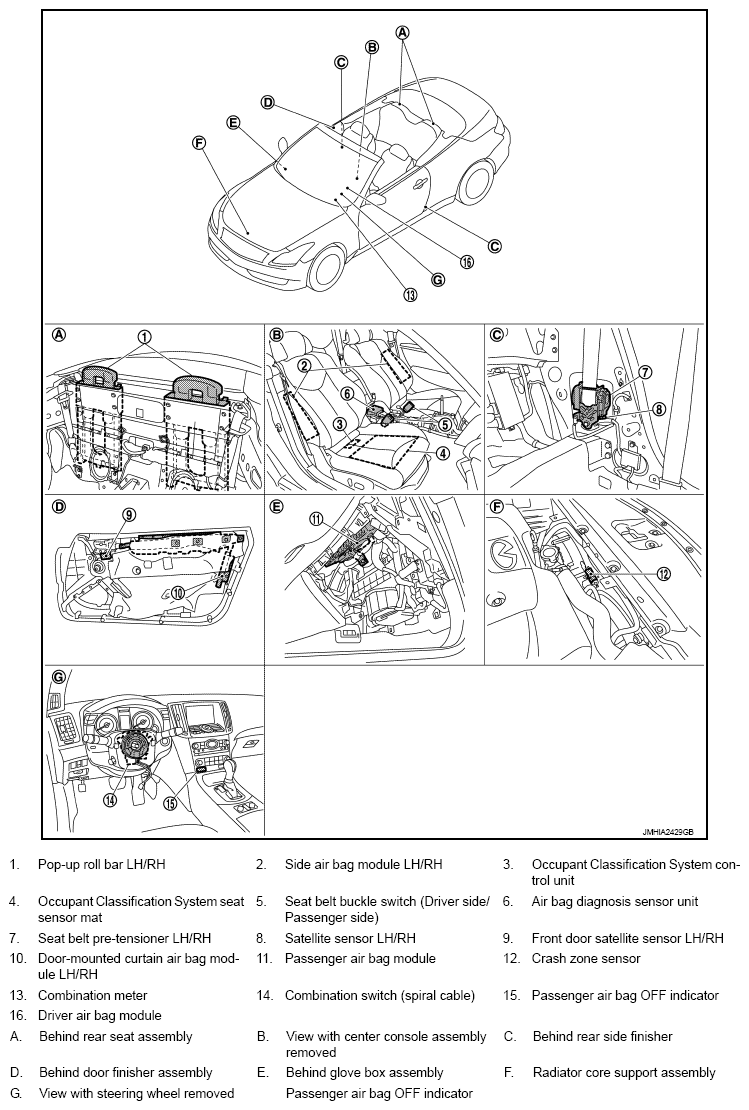

Fig 1: Identifying SRS Air Bag System Components Location
G08737000Courtesy of NISSAN NORTH AMERICA, INC.
