Wiring Diagram - CONSULT/GST CHECKING SYSTEM

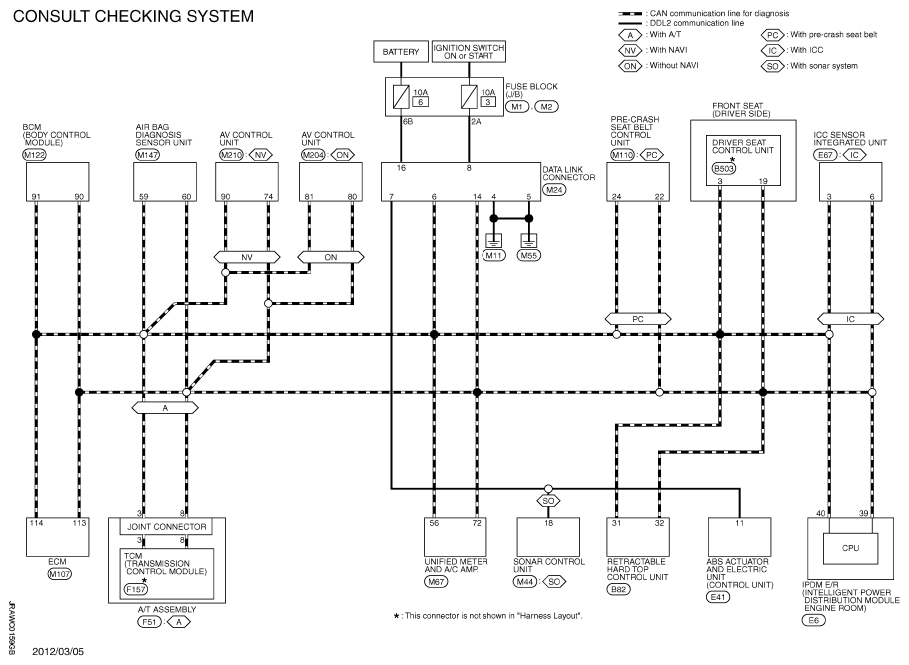

Fig 1: CONSULT Checking System Wiring Diagram
G08739195Courtesy of NISSAN NORTH AMERICA, INC.
