Exploded View

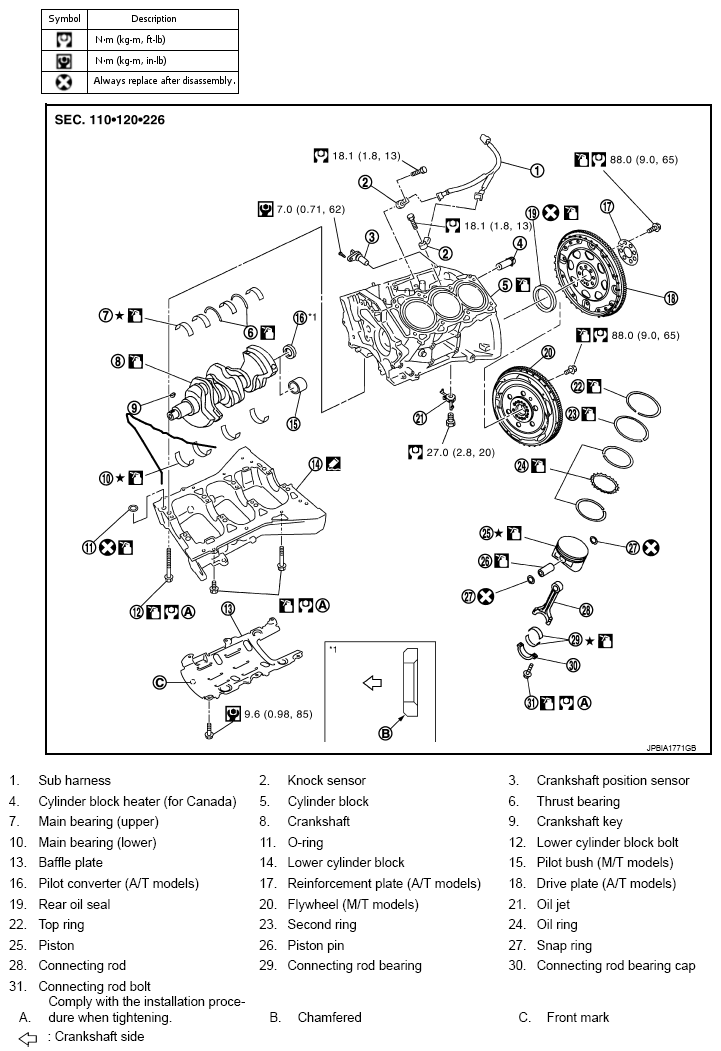

Fig 1: Exploded View Of Cylinder Block With Torque Specifications
G08739439Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
