Disassembly and Assembly: Assembly

CAUTION: Do not reuse washers.

Install timing chain tensioners (secondary) (1) on both sides of cylinder head.

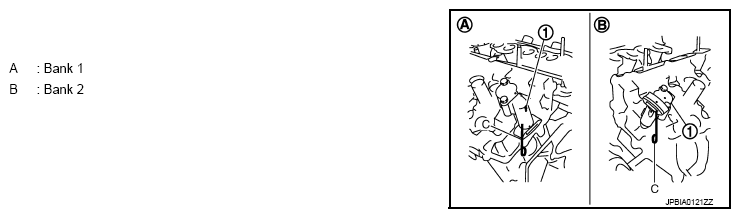

Fig 1: Installing Timing Chain Tensioners (Secondary) On Cylinder Head
Courtesy of NISSAN NORTH AMERICA, INC.
- Install timing chain tensioner with its stopper pin (C) attached.
- Install timing chain tensioner with sliding part facing downward on cylinder head (bank 1), and with sliding part facing upward on cylinder head (bank 2).
Install oil filter (1), if removed.
- Do not project from the cylinder head (2) surface.

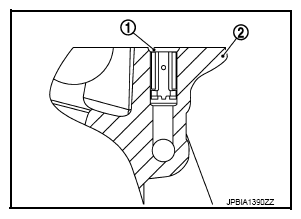

  Fig 2: Locating Cylinder Head And Oil Filter
  Courtesy of NISSAN NORTH AMERICA, INC.
Install valve lifter.
- Install it in the original position.

Install camshaft (EXH).

Distinction between camshaft (EXH) (bank 1 and bank 2) is performed with the identification mark.

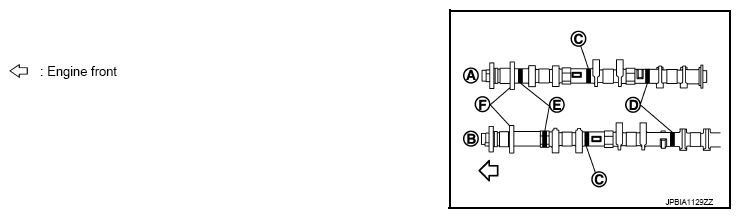

Fig 3: Locating Identification And Paint Marks On Exhaust Camshaft
Courtesy of NISSAN NORTH AMERICA, INC.

Bank	Paint marks			Identification mark (F)
Bank	M1 (C)	M2 (D)	M3 (E)	Identification mark (F)
Bank 1 (A)	No	Blue	Light blue	1 N
Bank 2 (B)	No	Blue	Light blue	1 P

Install VVEL ladder assembly as follows:
1. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the cylinder head as shown in the figure below.

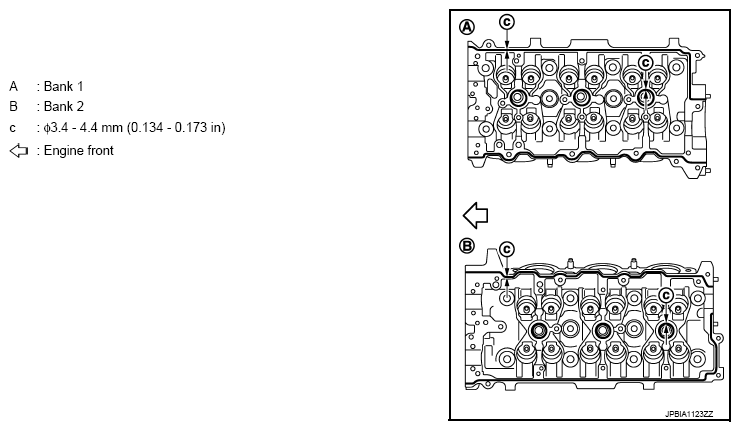

  Fig 4: Identifying Continuous Bead Application Areas On Cylinder Head
  Courtesy of NISSAN NORTH AMERICA, INC.

  Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
2. Tighten mounting bolts in the following step, in numerical order as shown in the figure below.

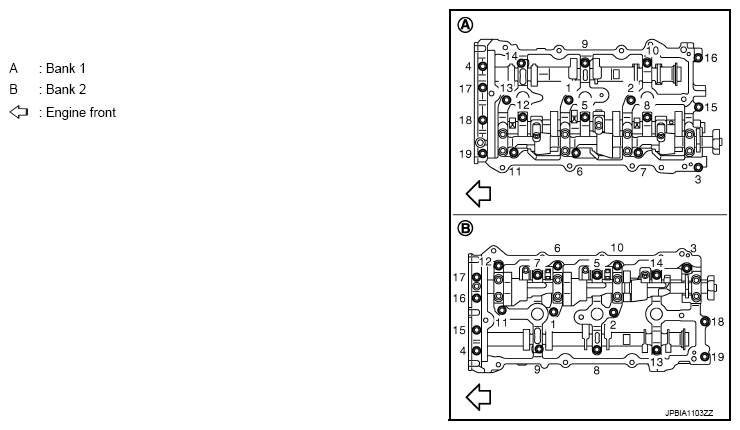

  Fig 5: Locating VVEL Ladder Assembly Mounting Bolts With Tightening Sequence
  Courtesy of NISSAN NORTH AMERICA, INC.
  1. Tighten bolts in numerical order as shown in the figure below.
    CAUTION: Do not reuse washers.

    Torque Value: 1.96 N.m (0.20 kg-m, 1 ft-lb)
  2. Tighten bolts in numerical order as shown in the figure below.
    Torque Value: 5.88 N.m (0.60 kg-m, 4 ft-lb)
  3. Tighten bolts in numerical order as shown in the figure below.
    Torque Value: 10.4 N.m (1.1 kg-m, 8 ft-lb)
Measure difference in levels between front end faces of VVEL ladder assembly and cylinder head.
Standard: -0.14 to 0.14 mm (-0.0055 to 0.0055 in)
- Measure two positions (both intake and exhaust side) for a single bank.
- If the measured value is out of the standard, reinstall VVEL ladder assembly.

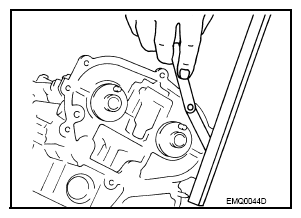

  Fig 6: Measuring Difference In Levels Between Front End Faces Of VVEL Ladder Assembly And Cylinder Head
  Courtesy of NISSAN NORTH AMERICA, INC.
Install rear timing chain case. Refer to "EXPLODED VIEW ".
Install camshaft sprockets and timing chains. Refer to "EXPLODED VIEW ".
Install actuator bracket (rear) as follows:
1. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the actuator bracket (rear) as shown in the figure below.

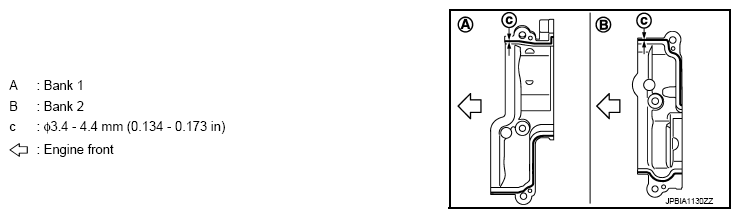

  Fig 7: Identifying Continuous Bead Application Area On Rear Actuator Bracket
  Courtesy of NISSAN NORTH AMERICA, INC.

  Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

  CAUTION: Never apply gasket to the oil passage.
2. Tighten mounting bolts in the following steps, in numerical order as shown in the figure below.

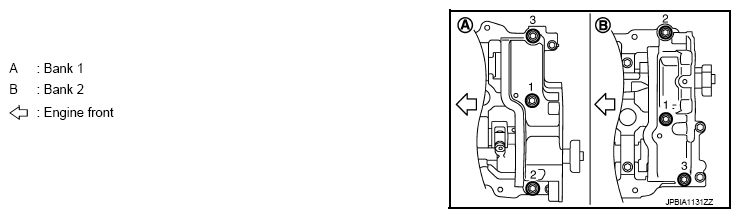

  Fig 8: Locating Rear Actuator Bracket Mounting Bolts With Tightening Sequence
  Courtesy of NISSAN NORTH AMERICA, INC.
  1. Tighten bolts in numerical order as shown in the figure below.
    CAUTION: Do not reuse washers.

    Torque Value: 1.96 N.m (0.20 kg-m, 1 ft-lb)
  2. Tighten bolts in numerical order as shown in the figure below.
    Torque Value: 5.88 N.m (0.60 kg-m, 4 ft-lb)
  3. Tighten bolts in numerical order as shown in the figure below.
    Torque Value: 31.4 N.m (3.2 kg-m, 23 ft-lb)
Install new VVEL actuator sub assembly as follows:
CAUTION: Regarding replacement, because VVEL actuator sub assembly and VVEL control shaft position sensor are controlled on a one-on-one basis, replace them as a set.
NOTE:
- VVEL actuator arm (B) is factory-fixed at 5.5 degrees from the small lift with a holding jig (A).
- The holding jig is supplied in the new VVEL actuator sub assembly.

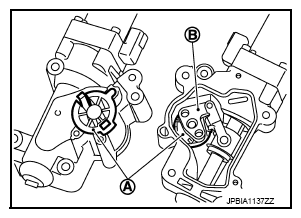

Fig 9: Installing VVEL Actuator Sub Assembly Using Holding Jig
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Never disassemble VVEL actuator sub assembly. [Never loosen actuator motor mounting bolts (A) shown in the figure below]
- Never shock VVEL actuator sub assembly.

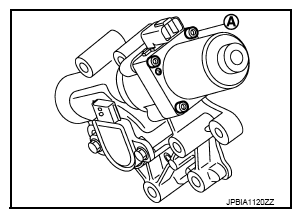

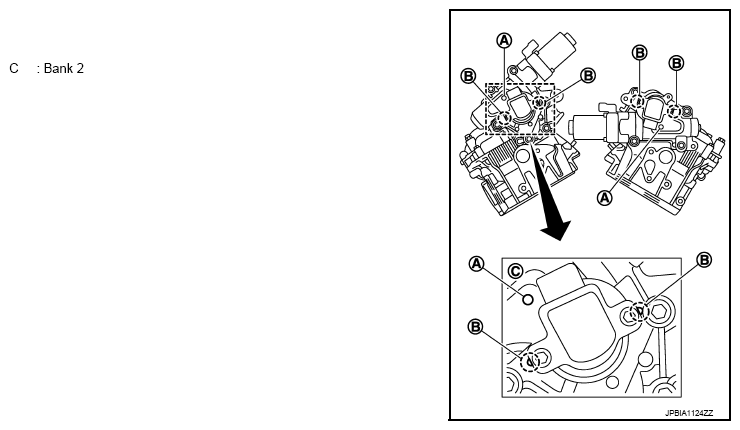

Fig 10: Identifying Actuator Motor Mounting Bolts (Do Not Loosen)
Courtesy of NISSAN NORTH AMERICA, INC.
1. Move control shaft to the position of small lift stopper.
  - The position where a part of the stopper of control shaft contacts VVEL ladder bracket.

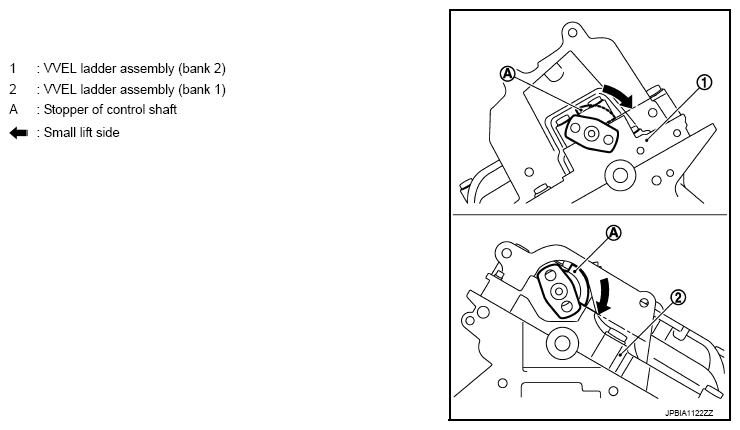

    Fig 11: Moving Control Shaft To Position Of Small Lift Stopper
    Courtesy of NISSAN NORTH AMERICA, INC.
  CAUTION: Be careful not to damage the stopper surface.
  - If control shaft cannot be moved, set crankshaft in position referring to the information below. (To displace cam nose)
    Bank 1: Turn 120 degrees from No. 1 cylinder at TDC

    Bank 2: No. 1 cylinder at TDC
2. Hold two flat areas of control shaft with a wrench, and rotate the control shaft (5.5 degrees from the stopper) to the large lift side. (This is for aligning the bolt hole of control shaft and the hole of VVEL actuator arm.)

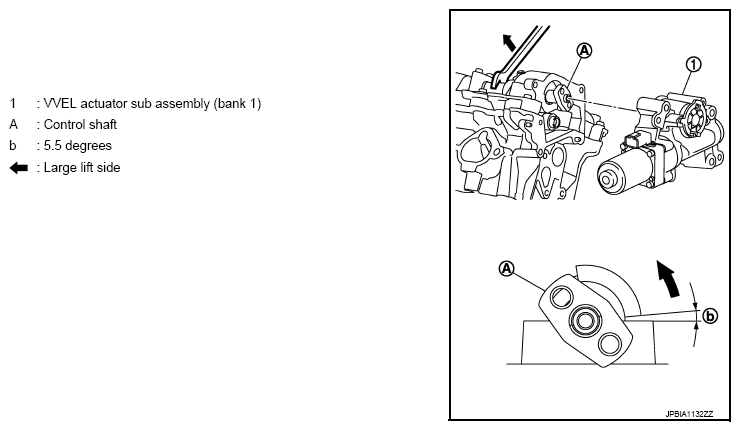

  Fig 12: Rotating Control Shaft To Large Lift Side Using Wrench
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the VVEL actuator sub assembly as shown in the figure below.

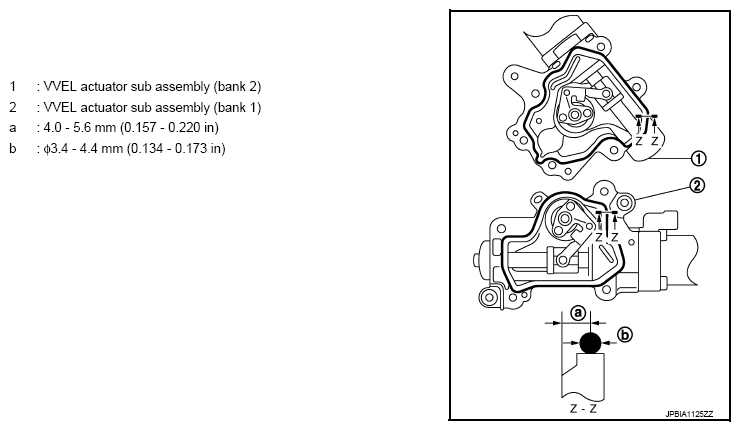

  Fig 13: Identifying Continuous Bead Application Area On VVEL Actuator Sub Assembly
  Courtesy of NISSAN NORTH AMERICA, INC.

  Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

  CAUTION: Never apply gasket to the oil passage.
4. Install new VVEL actuator sub assembly.

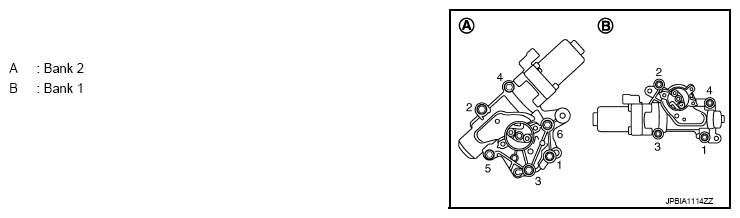

  - Tighten mounting bolts in the following step, in numerical order as shown in the figure below.

    Fig 14: Locating VVEL Actuator Sub Assembly Mounting Bolts With Tightening Sequence
    Courtesy of NISSAN NORTH AMERICA, INC.
  CAUTION:
  - When installing, be careful with VVEL actuator sub assembly (bank 2) mounting bolt No. 1 because its length is different.
  - Be sure to check that the VVEL actuator sub assembly is in contact with the cylinder head before tightening the mounting bolts.
5. Remove holding jig.
6. Check that VVEL actuator arm bolt hole is aligned with control shaft tapped hole. If it is not aligned, turn control shaft for alignment.
7. Fix two flat areas (C) of control shaft with a wrench to install mounting bolts of control shaft.

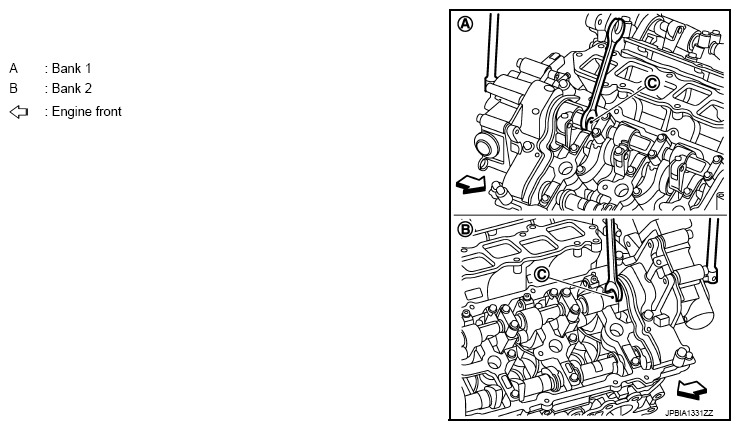

  Fig 15: Installing Control Shaft Mounting Bolts Using Wrench
  Courtesy of NISSAN NORTH AMERICA, INC.
  CAUTION:
  - During the operation, never allow a wrench to interfere with other parts.
  - Fix control shaft to prevent the interference of the stopper surface.
Install new VVEL control shaft position sensor as follows:
CAUTION: Regarding replacement, because VVEL actuator sub assembly and VVEL control shaft position sensor are controlled on a one-on-one basis, replace them as a set.
1. Apply engine oil to O-ring or contact surface of O-ring.
2. Align matching marks (B) of VVEL control shaft position sensor and upper housing.

  Fig 16: Identifying Matching Marks Of VVEL Control Shaft Position Sensor And Upper Housing
  Courtesy of NISSAN NORTH AMERICA, INC.
  - Face connector toward matching mark (A).
3. Temporarily tighten bolt.
4. Adjust VVEL control shaft position sensor after setting the engine assembly in the vehicle. Refer to "VVEL CONTROL SHAFT POSITION SENSOR ADJUSTMENT: DESCRIPTION ".
  CAUTION: Be sure to adjust VVEL control shaft position sensor.
5. After adjusting VVEL control shaft position sensor, tighten bolts to the specified torque.
Inspect the valve clearance. Refer to "INSPECTION AND ADJUSTMENT ".
Install in the reverse order of removal after this step.
