Exploded View: Removal

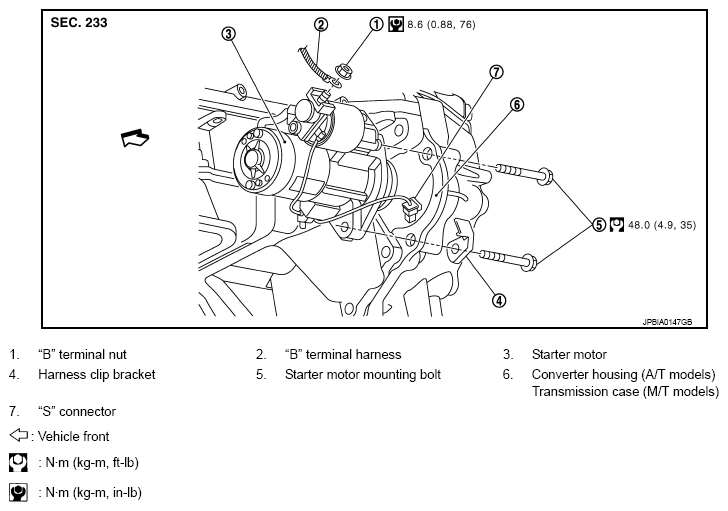

Fig 1: Exploded View Of Starter Motor With Torque Specifications
G08736369Courtesy of NISSAN NORTH AMERICA, INC.
