G37 Base
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (Convertible)
>>
VDC/TCS/Abs
>>
System Description
>>
Abs
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram

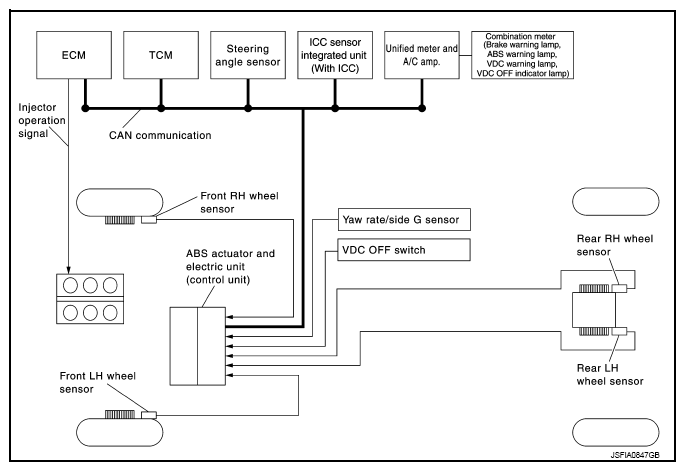

Fig 1: ABS - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
