System Diagram

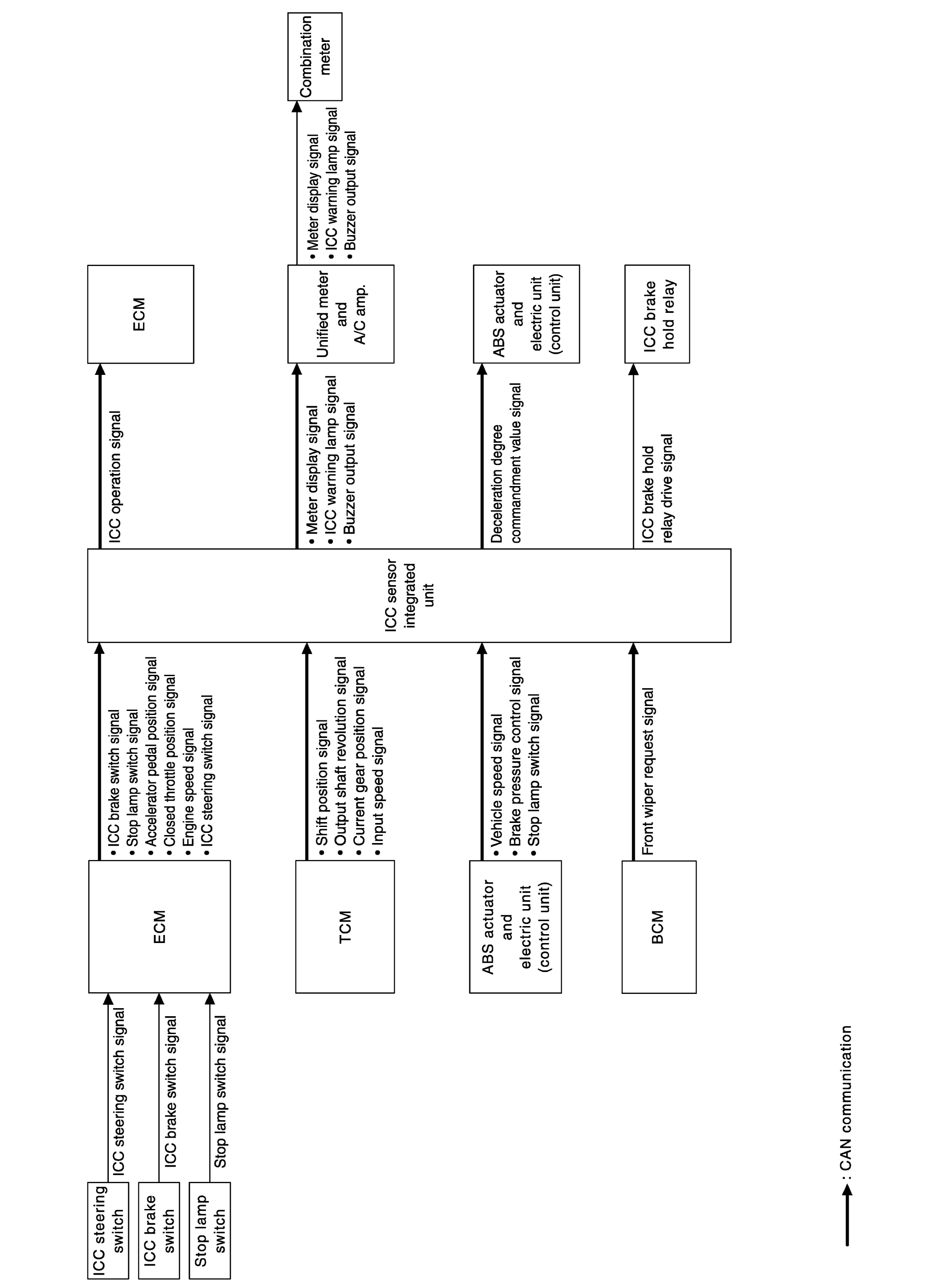

Fig 1: Vehicle-To-Vehicle Distance Control Mode Function System Diagram
G07010611Courtesy of NISSAN NORTH AMERICA, INC.
