VK50VE: Exploded View

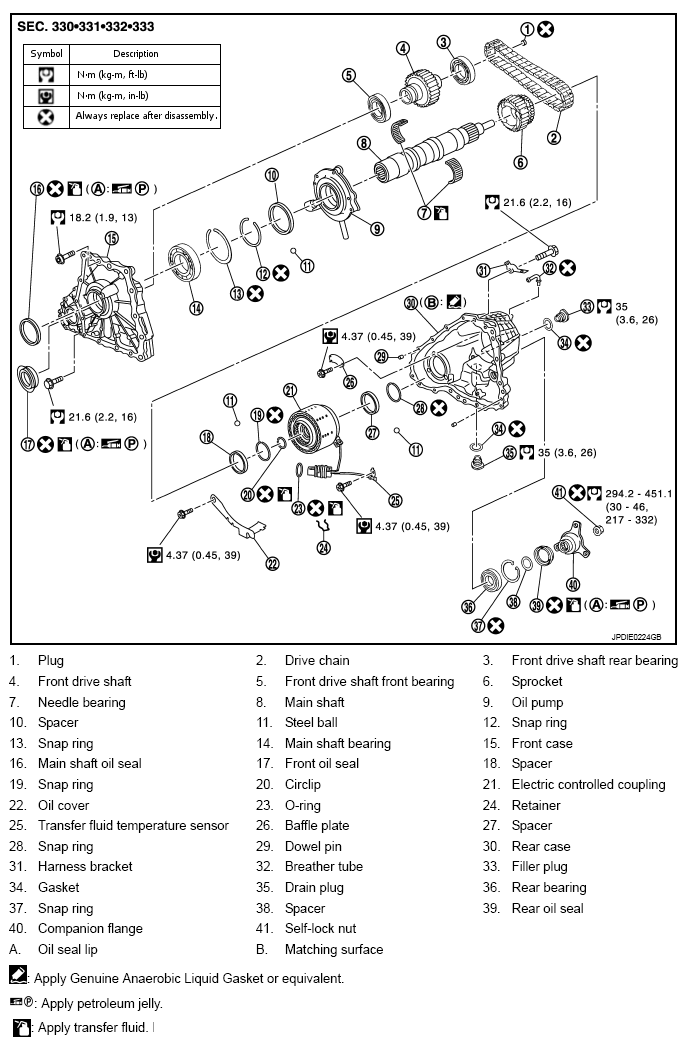

Fig 1: Exploded View Of Front And Rear Case (VK50VE) With Torque Specifications
G09002616Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols not described above.
