Exploded View

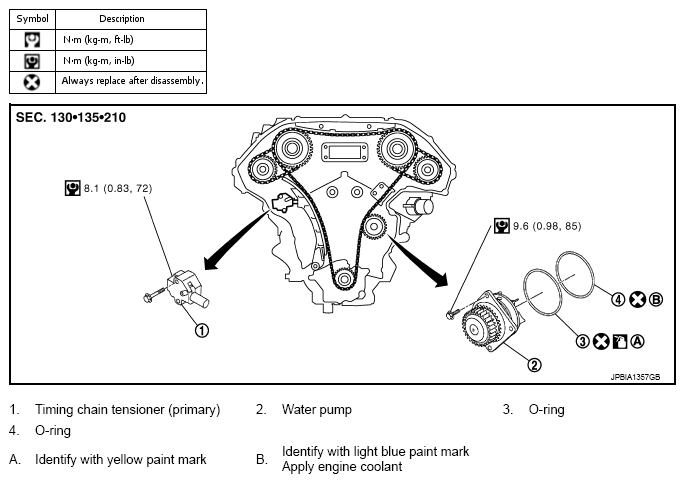

Fig 1: Exploded View Of Water Pump With Torque Specifications
G09000508Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.
