Fuse Circuits

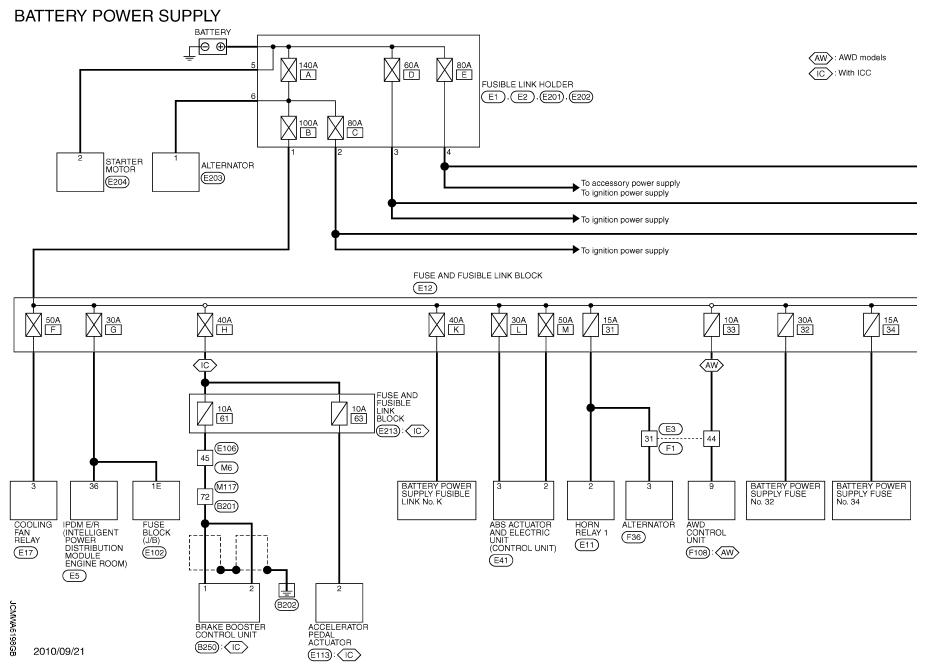

Fig 1: Battery Power Supply - Wiring Diagram (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

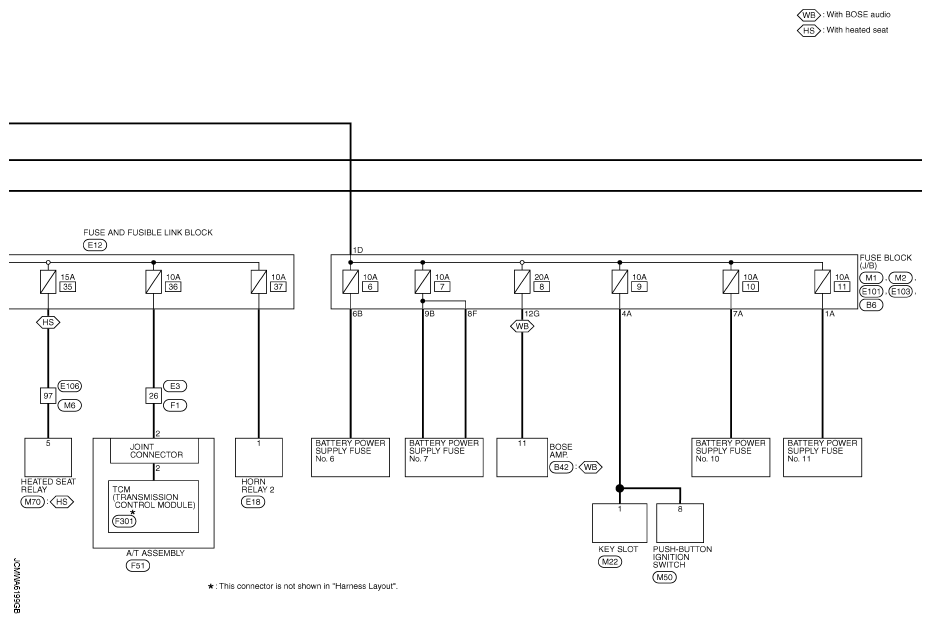

Fig 2: Battery Power Supply - Wiring Diagram (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

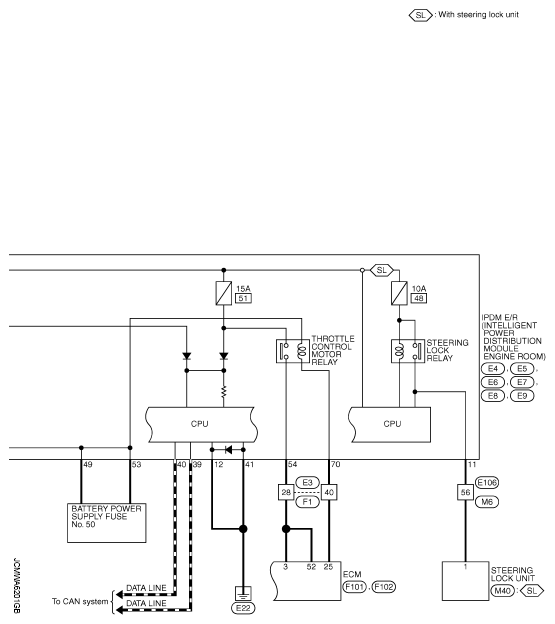

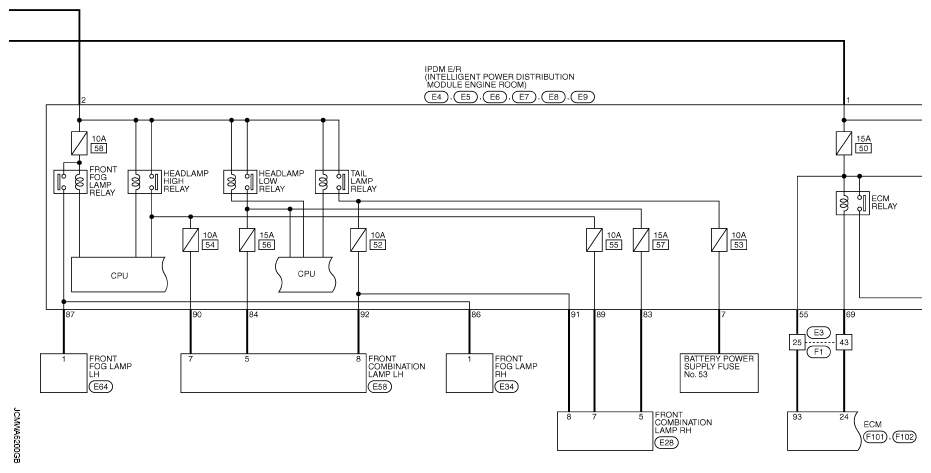

Fig 3: Battery Power Supply - Wiring Diagram (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Battery Power Supply - Wiring Diagram (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

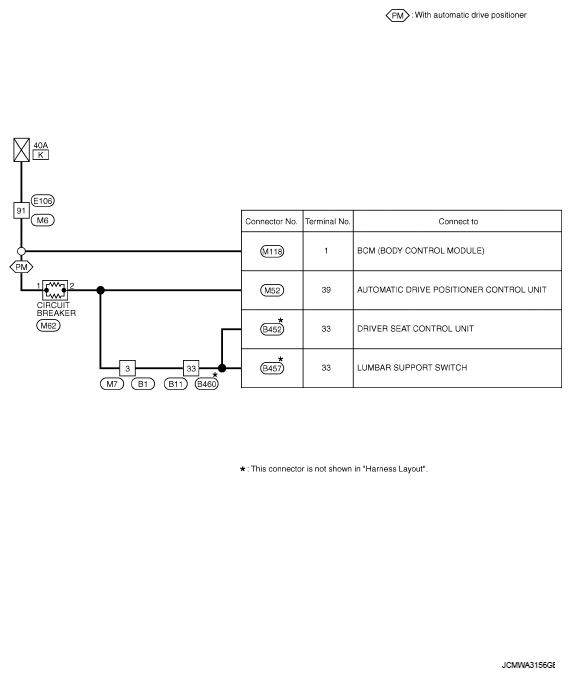

Fig 5: Battery Power Supply Fusible Link No. K - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

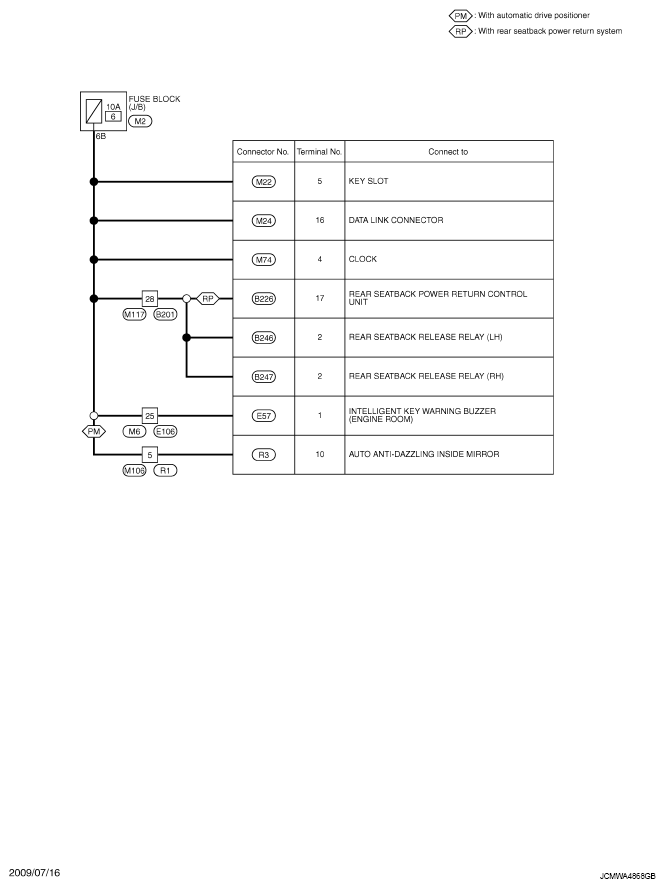

Fig 6: Battery Power Supply Fuse No. 6 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Battery Power Supply Fuse No. 7 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

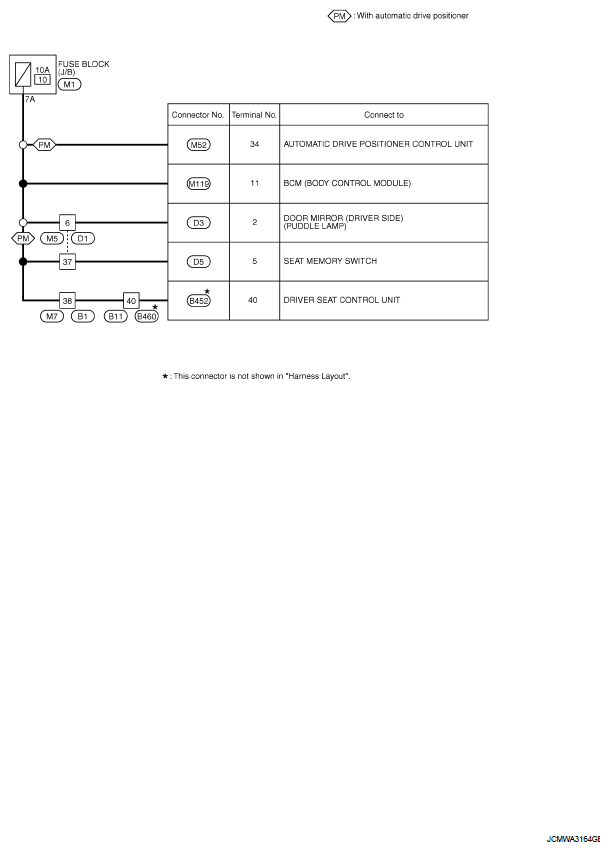

Fig 8: Battery Power Supply Fuse No. 10 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Battery Power Supply Fuse No. 11 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

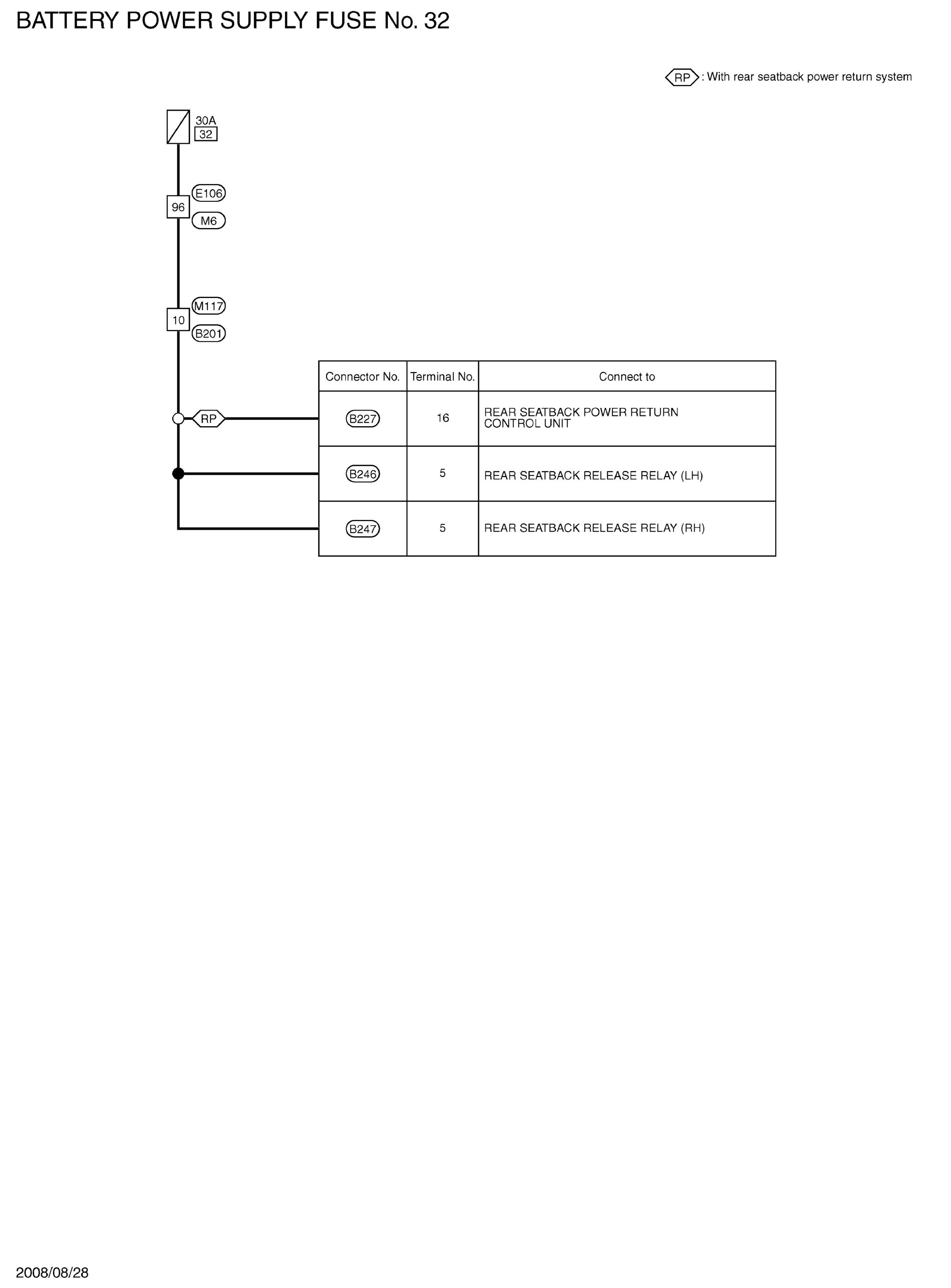

Fig 10: Battery Power Supply Fuse No. 32 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

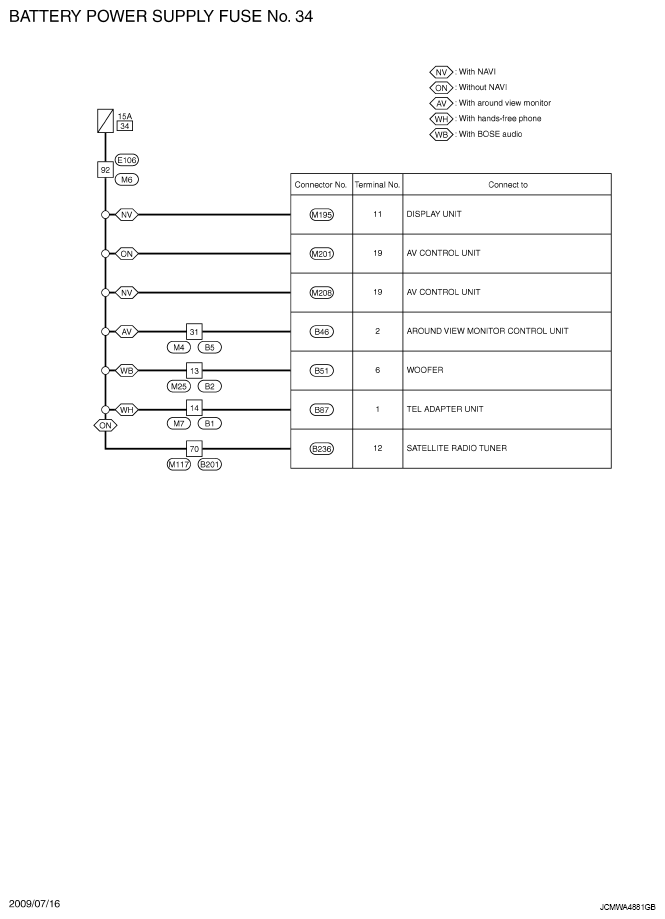

Fig 11: Battery Power Supply Fuse No. 34 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

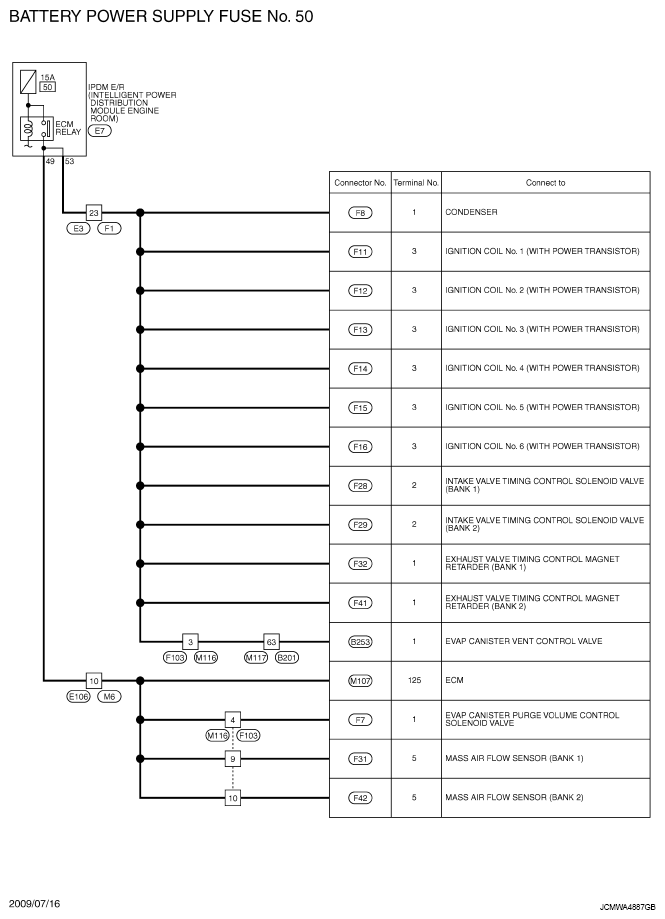

Fig 12: Battery Power Supply Fuse No. 50 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

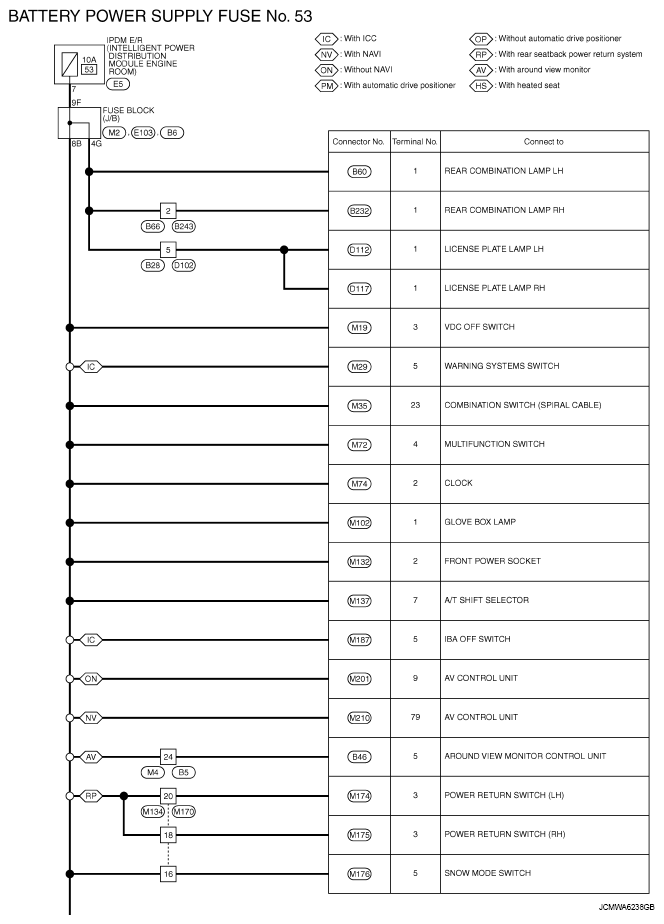

Fig 13: Battery Power Supply Fuse No. 53 - Wiring Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Battery Power Supply Fuse No. 53 - Wiring Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

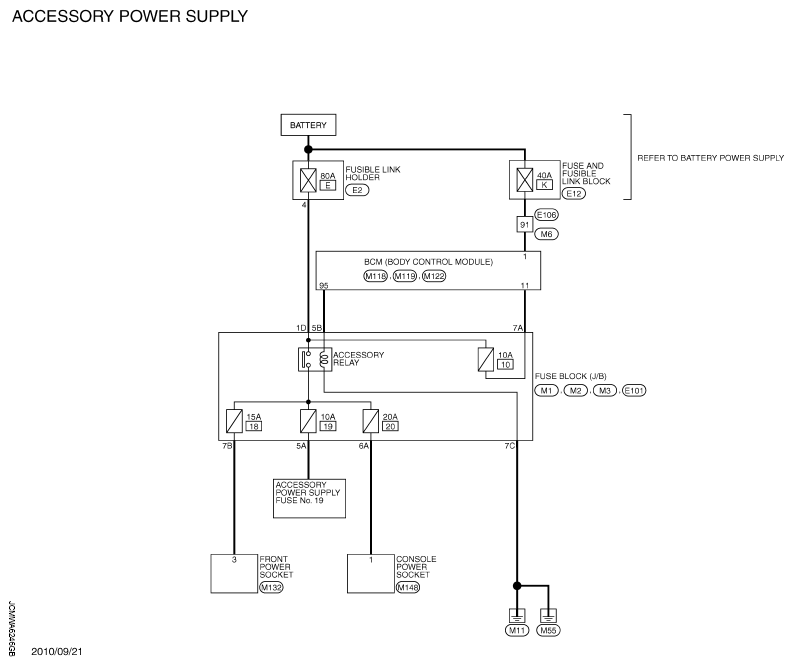

Fig 15: Accessory Power Supply - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

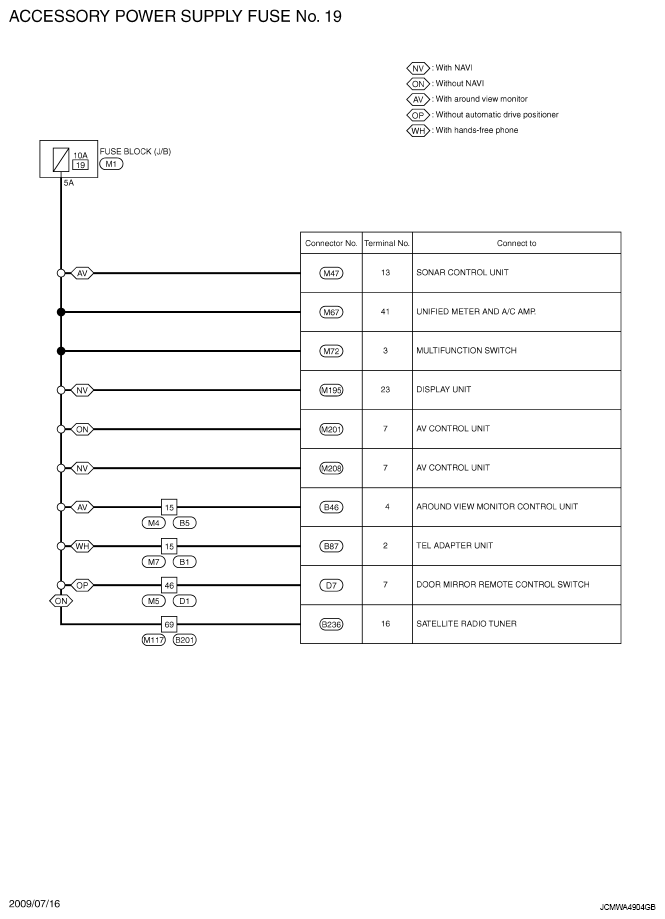

Fig 16: Accessory Power Supply Fuse No. 19 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

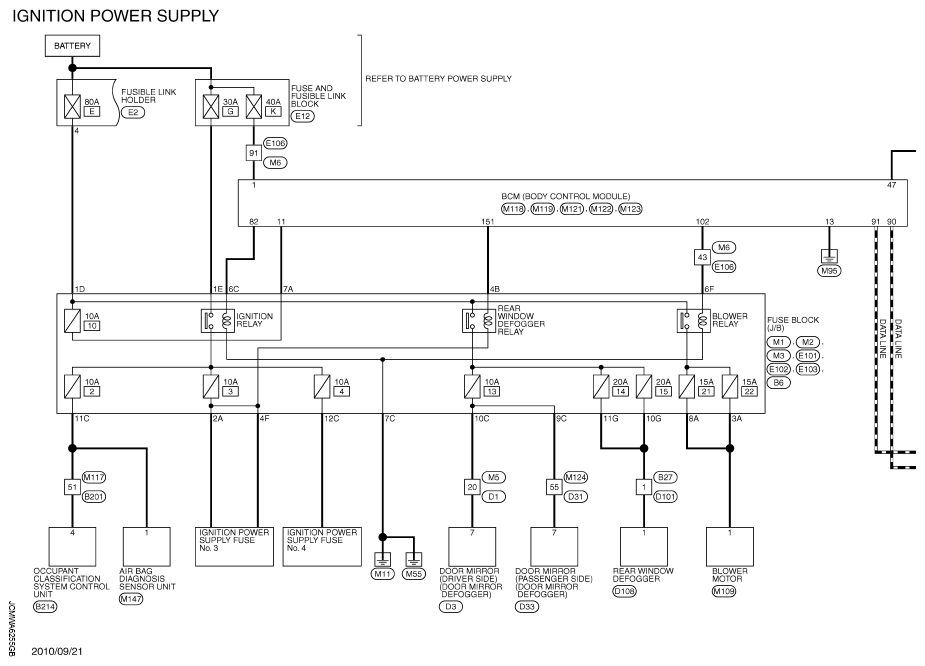

Fig 17: Ignition Power Supply - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

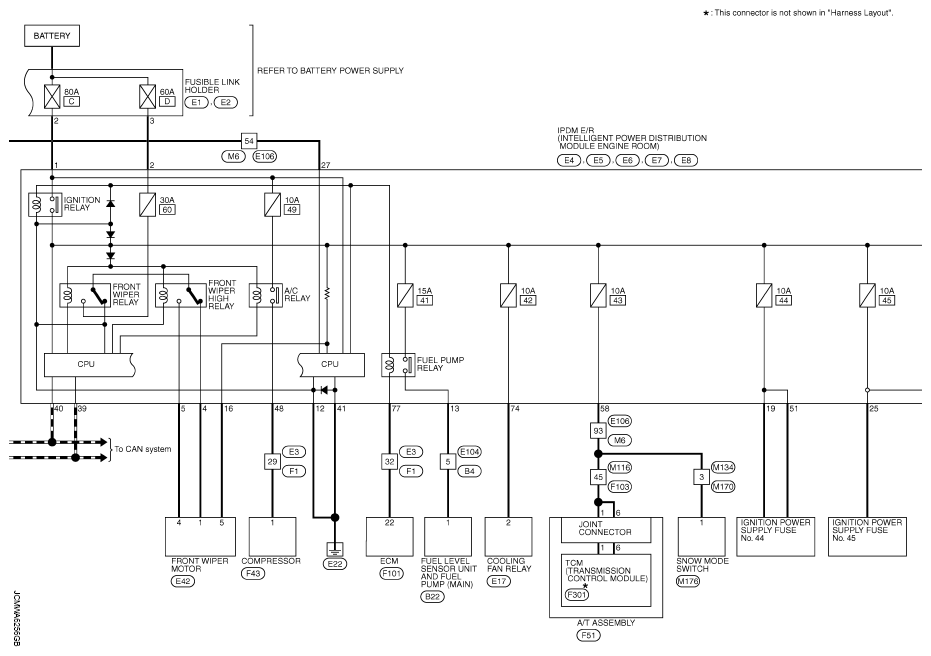

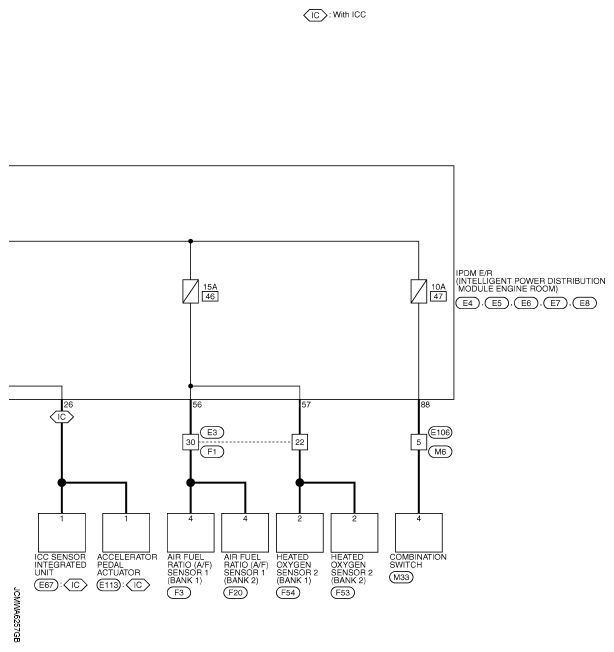

Fig 18: Ignition Power Supply - Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Ignition Power Supply - Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

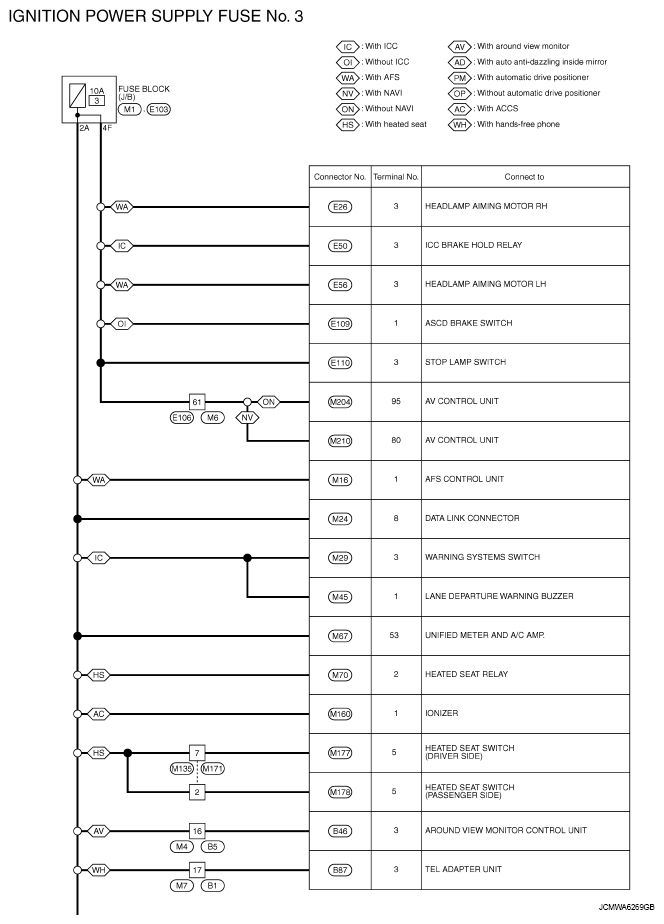

Fig 20: Ignition Power Supply Fuse No. 3 - Wiring Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 21: Ignition Power Supply Fuse No. 3 - Wiring Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

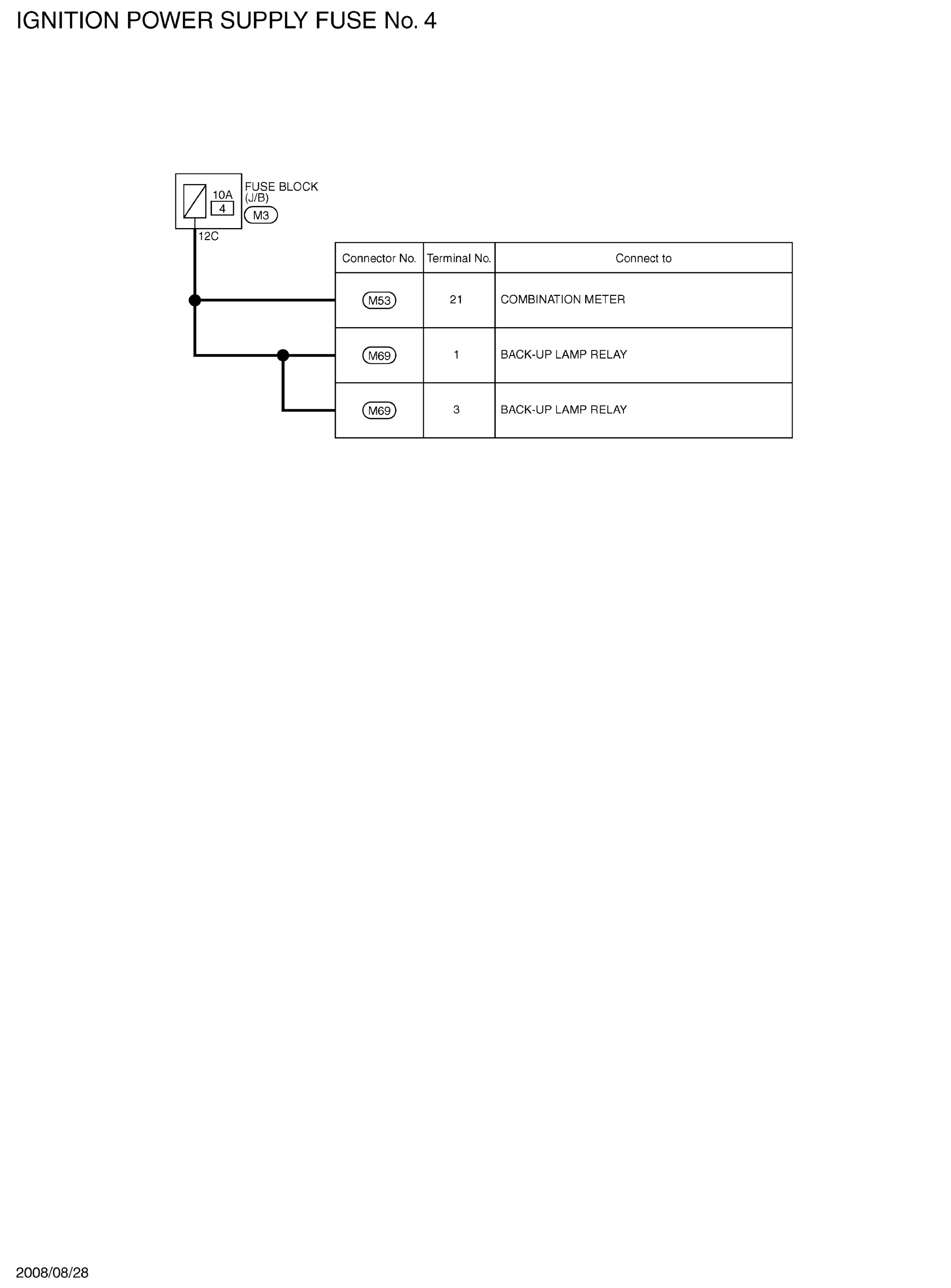

Fig 22: Ignition Power Supply Fuse No. 4 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

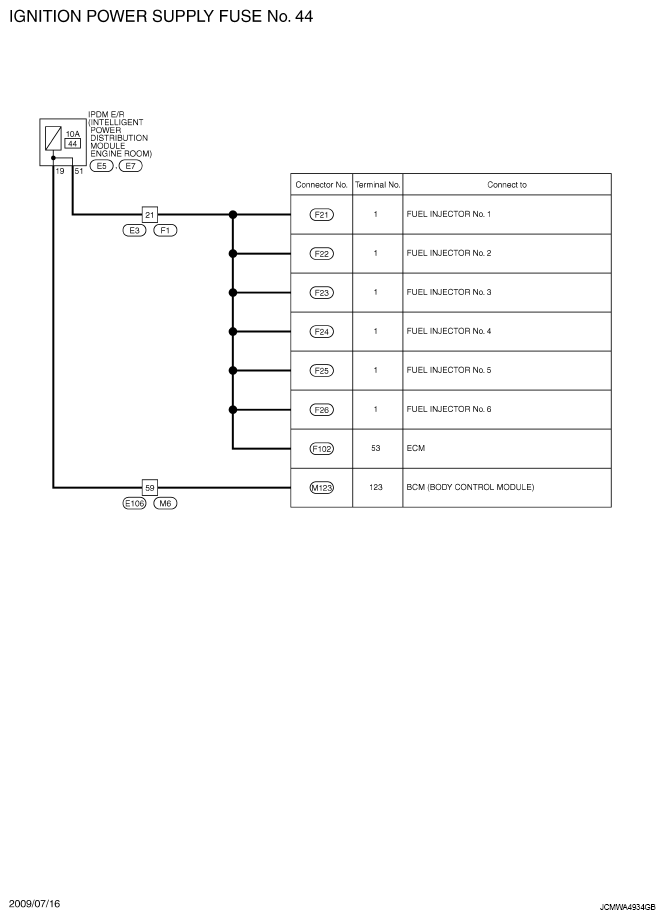

Fig 23: Ignition Power Supply Fuse No. 44 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

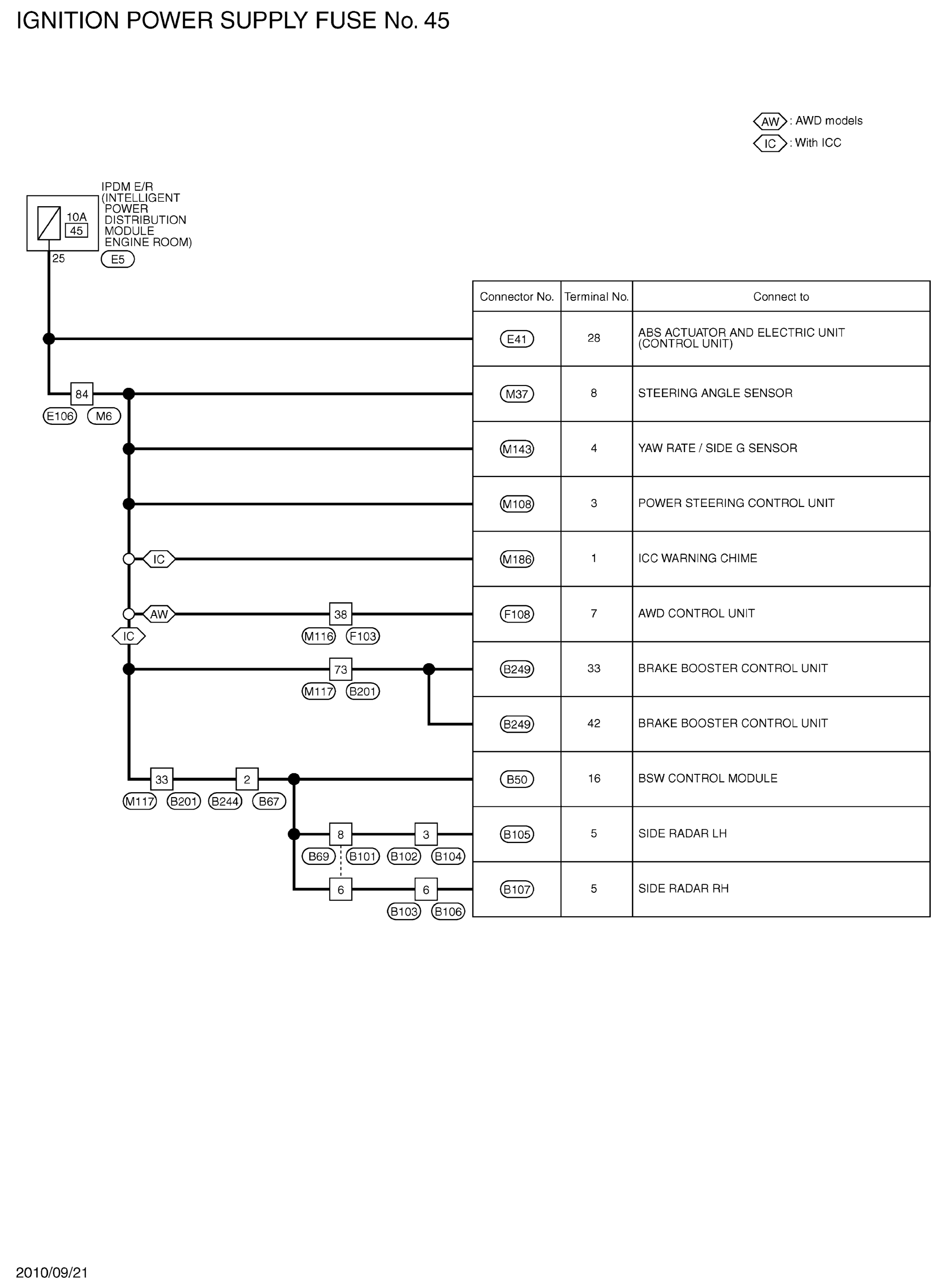

Fig 24: Ignition Power Supply Fuse No. 45 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
