SHIFT PATTERN CONTROL: System Diagram

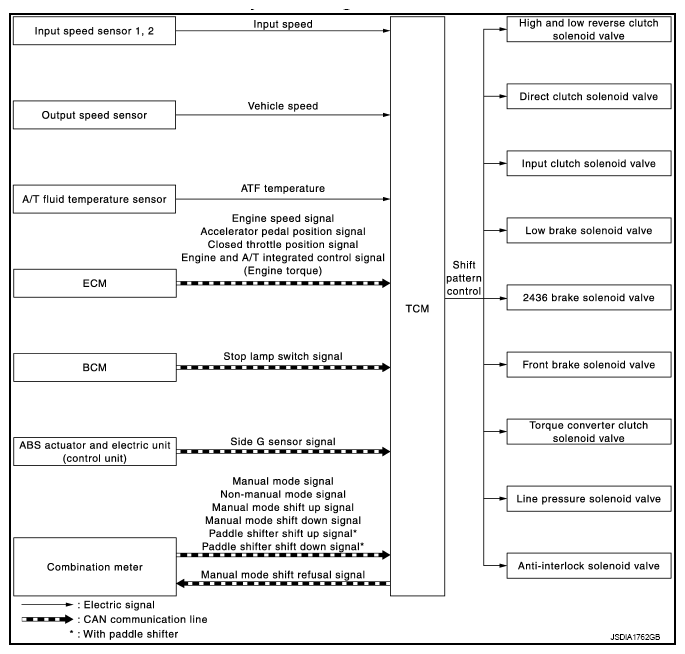

Fig 1: Shift Pattern Control System Diagram
G07018744Courtesy of NISSAN NORTH AMERICA, INC.
