Exploded View

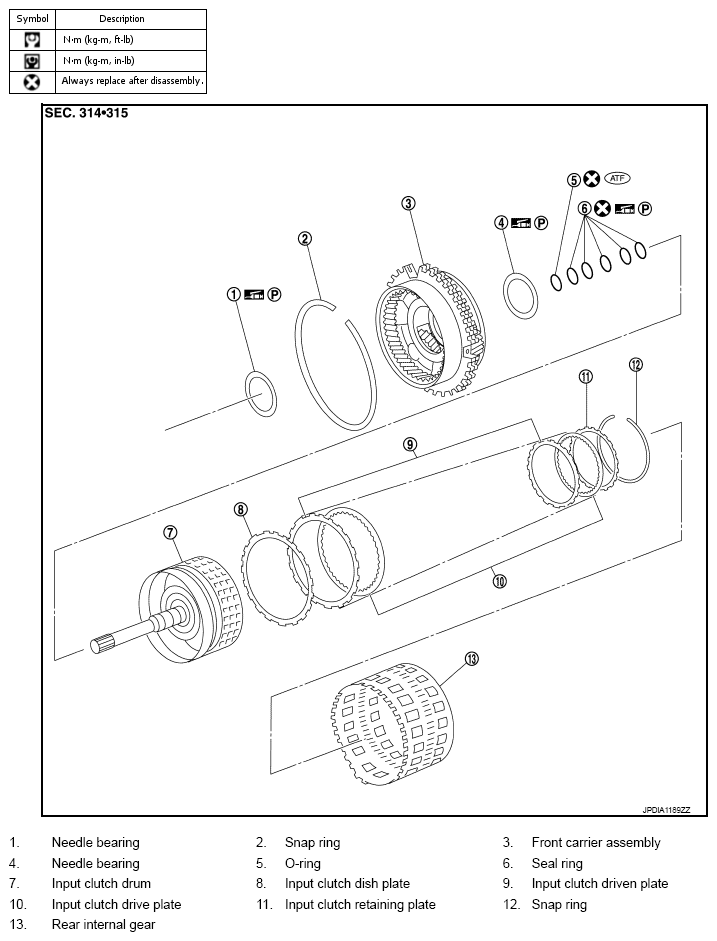

Fig 1: Exploded View Of Front Carrier, Input Clutch, Rear Internal Gear
G08649749Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
