4WAS SYSTEM: Component Parts Location

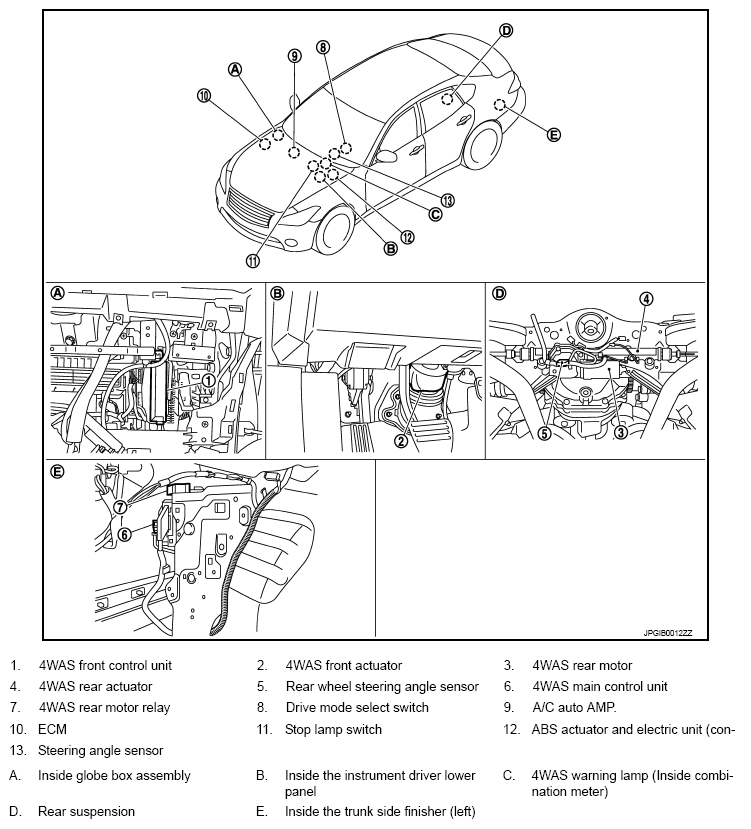

Fig 1: EPS System Component Parts Location (4WAS System)
G08649798Courtesy of NISSAN NORTH AMERICA, INC.
