Removal and Installation: Removal

  1. Remove the instrument panel lower cover LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the brake pedal stroke sensor connector.
  3. Remove the screws (A).
  4. Remove the brake pedal stroke sensor (1).

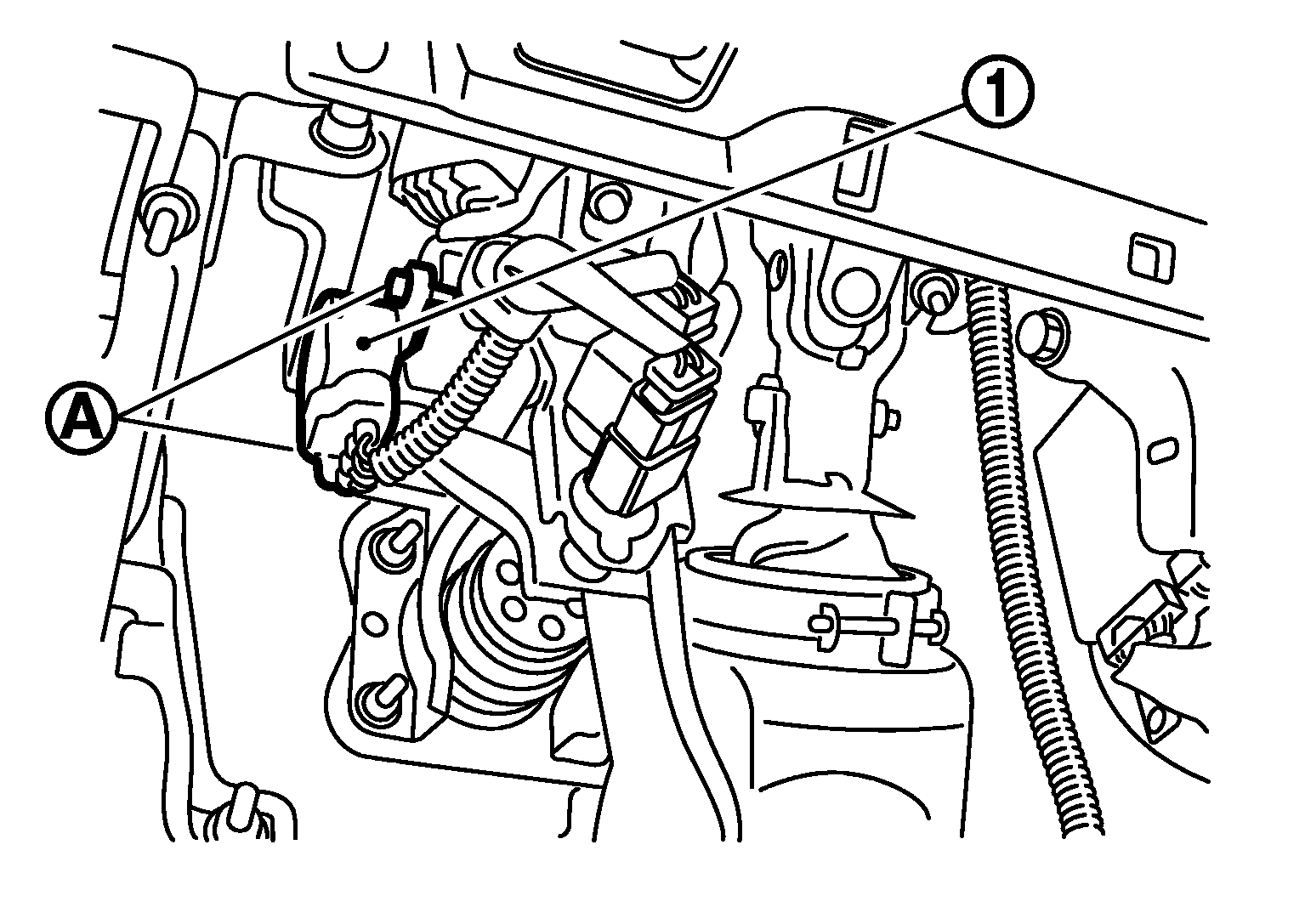

    Fig 1: Identifying Brake Pedal Stroke Sensor And Screws
    G05973781Courtesy of NISSAN NORTH AMERICA, INC.
