Overall Sequence

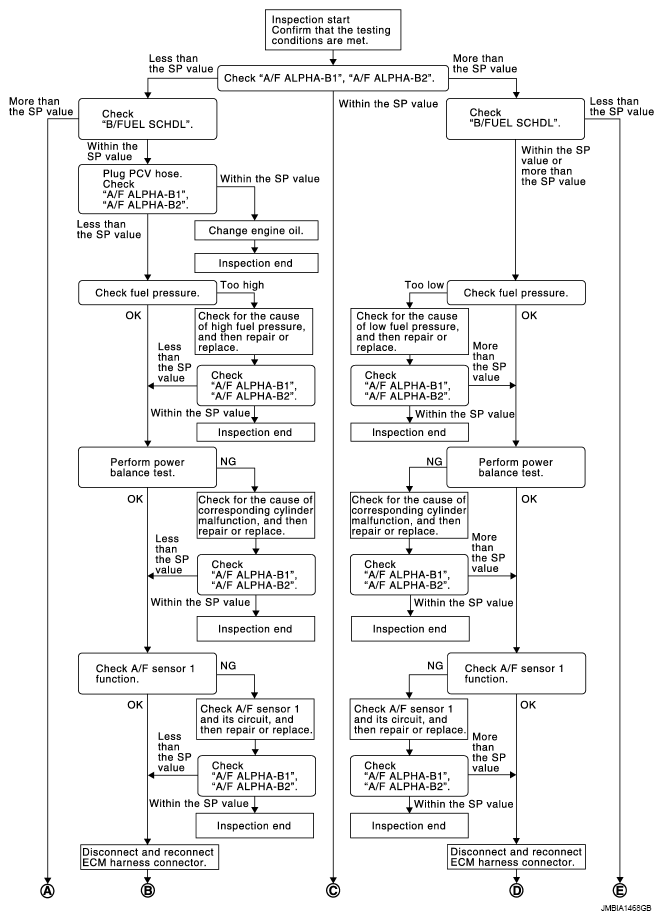

Fig 1: Identifying Trouble Diagnosis Flow Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

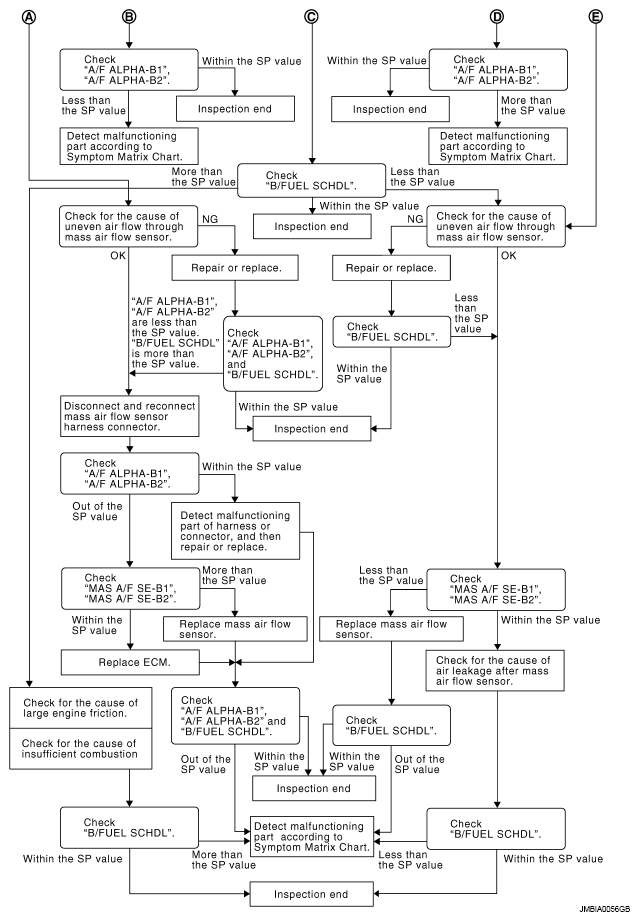

Fig 2: Identifying Trouble Diagnosis Flow Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
