CLIMATE CONTROLLED SEAT SYSTEM: System Diagram

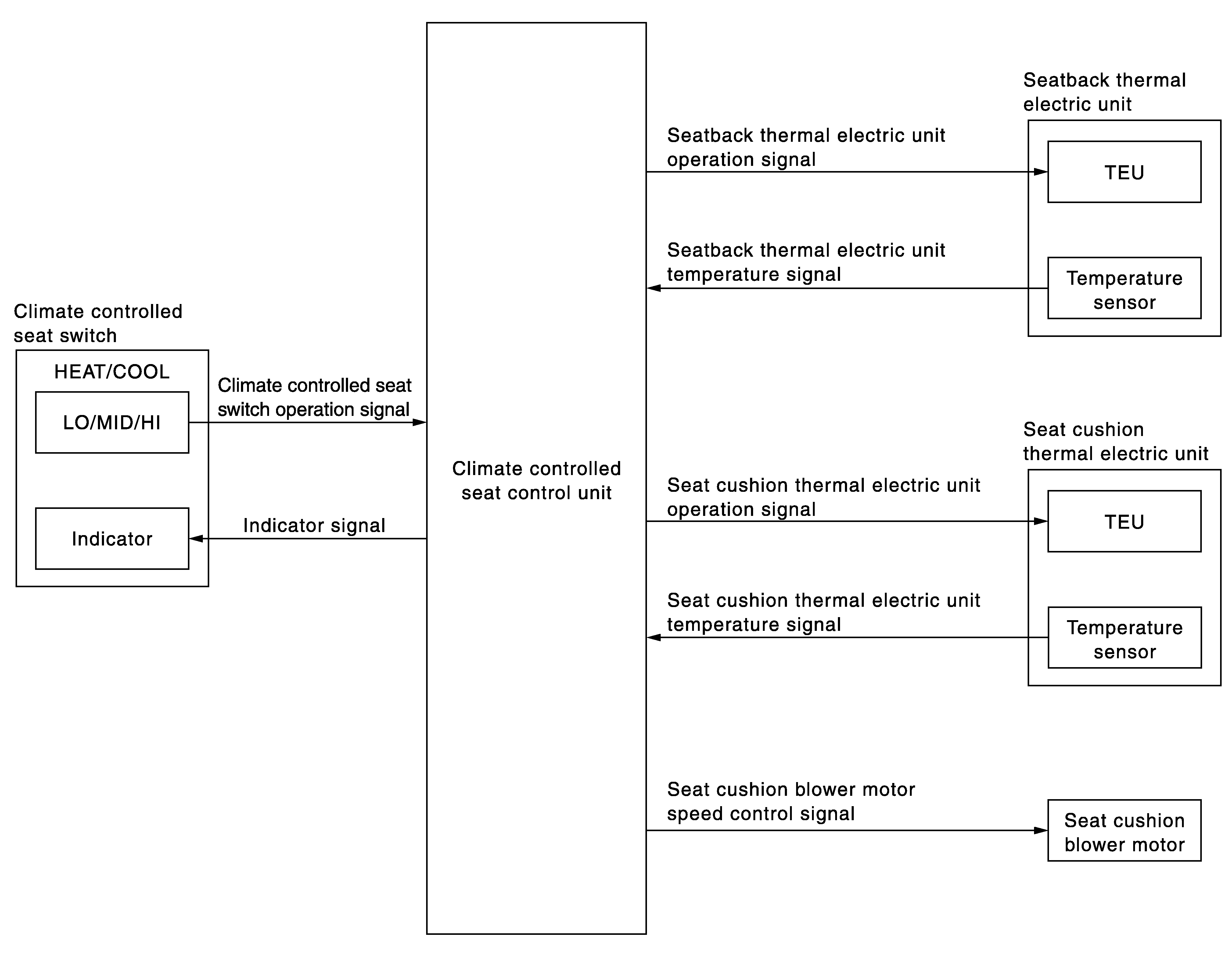

Fig 1: Identifying Climate Controlled Seat System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
