Infiniti
>>
2012
>>
G37 IPL, Automatic Trans
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering Control System (With 4WAS) (Coupe)
>>
System Description
>>
4WAS System
>>
System Diagram
>>
Cross-Sectional View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cross-Sectional View

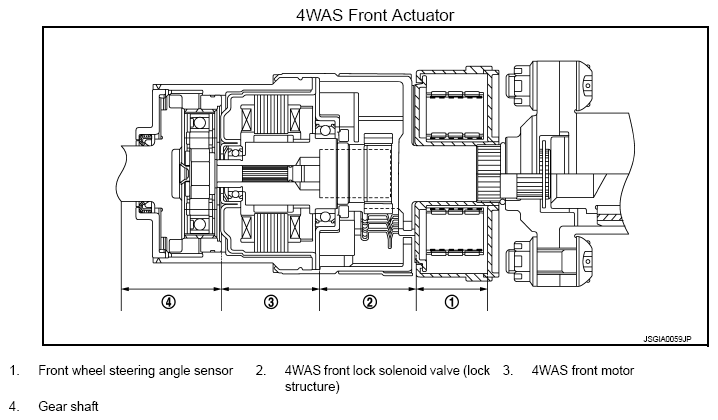

Fig 1: Cross-Sectional View Of 4WAS System (Front Actuator)
Courtesy of NISSAN NORTH AMERICA, INC.

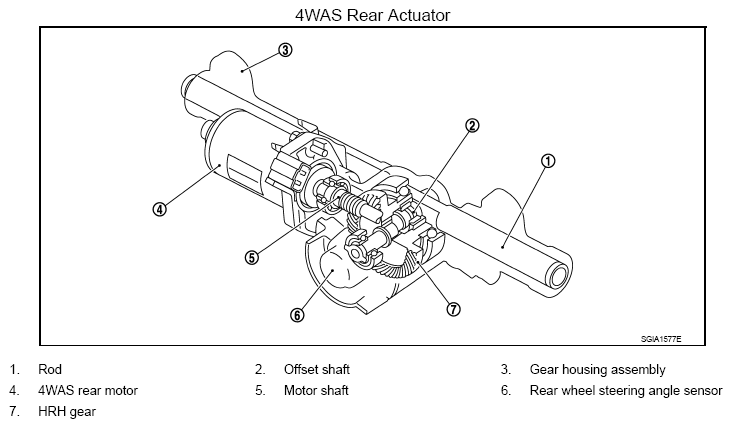

Fig 2: Cross-Sectional View Of 4WAS System (Rear Actuator)
Courtesy of NISSAN NORTH AMERICA, INC.
