Exploded View

WARNING: This page is about a different variant/trim than selected.

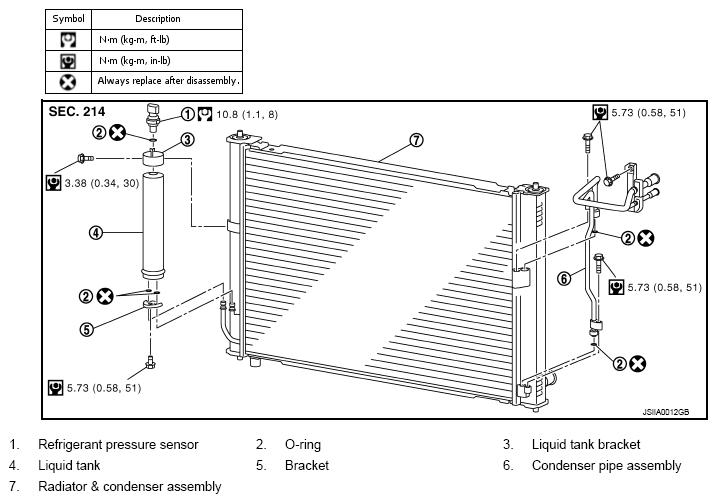

Fig 1: Exploded View Of Refrigerant Pressure Sensor With Torque Specifications
G08459010Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
