Li-ion Battery
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.
LI-ION BATTERY SPECIFICATIONS
| Items | Specification | ||
|---|---|---|---|
| Type | Li-ion battery | ||
| Structure | 48 modules (192 cells) | ||
| Rated voltage | (v) | Approx. 360 | |
| Weight | [kg (ib)] | Approx. 300 (661.5) | |

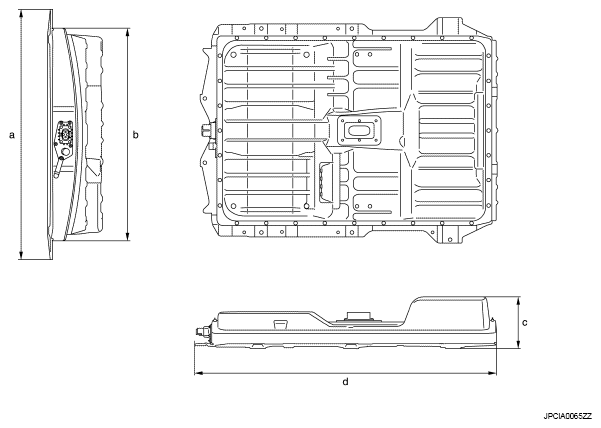

| External dimension | "a" | [mm (in)] | 1188.0 (46.77) |
| "b" | [mm (in)] | 1007.0 (39.65) | |
| "c" | [mm (in)] | 264.9 (10.43) | |
| "d" | [mm (in)] | 1570.5 (61.83) | |
