Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument driver lower panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect key slot connector.
  3. Remove the key slot mounting screw (A), and then remove key slot (1) from instrument driver lower panel.

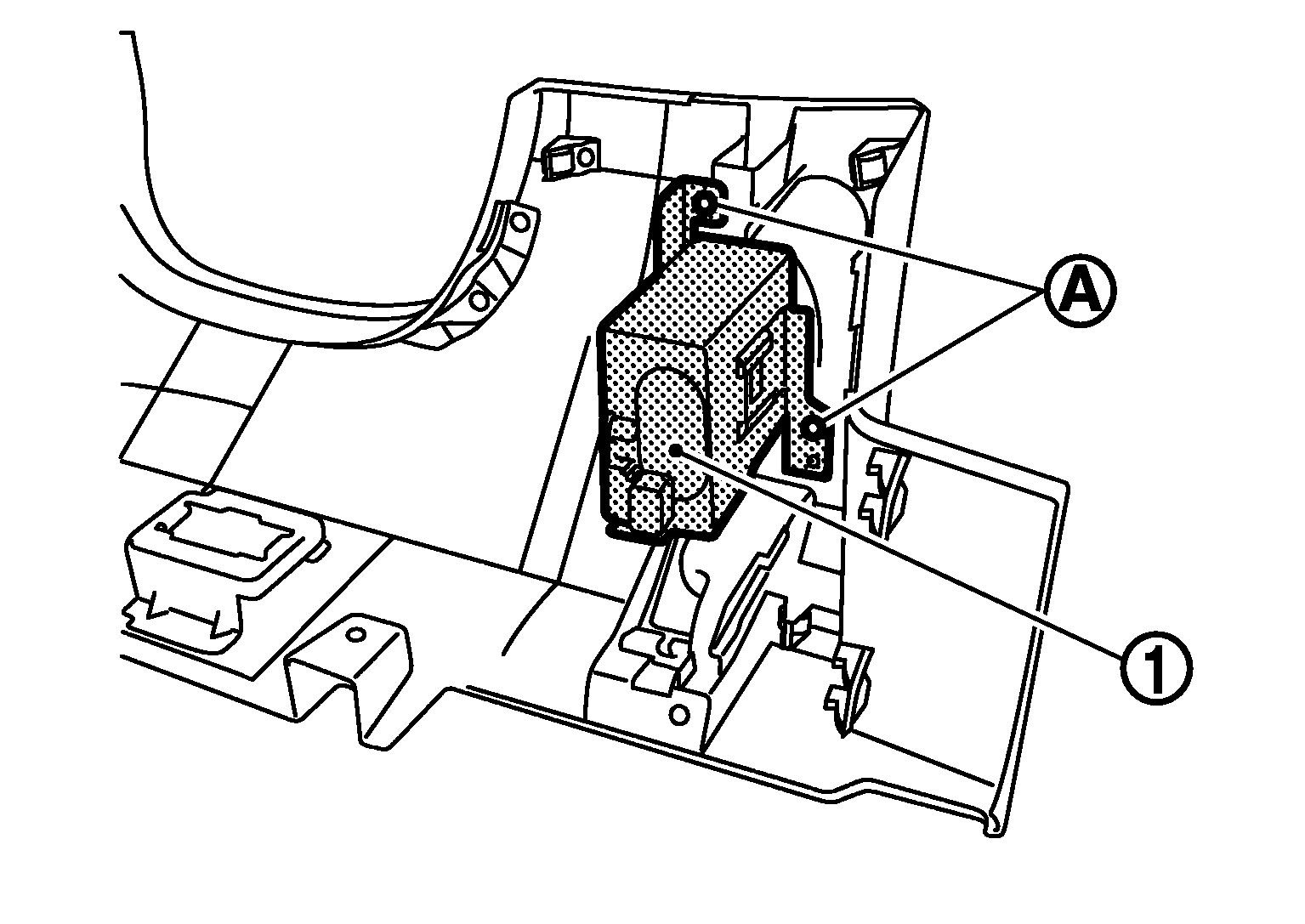

    Fig 1: Identifying Key Slot
    G06049923Courtesy of NISSAN MOTOR CO., U.S.A.
