Exploded View: Removal

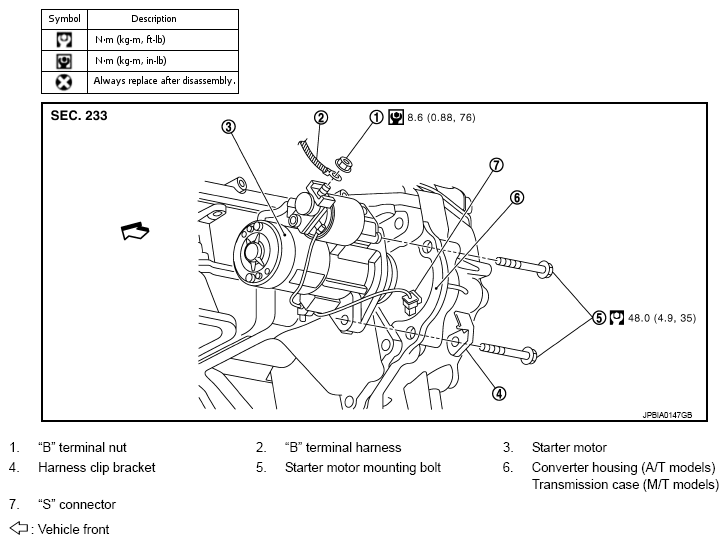

Fig 1: Starter Motor Removal With Torque Specifications
G08446224Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
