Infiniti
>>
2012
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System (Convertible)
>>
Removal And Installation
>>
Door Regulator
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

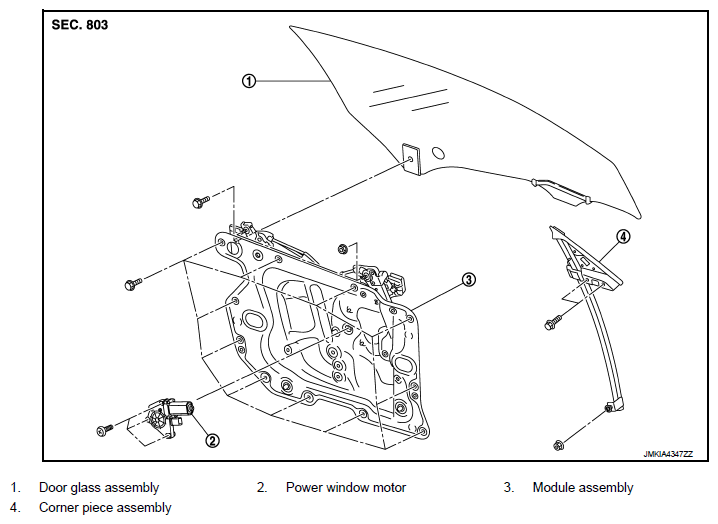

Fig 1: Exploded View Of Door Regulator
Courtesy of NISSAN NORTH AMERICA, INC.
