Diagnosis Procedure
>>
Overall Sequence
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overall Sequence

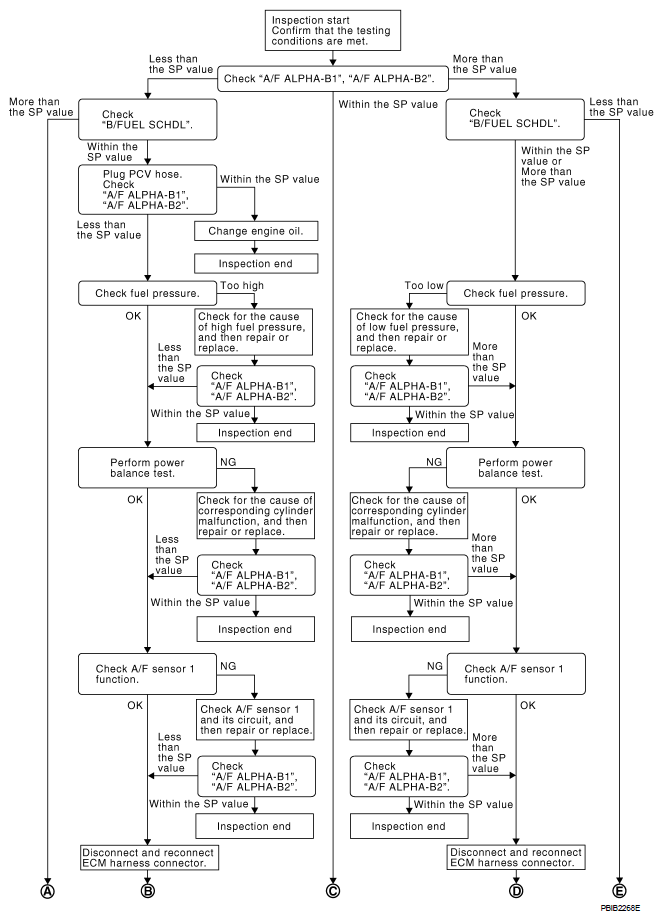

Fig 1: Specification Value Trouble Diagnostic Procedure Flow Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

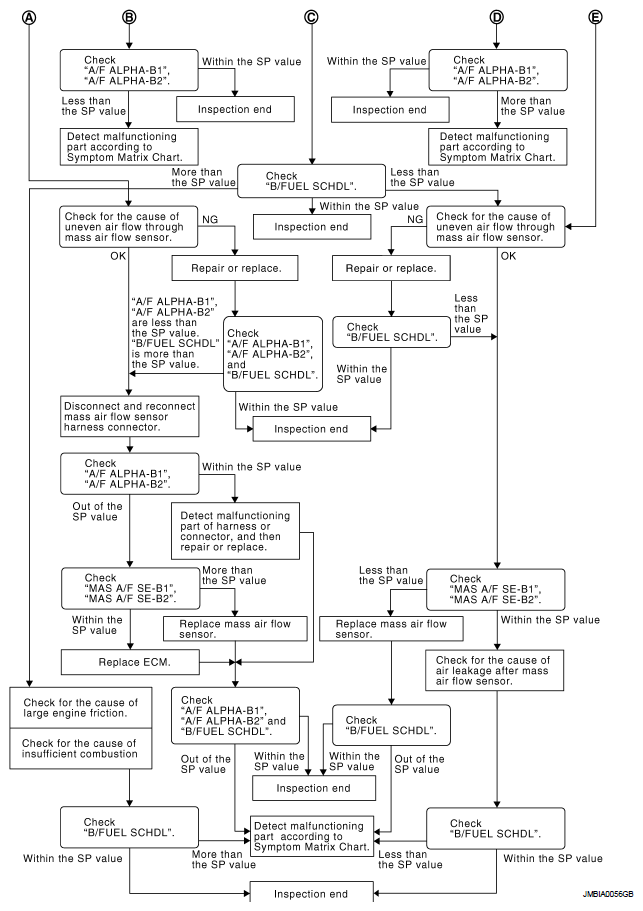

Fig 2: Specification Value Trouble Diagnostic Procedure Flow Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
