VK50VE: Exploded View

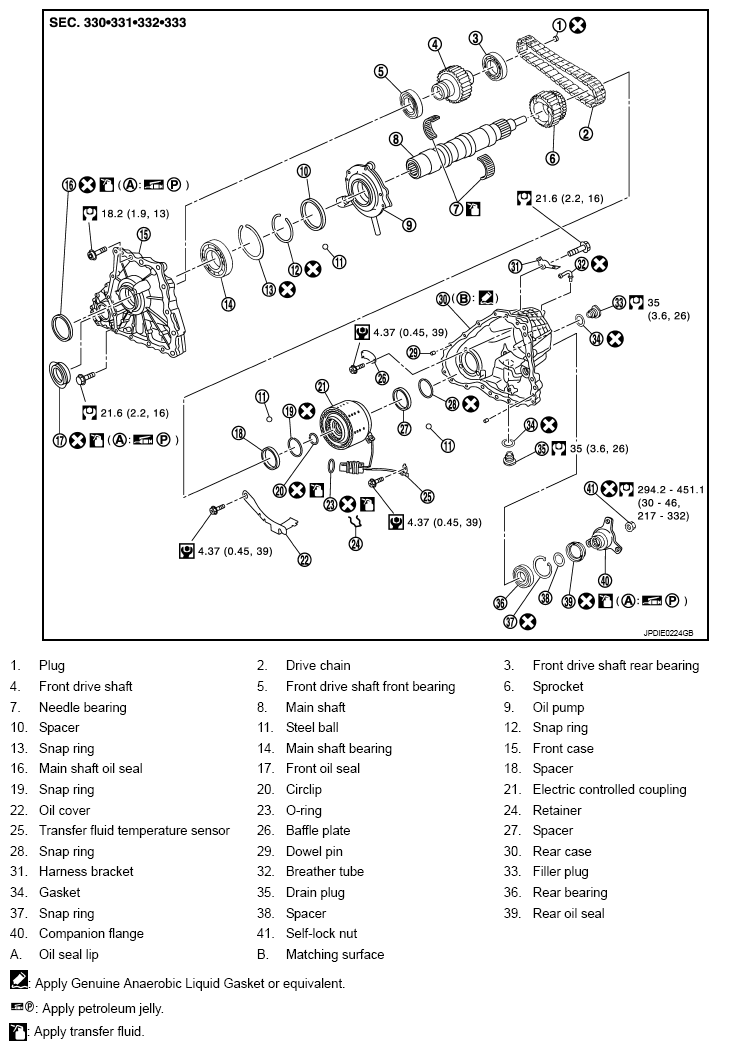

Fig 1: Exploded View Of Front And Rear Case With Torque Specifications (VK50VE)
G08229169Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
