Exploded View

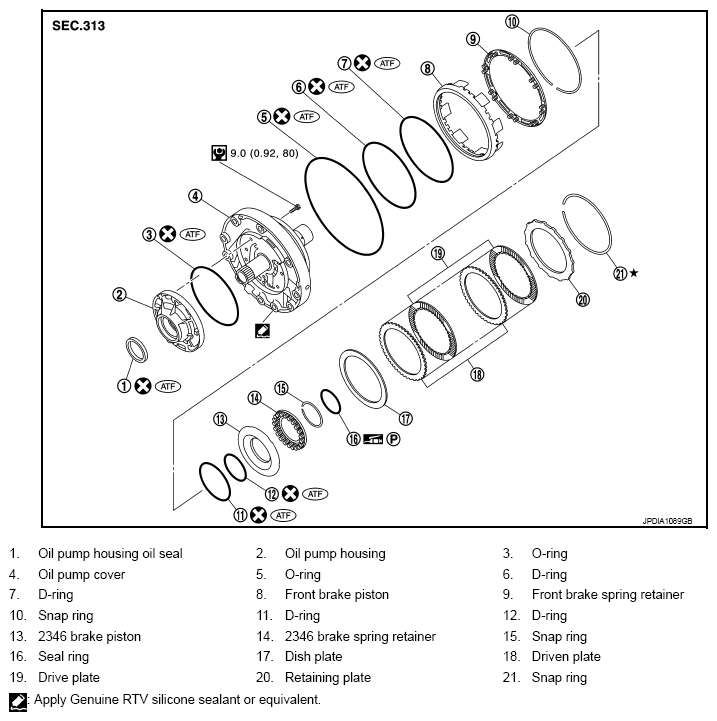

Fig 1: Exploded View Of Oil Pump, 2346 Brake, Front Brake Piston
G08217943Courtesy of NISSAN NORTH AMERICA, INC.

: Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Refer to "COMPONENTS " for symbols not described on the above.
