Seat Synchronization Function: Component Parts Location

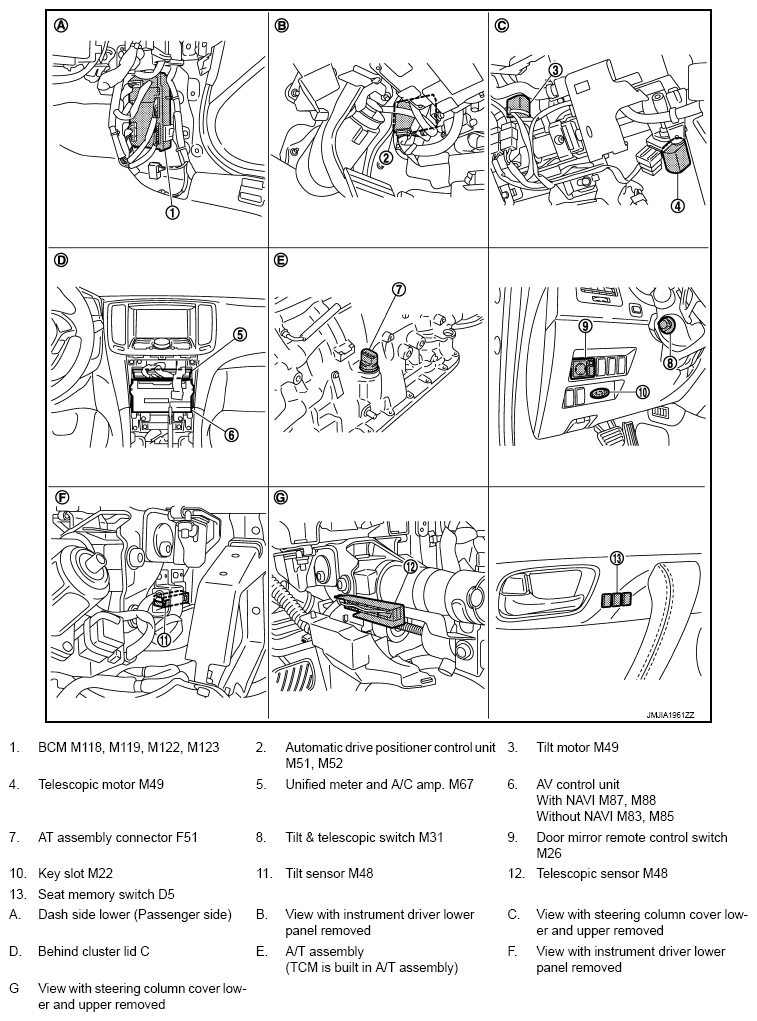

Fig 1: Seat Synchronization Function Components Location (1 Of 2)
G08226818Courtesy of NISSAN NORTH AMERICA, INC.

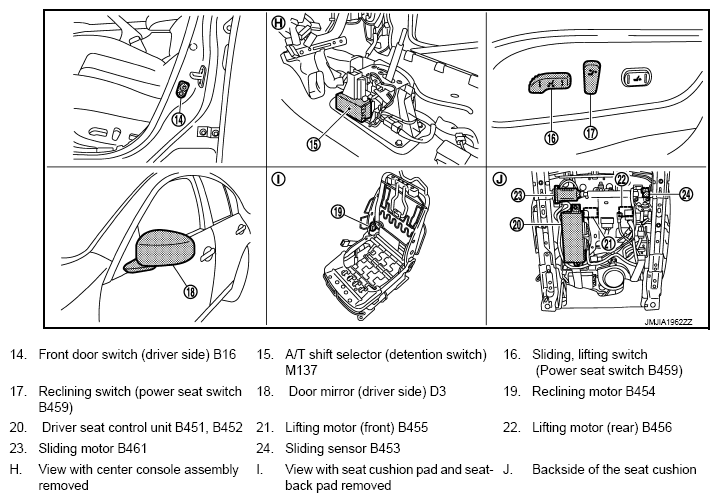

Fig 2: Seat Synchronization Function Components Location (2 Of 2)
G08226819Courtesy of NISSAN NORTH AMERICA, INC.
