Intelligent Key Interlock Function: Component Parts Location

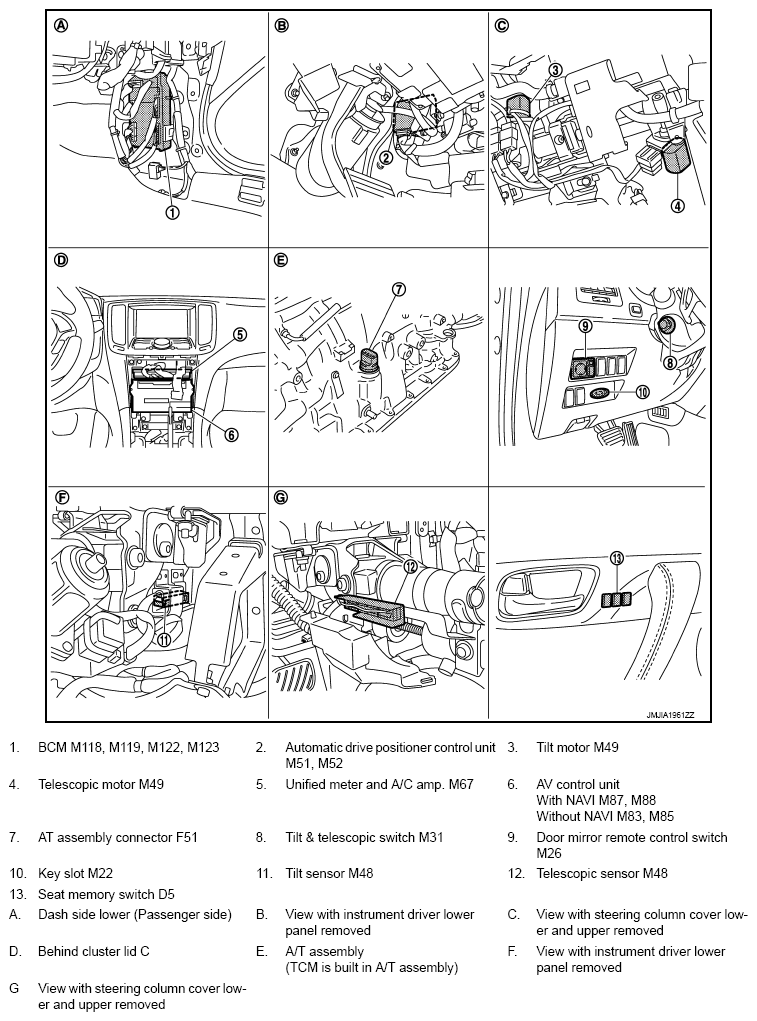

Fig 1: Intelligent Key Interlock Function Components Location (1 Of 2)
G08226830Courtesy of NISSAN NORTH AMERICA, INC.

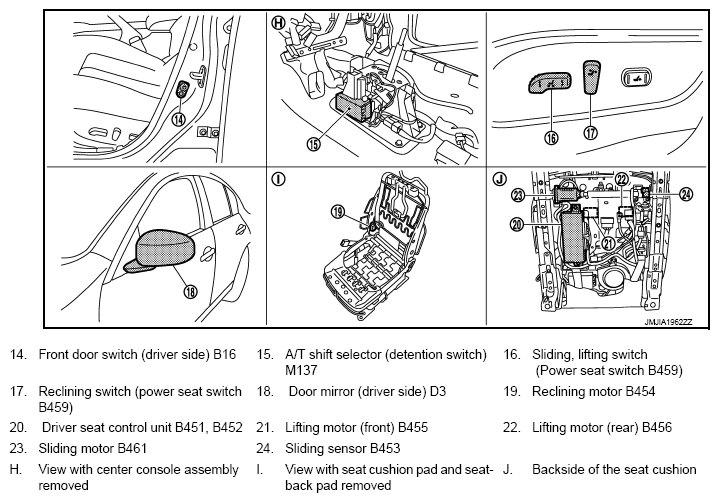

Fig 2: Intelligent Key Interlock Function Components Location (2 Of 2)
G08226831Courtesy of NISSAN NORTH AMERICA, INC.
