With Continuous Damping Control

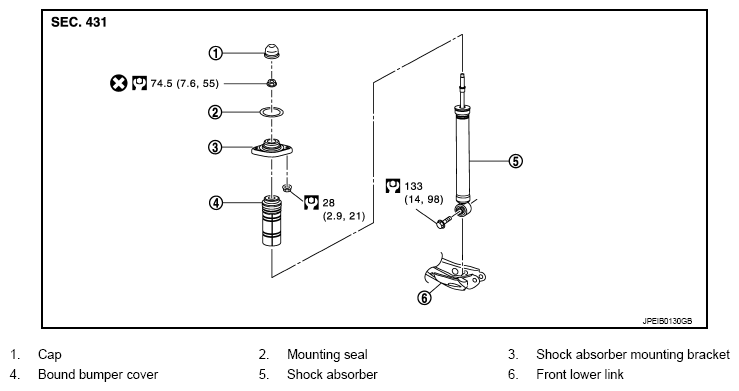

Fig 1: Exploded View Of Rear Shock Absorber With Torque Specifications (With Continuous Damping Control)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
