Exploded View

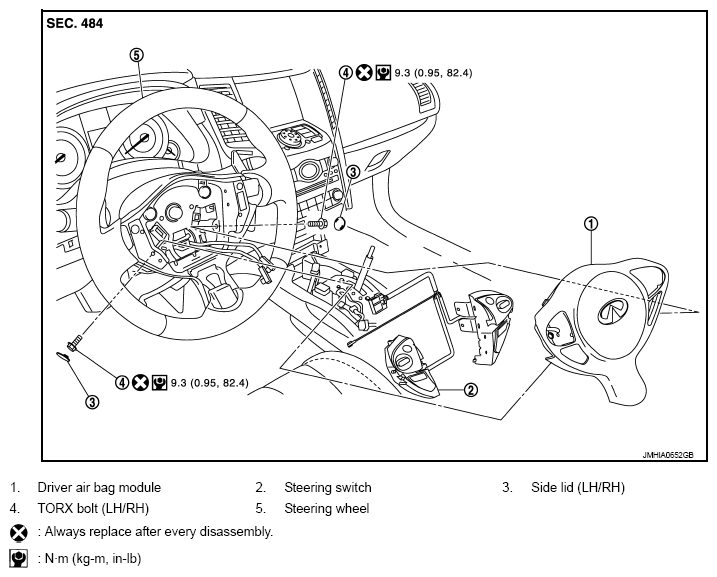

Fig 1: Exploded View Of Driver Air Bag Module With Torque Specifications
G08226092Courtesy of NISSAN NORTH AMERICA, INC.
