MULTI AV SYSTEM : System Diagram

WARNING: This page is about a different car, the 2011 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

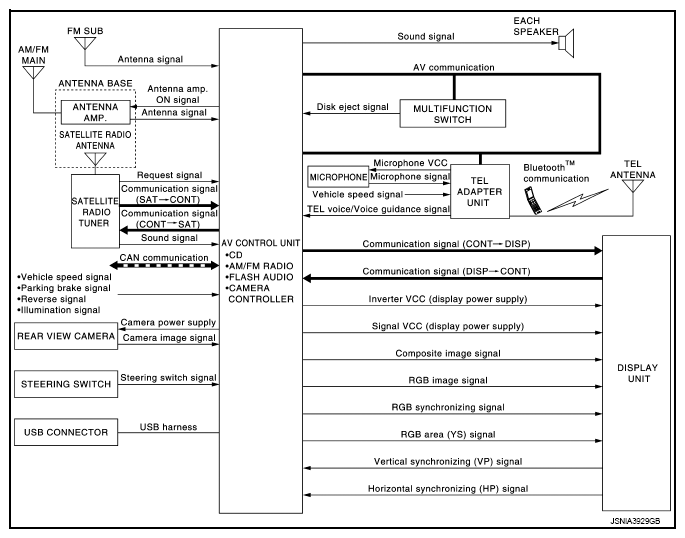

Fig 1: Multi AV System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
An antenna base integrated with radio antenna and satellite radio antenna is adopted.

Fig 2: Radio And Satellite Radio Antenna Signal Communication Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
