Starting Procedure

WARNING: This page is about a different car, the 2011 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Turn the audio system OFF.
While pressing the "SETTING" button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
- Shifting from current screen to previous screen is performed by pressing "BACK" button.

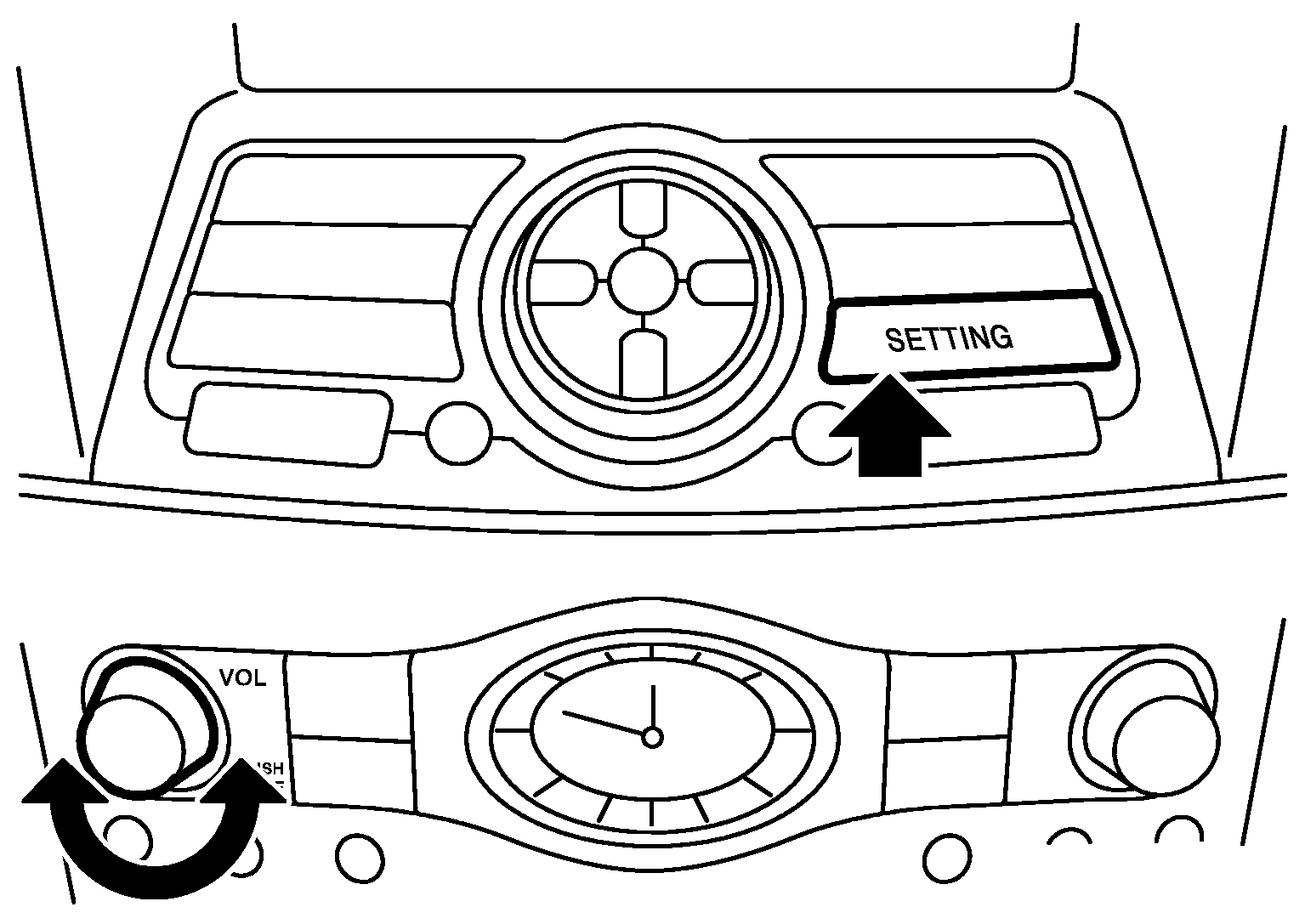

  Fig 1: Locating SETTING Button And Turn Volume Control Dial
  Courtesy of NISSAN MOTOR CO., U.S.A.
The trouble diagnosis initial screen is displayed, and then the items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected.

Fig 2: System Diagnostic Menu Screen Display - Confirmation/Adjustment
Courtesy of NISSAN MOTOR CO., U.S.A.
