Control System

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

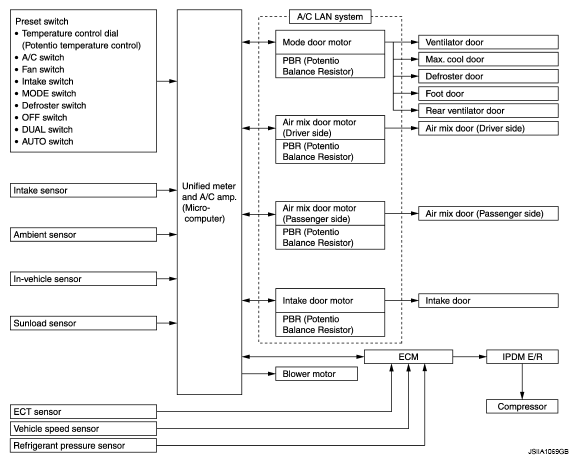

The control system consists of input sensors, switches, unified meter and A/C amp. (microcomputer) and outputs. The relationship of these components is as shown in the figure below:

Fig 1: Identifying Ventilation Temperature Separately Control System Diagram
G05727710Courtesy of NISSAN MOTOR CO., U.S.A.
