AWD: Exploded View

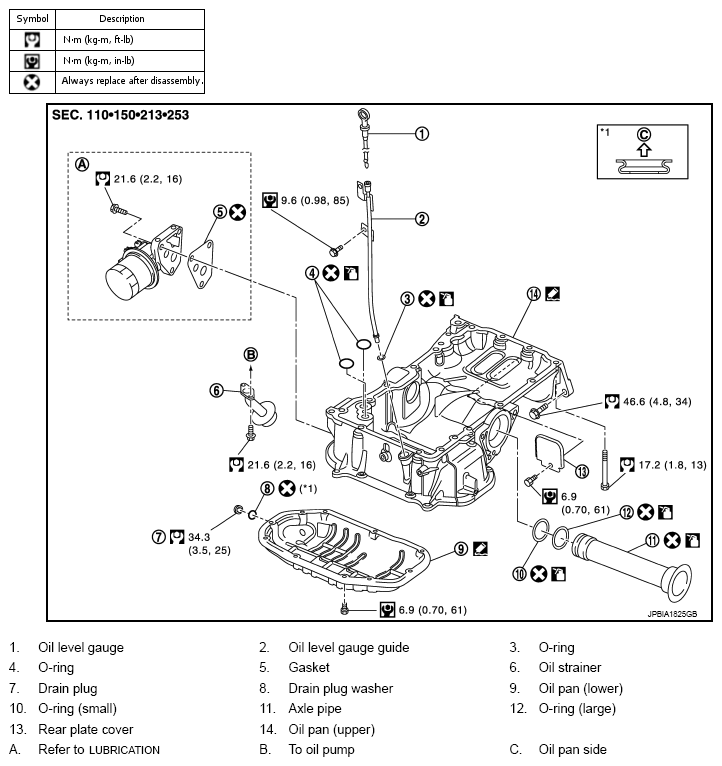

Fig 1: Exploded View Of Oil Pan (Upper) And Oil Strainer (AWD) With Torque Specifications
G07164559Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
