Passenger Compartment

NOTE: Instrument panel and passenger area fuse block are located under left side of instrument panel. See Fig 1.

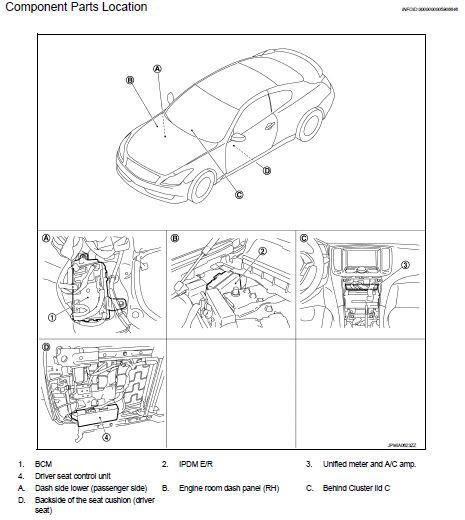

Fig 1: Locating Instrument Panel Control Modules, Units & Fuse Block/Junction Box
G00590127Courtesy of NISSAN MOTOR CO., U.S.A.

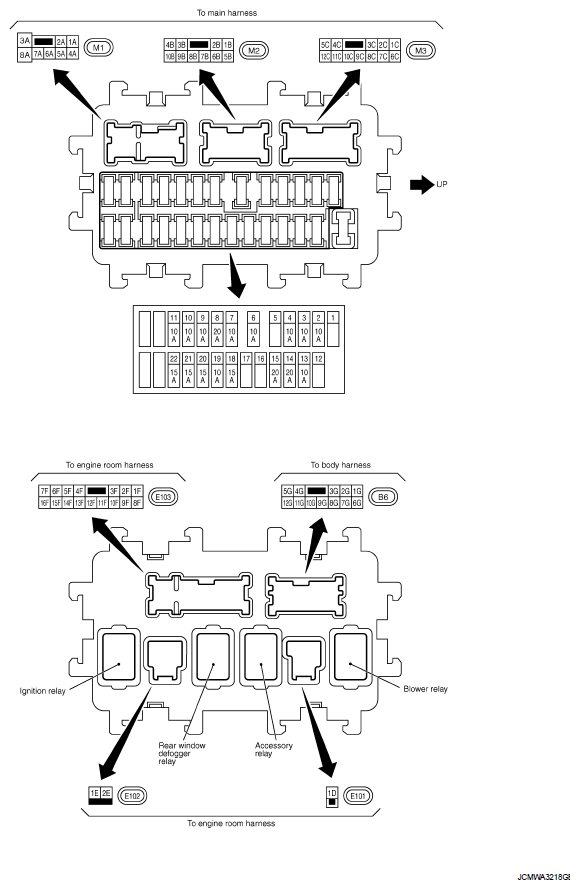

Fig 2: Identifying Instrument Panel Junction Block Components
G06296094Courtesy of NISSAN MOTOR CO., U.S.A.
INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay
Rear Window Defogger Relay
Accessory Relay
Blower Relay
