Component Parts Location

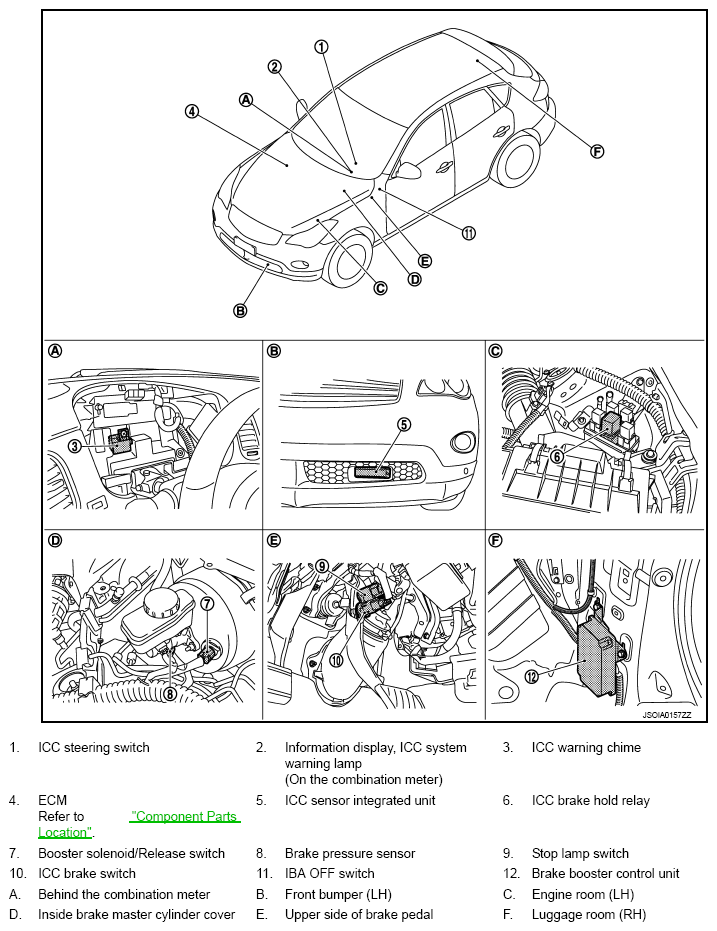

Fig 1: Brake Assist (With Preview Function) Components Location
G08194286Courtesy of NISSAN NORTH AMERICA, INC.
