EX35 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System
>>
Ecu Diagnosis Information
>>
Body Control Module (BCM)
>>
Reference Value
>>
Terminal Layout
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminal Layout

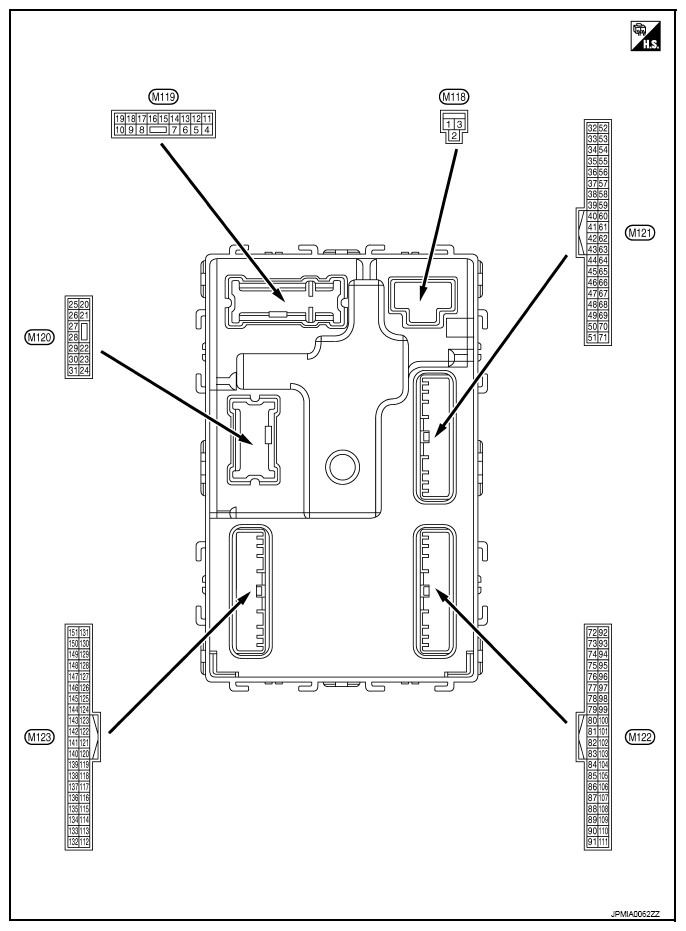

Fig 1: Body Control Module (BCM) Terminal Layout
Courtesy of NISSAN NORTH AMERICA, INC.
