Remote Keyless Entry Function: Component Parts Location

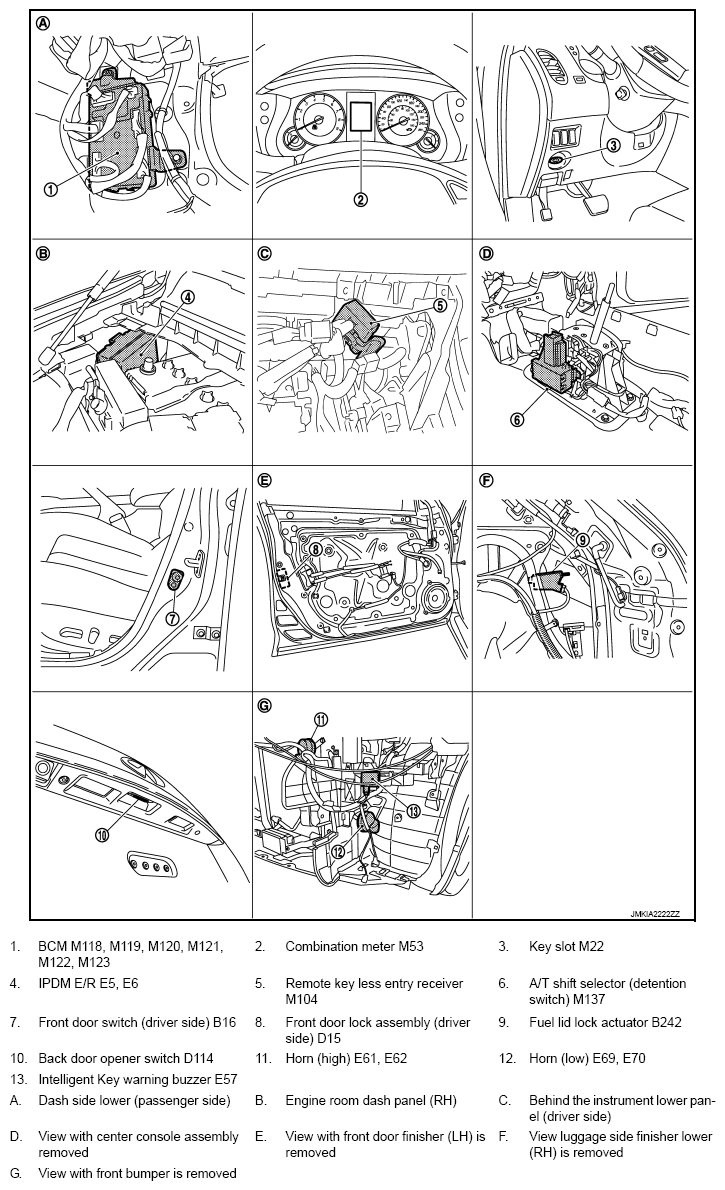

Fig 1: Remote Keyless Entry Function Components Location (1 Of 2)
G08195925Courtesy of NISSAN NORTH AMERICA, INC.

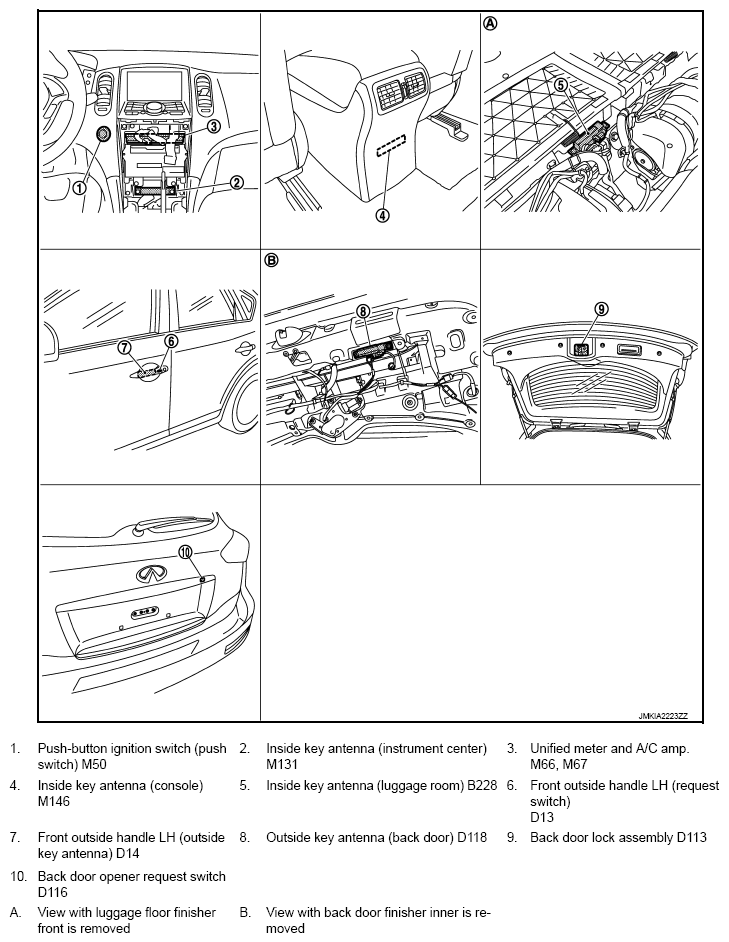

Fig 2: Remote Keyless Entry Function Components Location (2 Of 2)
G08195926Courtesy of NISSAN NORTH AMERICA, INC.
