EX35 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Security Control System
>>
System Description
>>
INFINITI Vehicle Immobilizer System-NATS
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

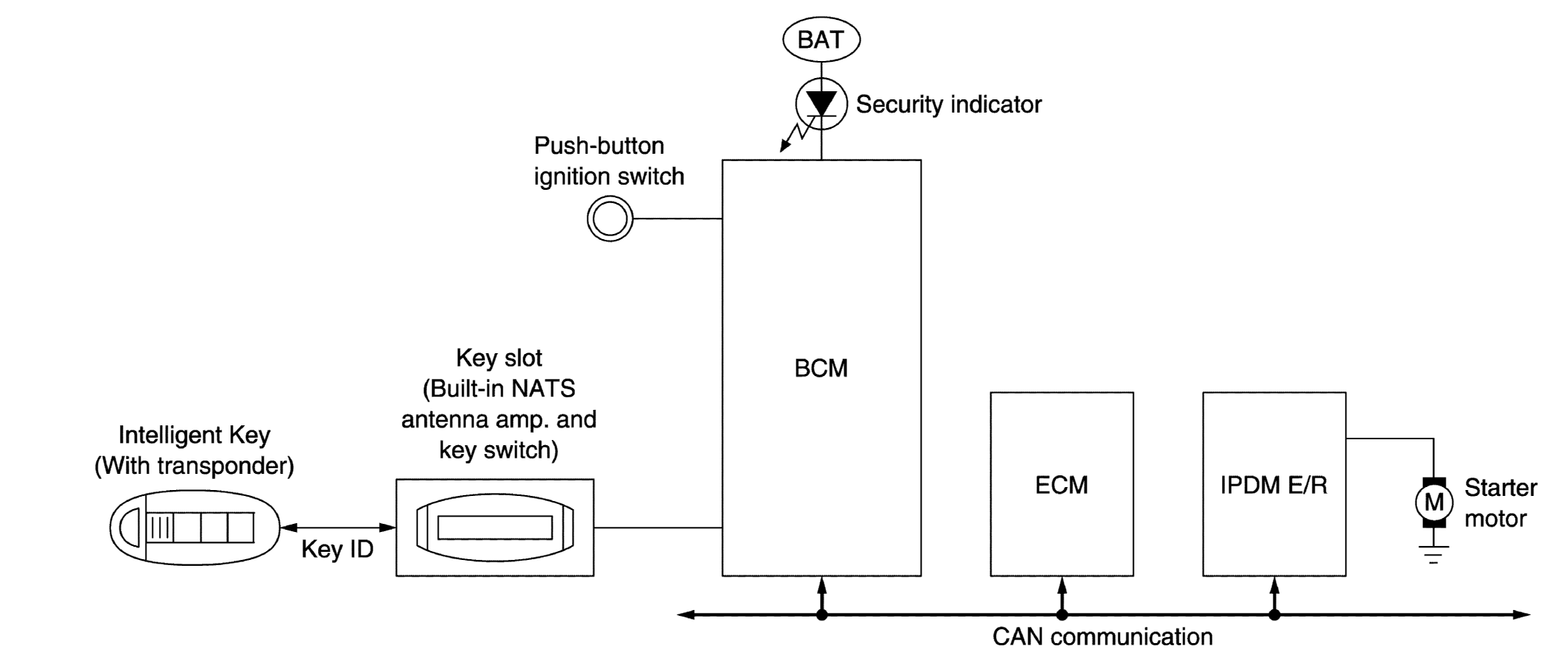

Fig 1: Infiniti Vehicle Immobilizer System Diagram (NATS)
Courtesy of NISSAN NORTH AMERICA, INC.
