2WD : Exploded View

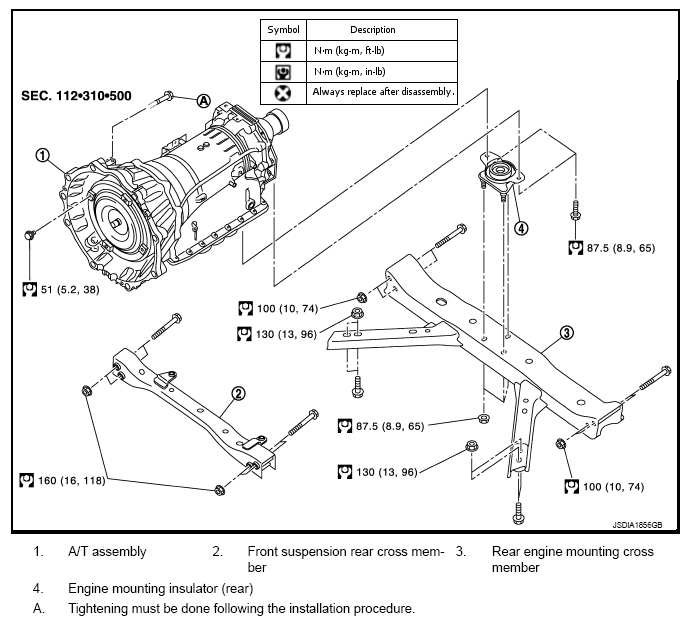

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (2WD)
G07023106Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
