Component Parts Location

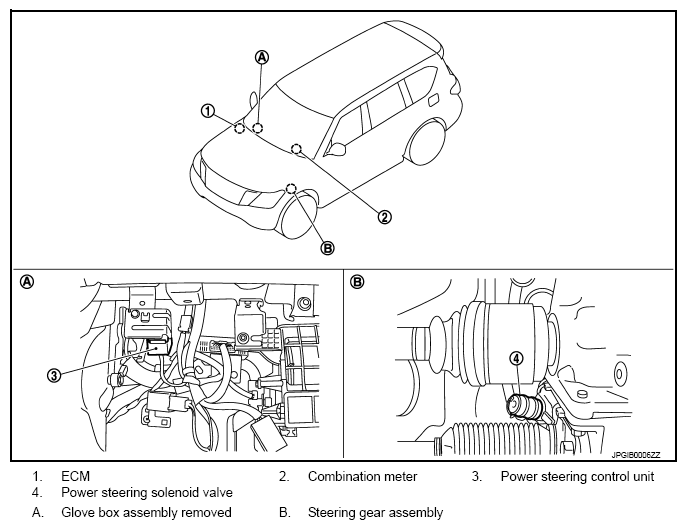

Fig 1: Identifying Power Steering Control System Components Location
G07025307Courtesy of NISSAN MOTOR CO., U.S.A.
