Engine Control System: Wiring Diagram

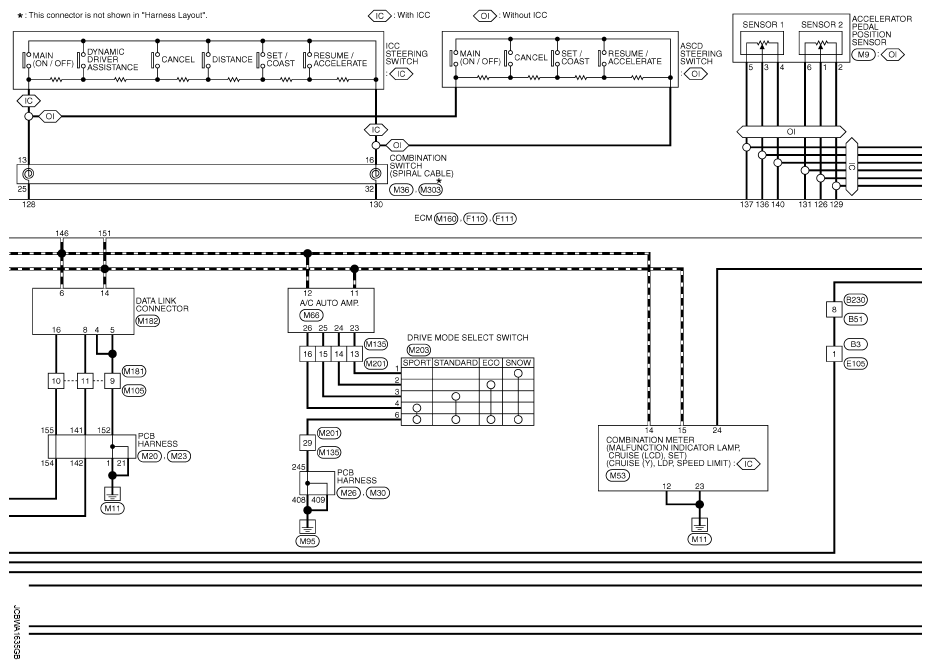

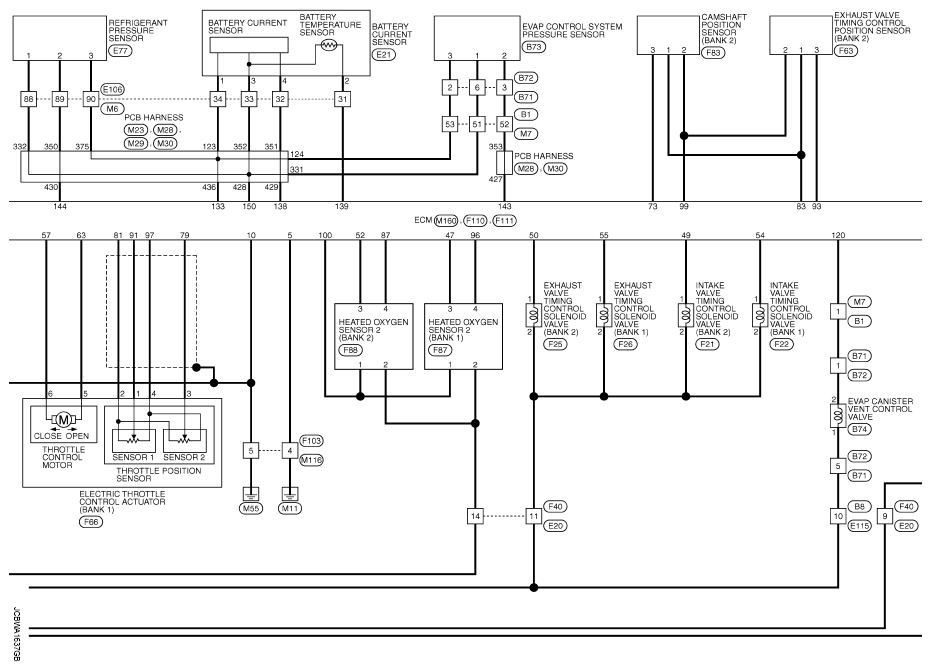

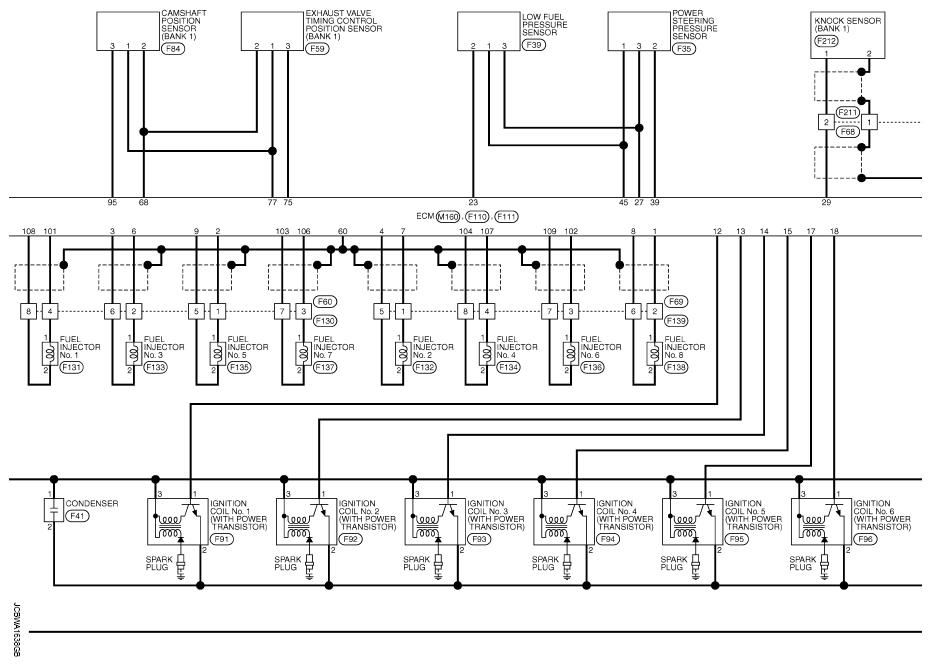

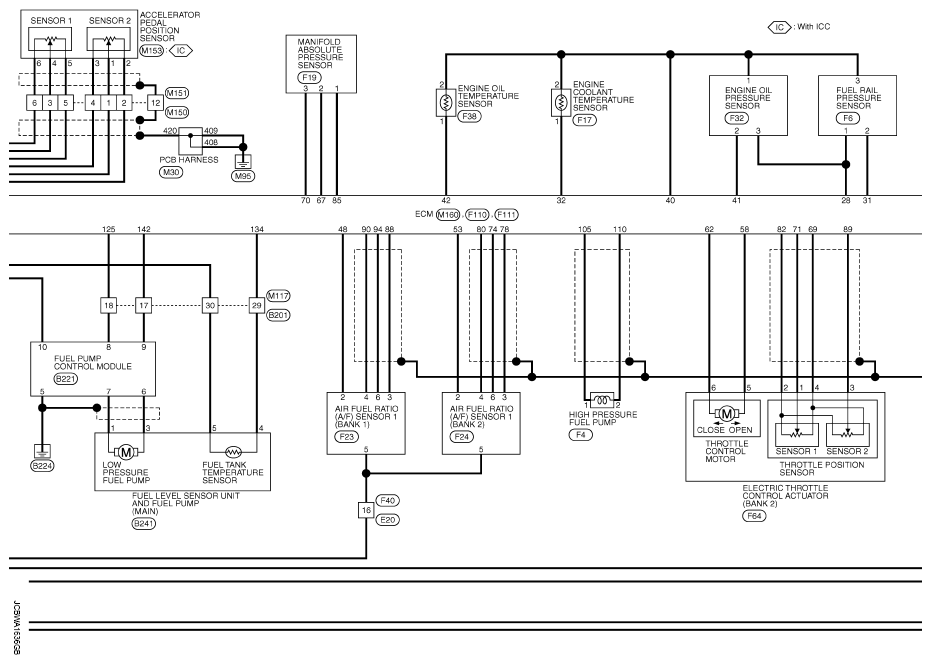

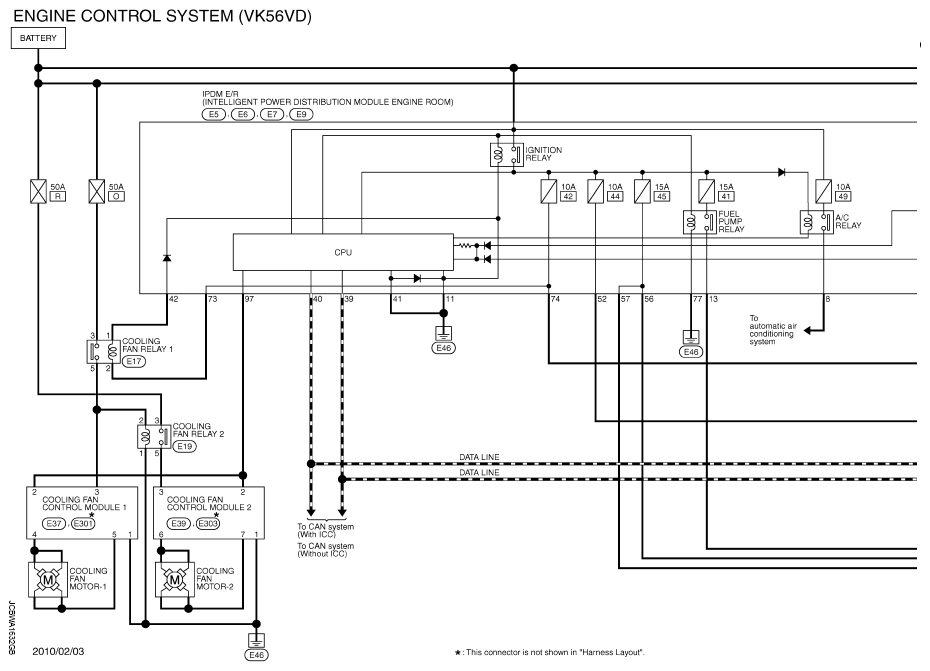

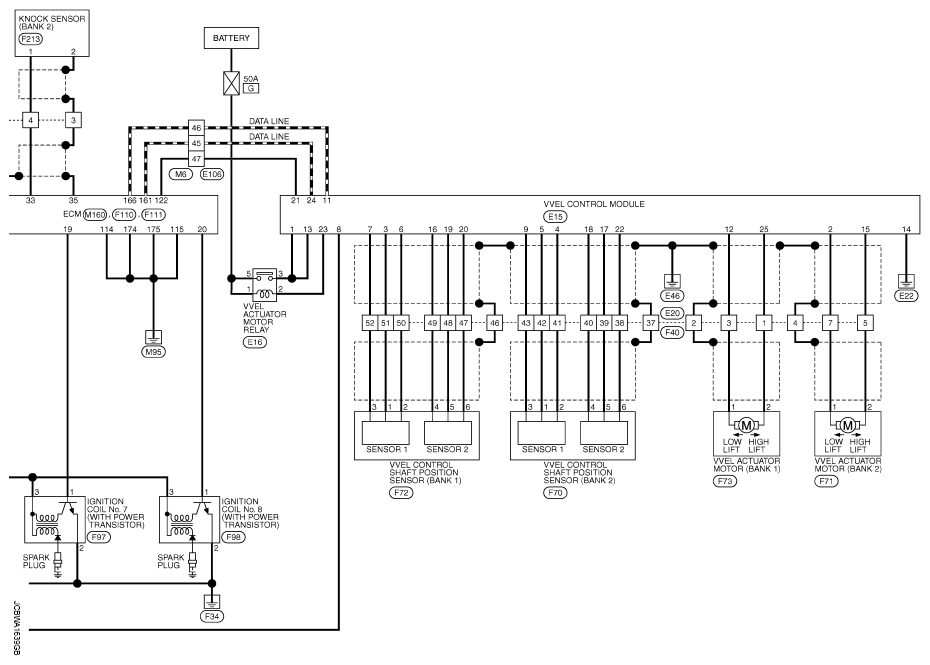

Fig 1: Engine Control System Wiring Diagram (1 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.

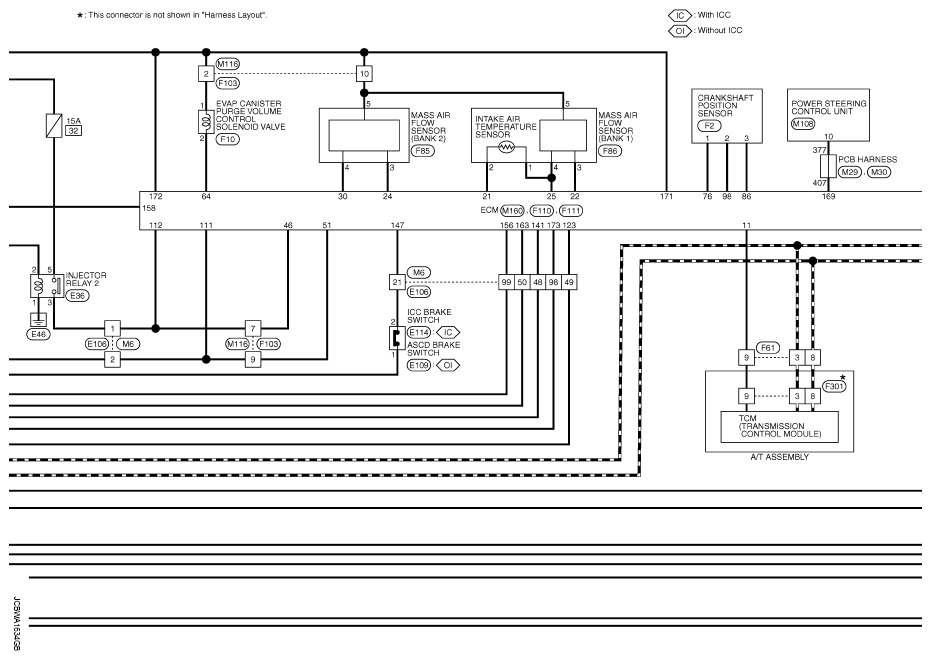

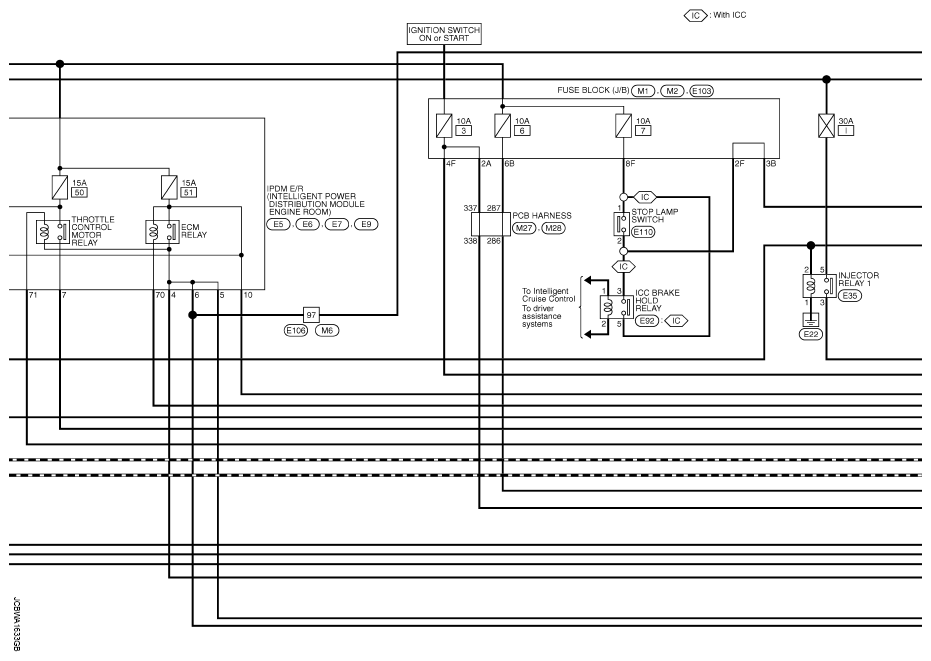

Fig 2: Engine Control System Wiring Diagram (2 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Engine Control System Wiring Diagram (3 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Engine Control System Wiring Diagram (4 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Engine Control System Wiring Diagram (5 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Engine Control System Wiring Diagram (6 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Engine Control System Wiring Diagram (7 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Engine Control System Wiring Diagram (8 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.

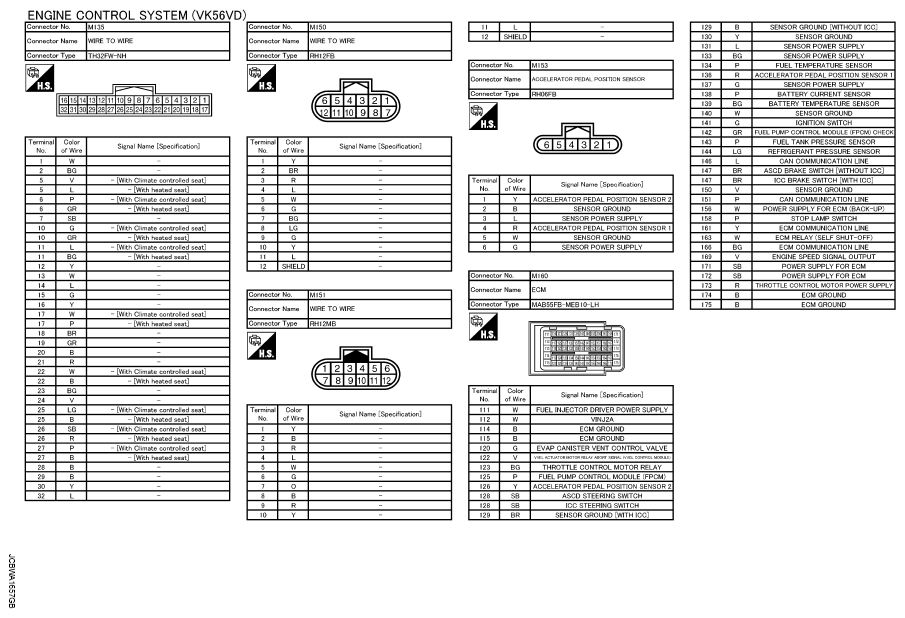

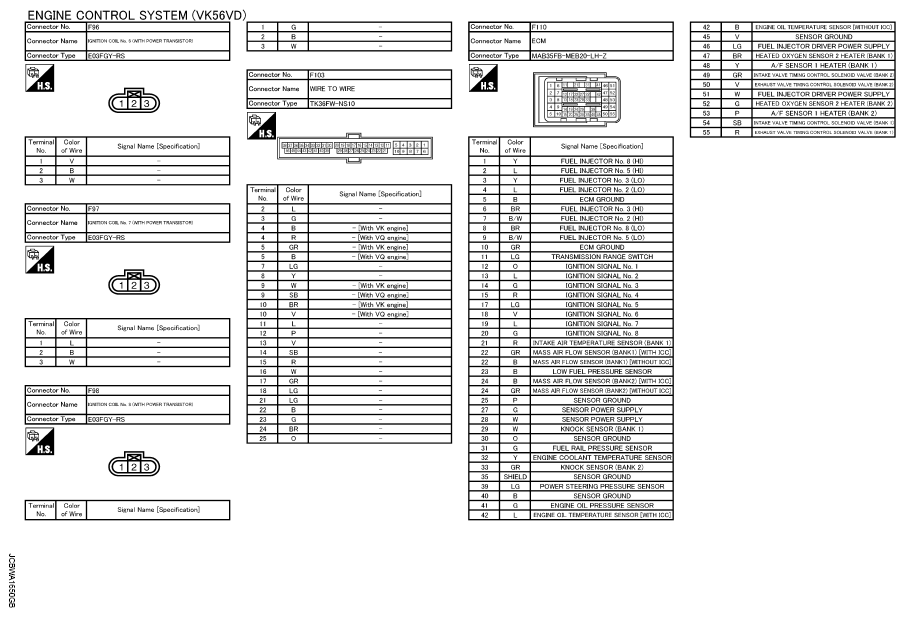

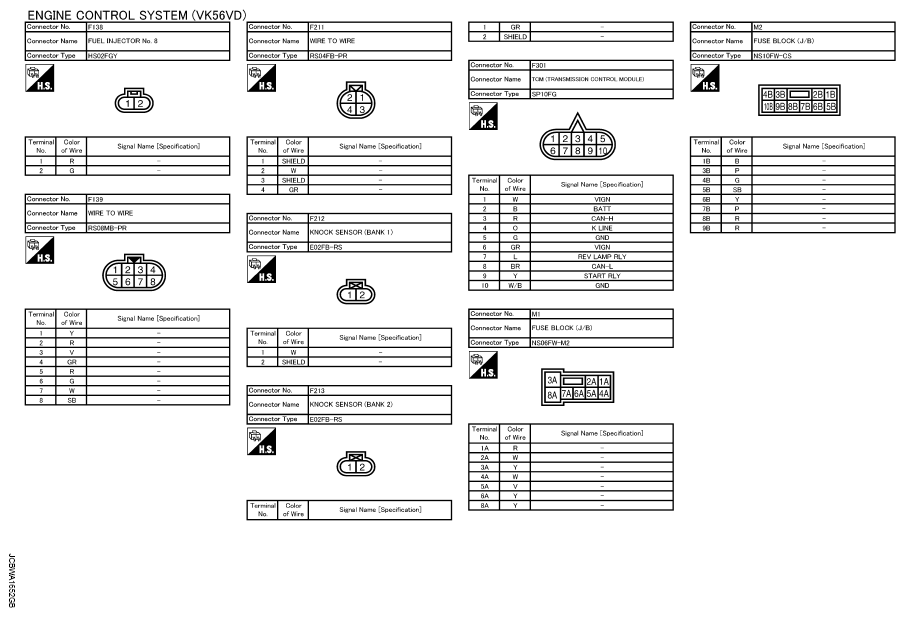

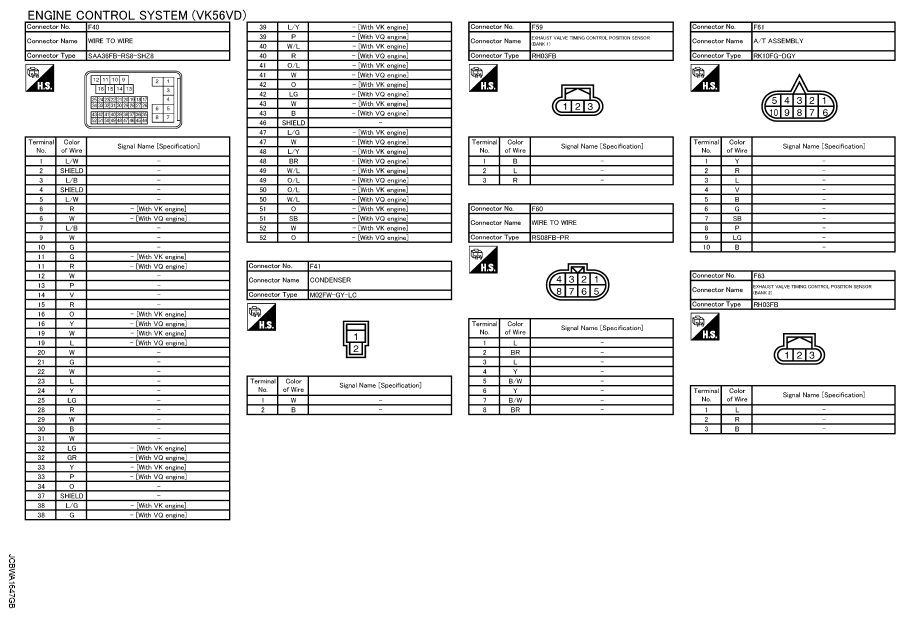

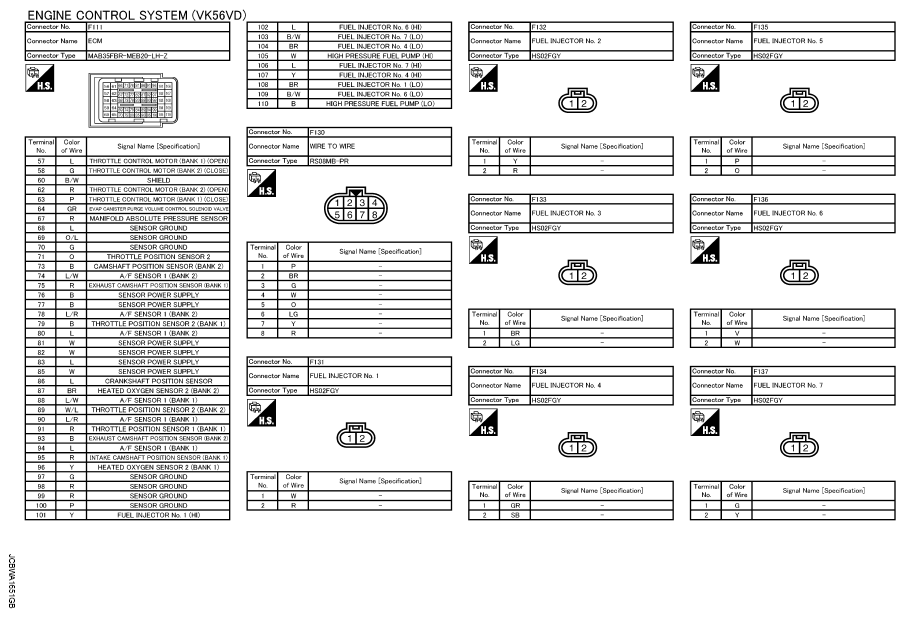

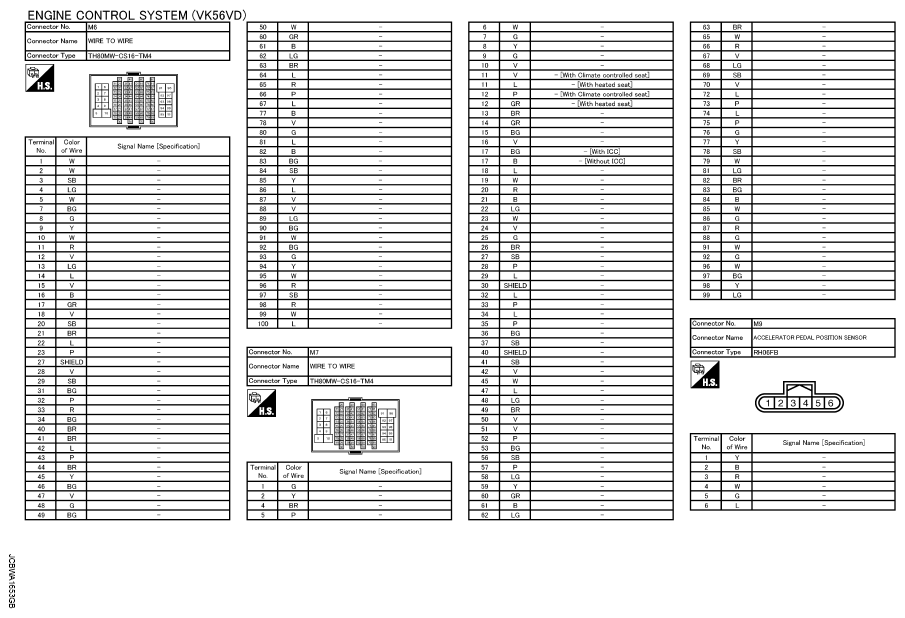

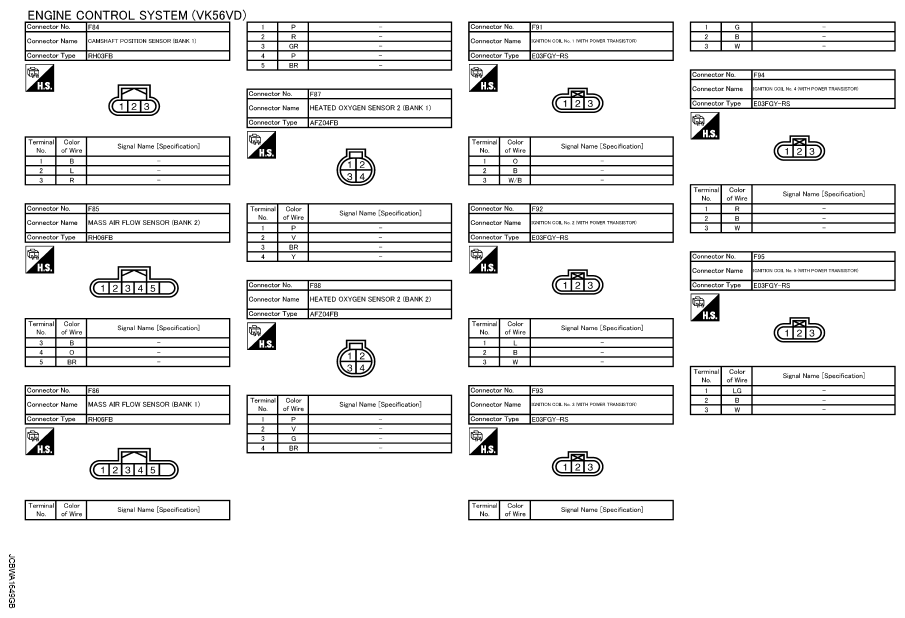

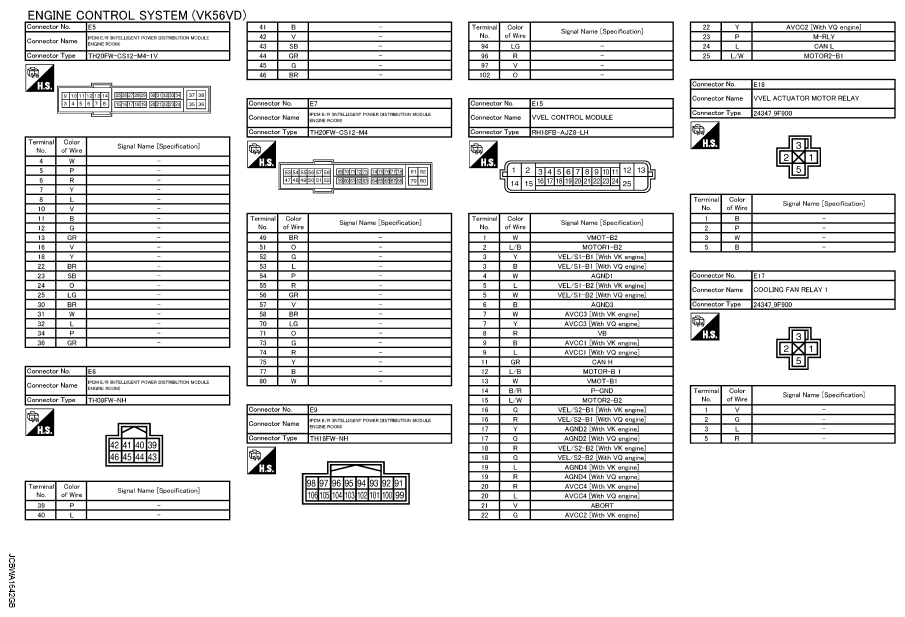

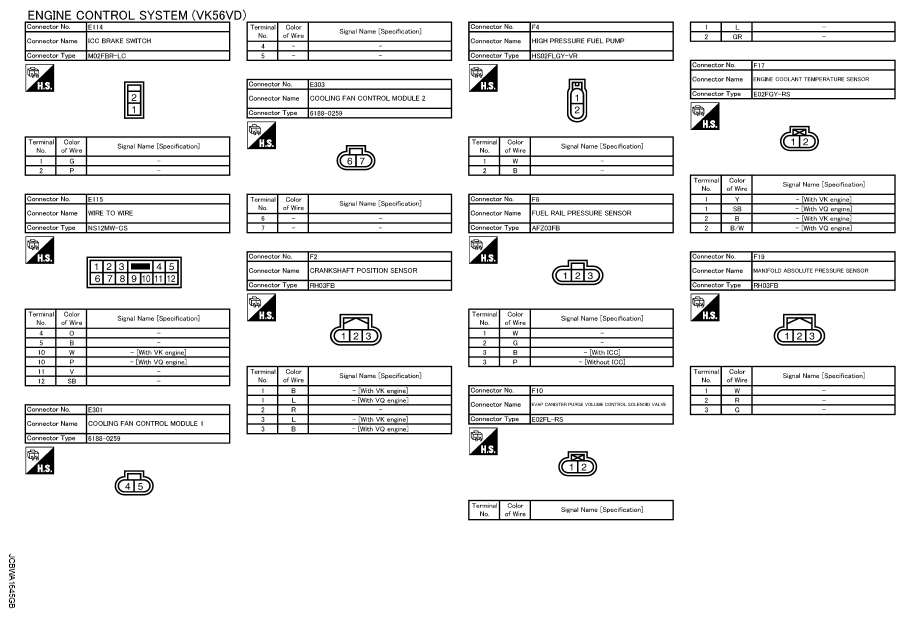

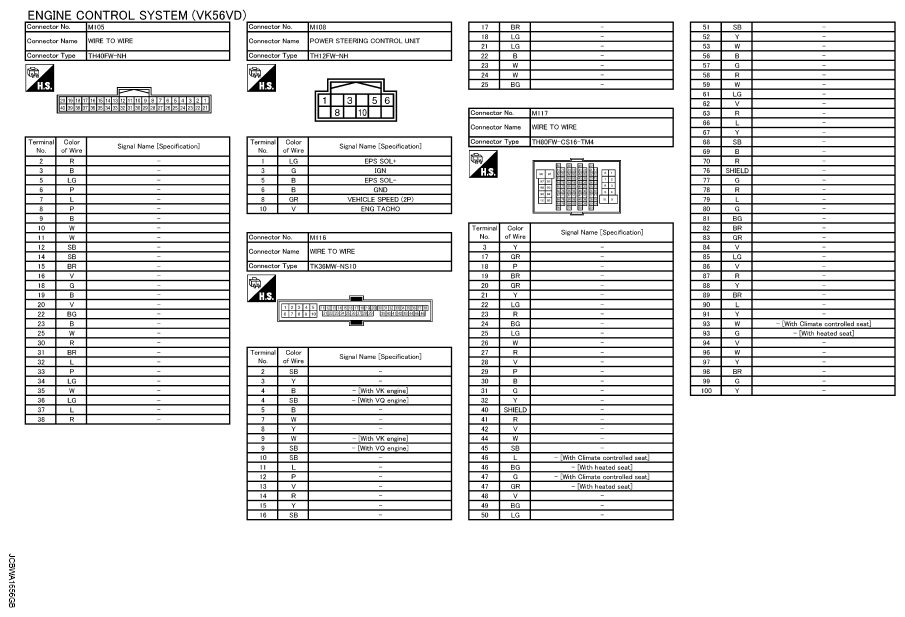

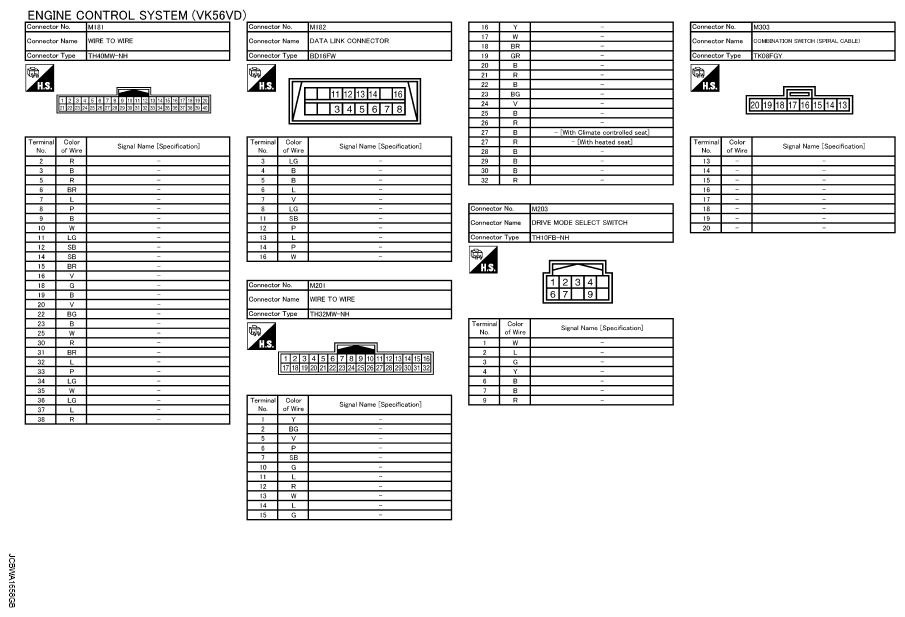

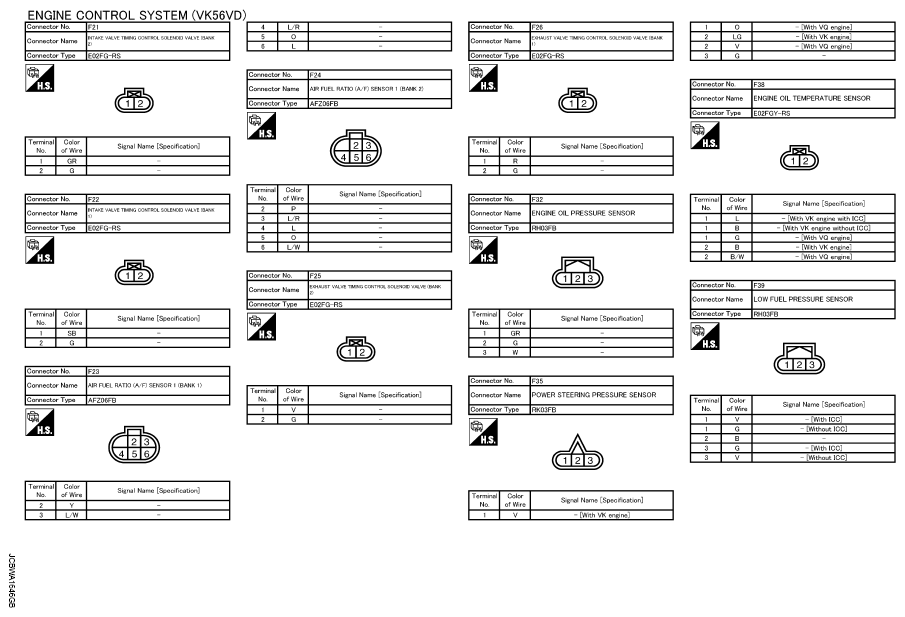

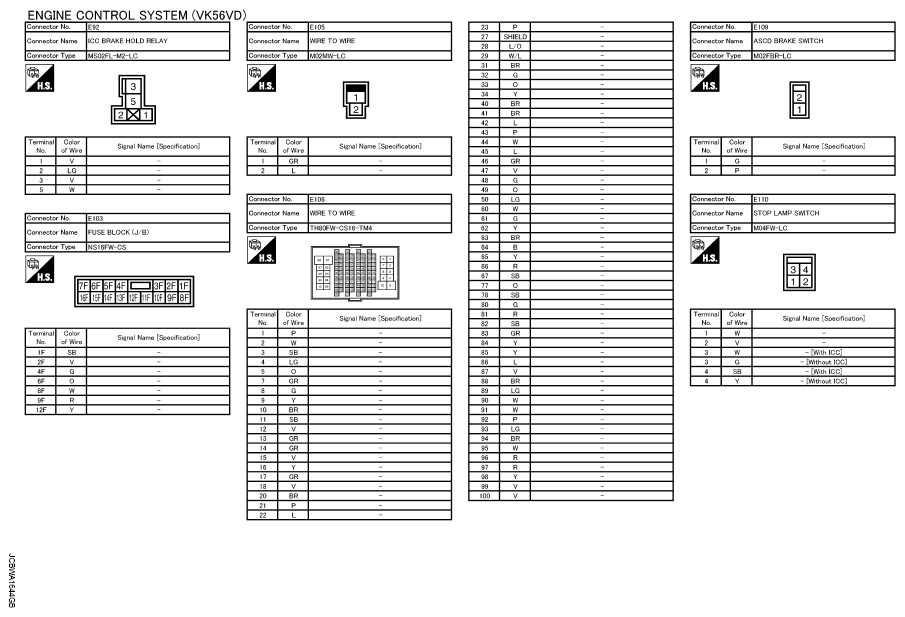

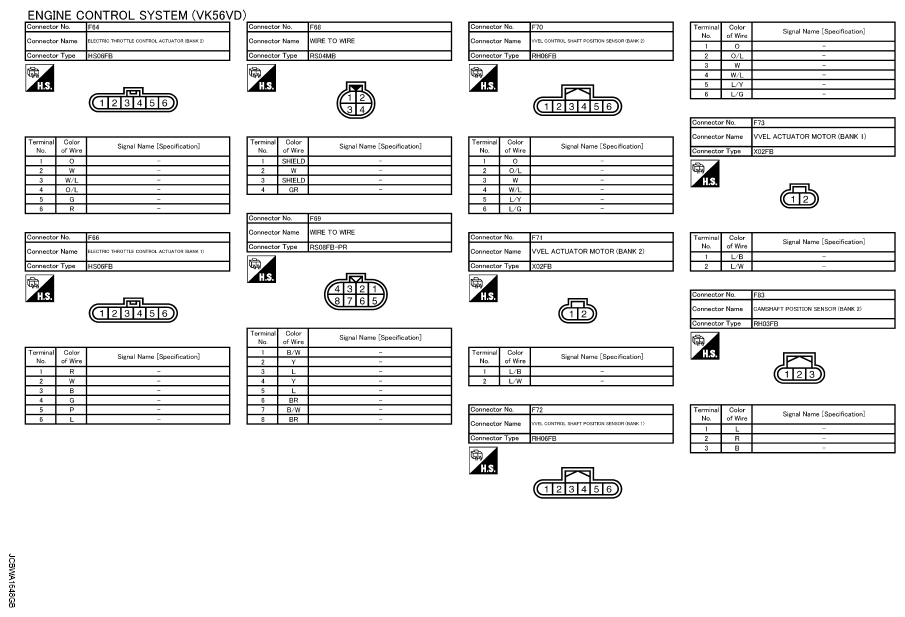

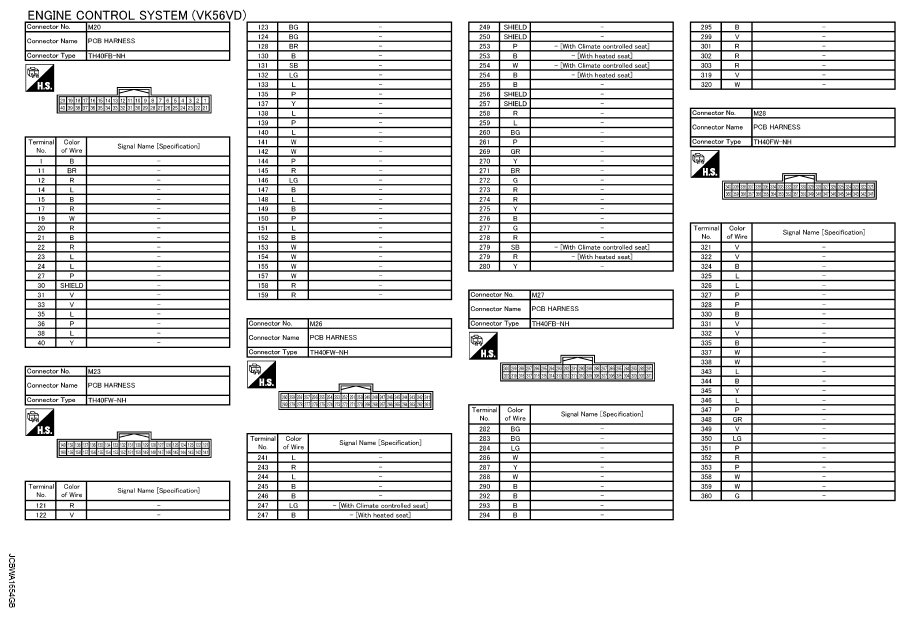

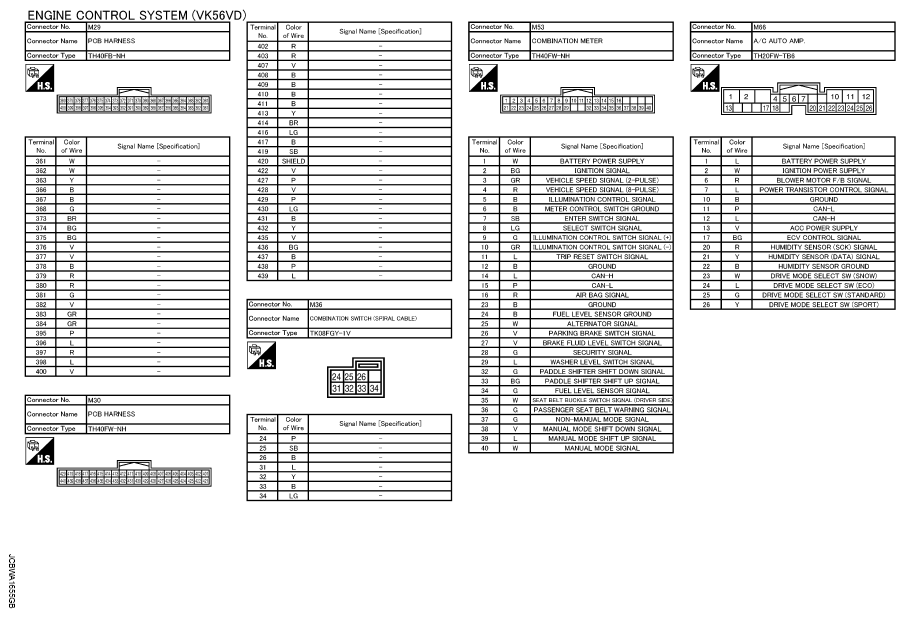

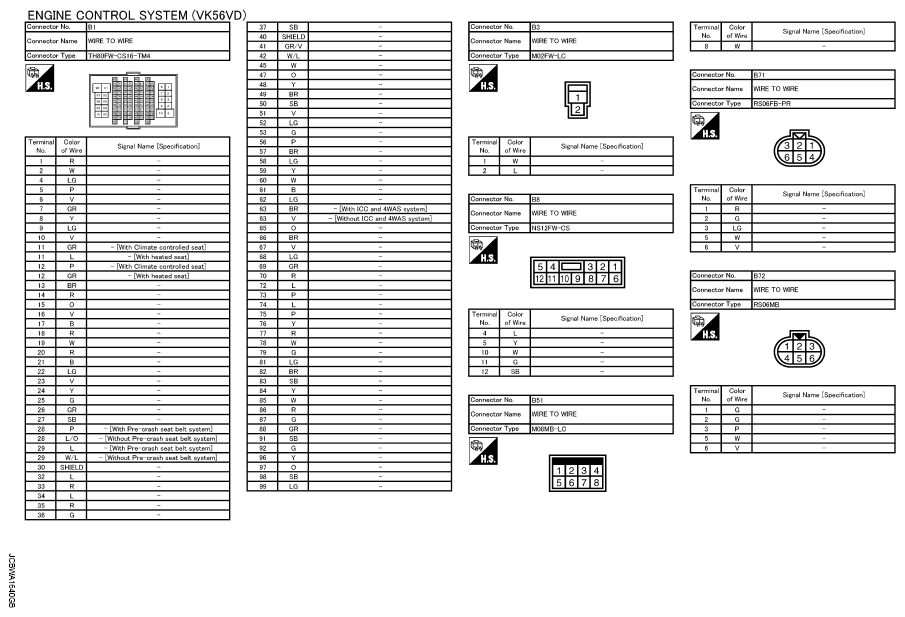

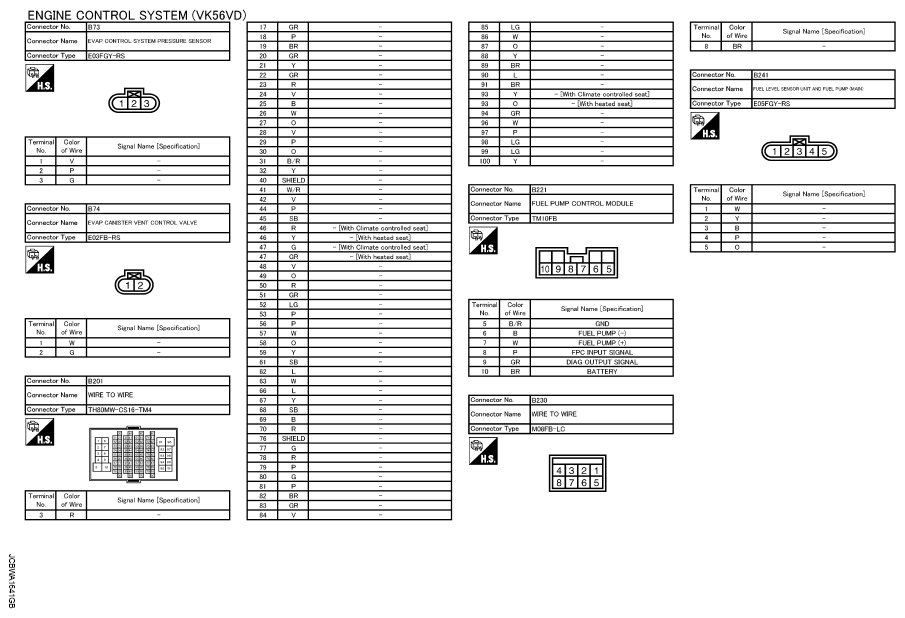

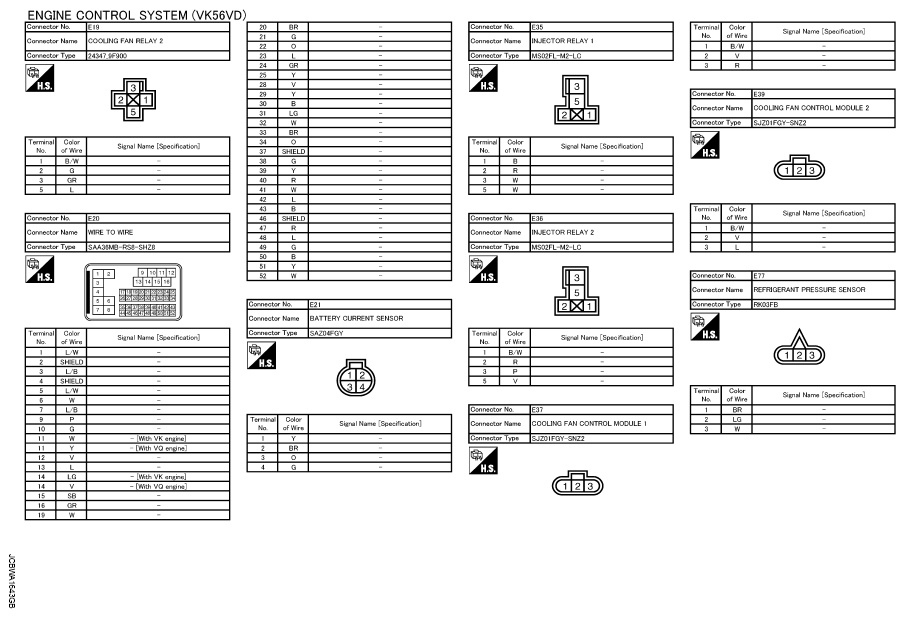

Fig 9: Engine Control System Connector Terminals Reference Chart (1 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Engine Control System Connector Terminals Reference Chart (2 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Engine Control System Connector Terminals Reference Chart (3 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Engine Control System Connector Terminals Reference Chart (4 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 13: Engine Control System Connector Terminals Reference Chart (5 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Engine Control System Connector Terminals Reference Chart (6 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 15: Engine Control System Connector Terminals Reference Chart (7 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 16: Engine Control System Connector Terminals Reference Chart (8 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 17: Engine Control System Connector Terminals Reference Chart (9 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Engine Control System Connector Terminals Reference Chart (10 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Engine Control System Connector Terminals Reference Chart (11 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 20: Engine Control System Connector Terminals Reference Chart (12 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 21: Engine Control System Connector Terminals Reference Chart (13 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 22: Engine Control System Connector Terminals Reference Chart (14 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 23: Engine Control System Connector Terminals Reference Chart (15 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 24: Engine Control System Connector Terminals Reference Chart (16 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 25: Engine Control System Connector Terminals Reference Chart (17 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 26: Engine Control System Connector Terminals Reference Chart (18 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 27: Engine Control System Connector Terminals Reference Chart (19 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
