Engine Lubrication System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Lubrication System

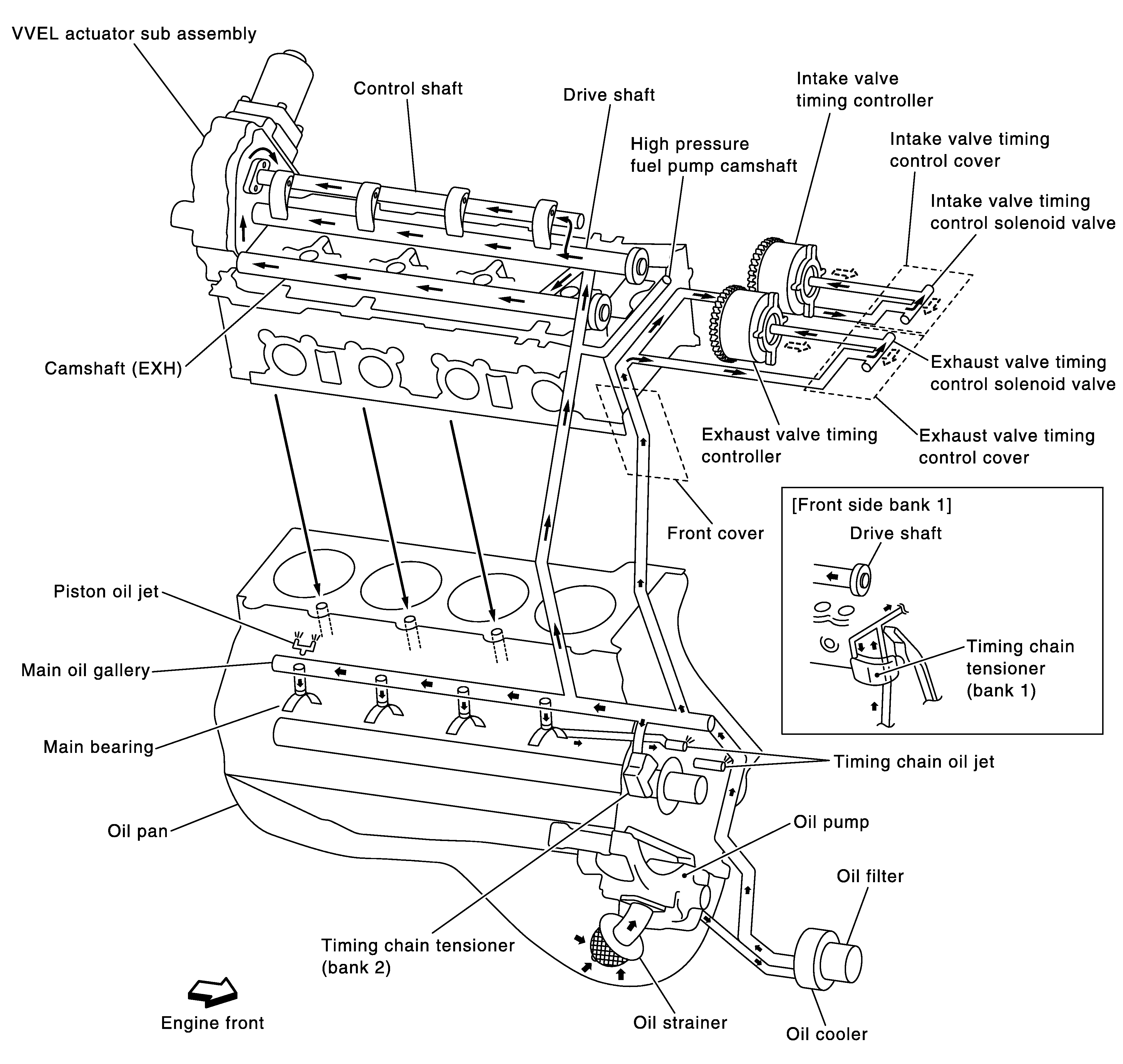

Fig 1: Engine Lubrication System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
