Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light to loop wire as shown.

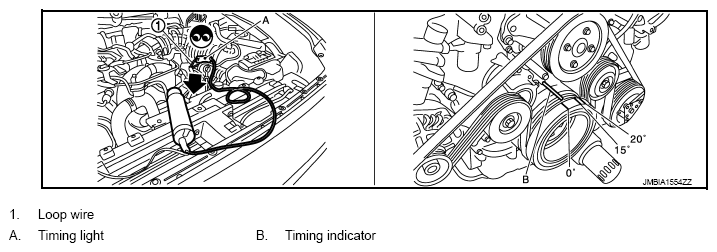

      Fig 1: Checking Ignition Timing
      G07020519Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check ignition timing.

      INSPECTION END
