Power Control System -- M37/M56
>>
[IPDM E/R]
>>
System Description
>>
System
>>
Relay Control System
>>
RELAY CONTROL SYSTEM : System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
RELAY CONTROL SYSTEM : System Diagram

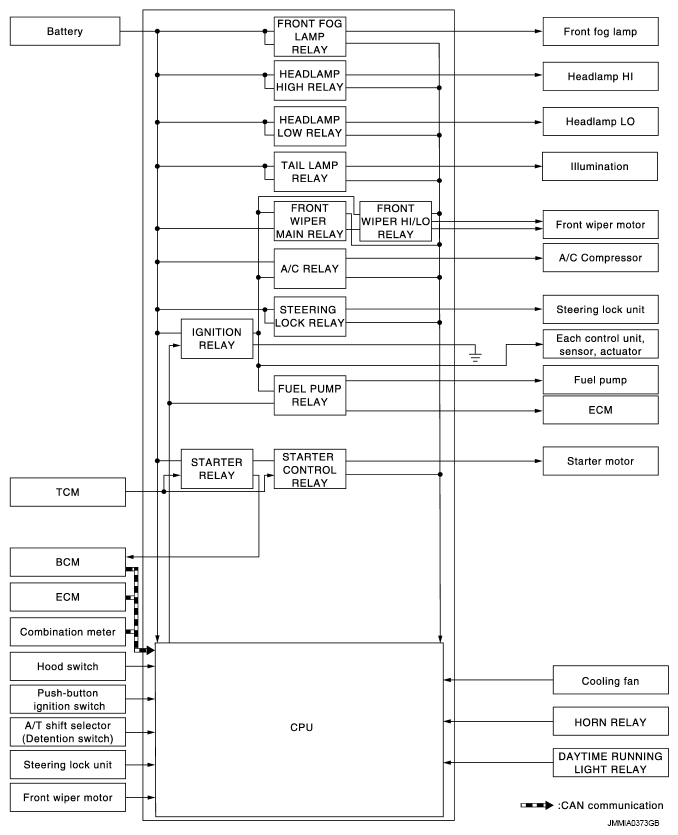

Fig 1: Relay Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
